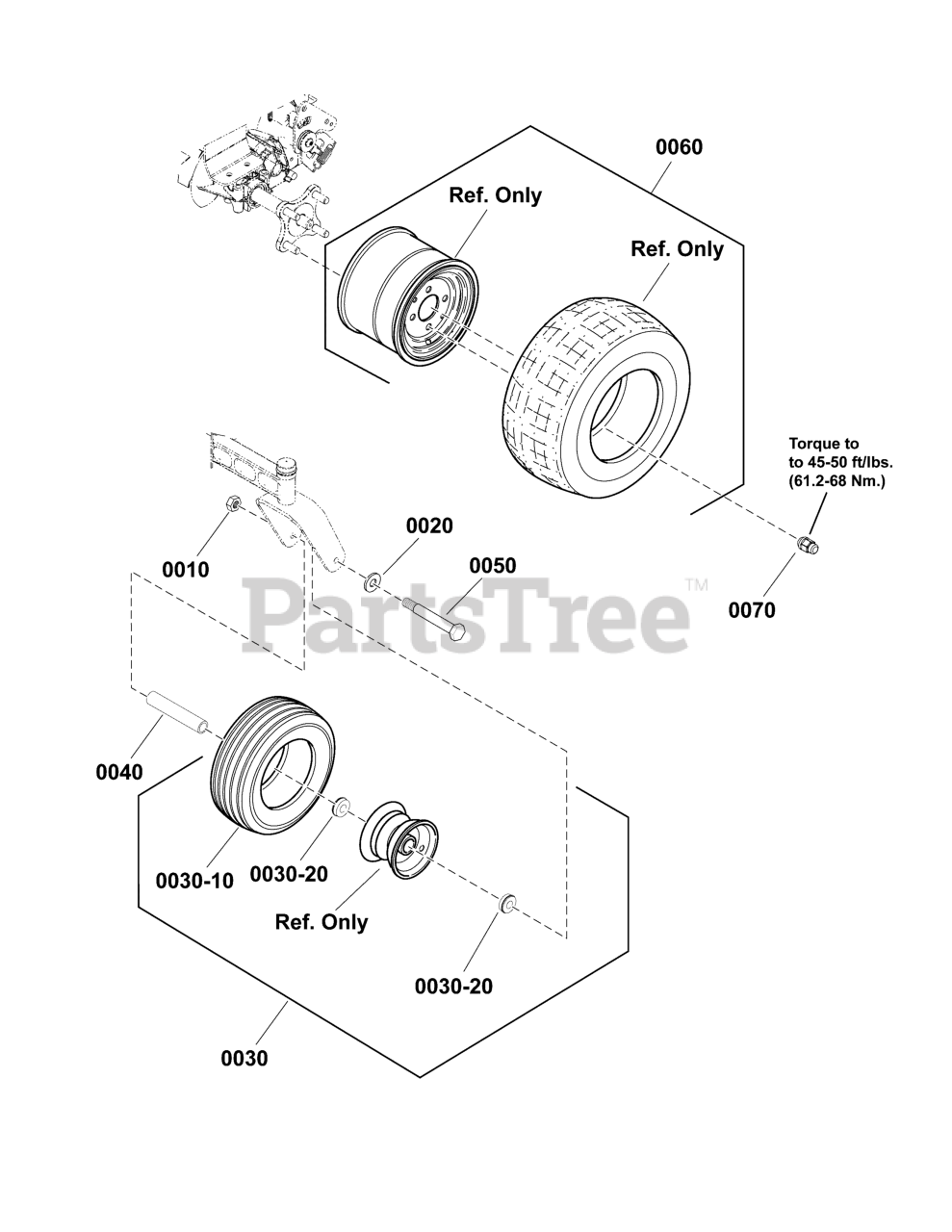

400S (5901990) - Ferris 400S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton Wheel and Tire Group Parts Diagram

400S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton

Wheel and Tire Group Parts Diagram

  • Title

0010

Ferris 1930650

NUT-HEX FLANGE 7/16-14 TWO WAY LK GA BLK
(Superseded to 1930650SM)

$5.49

$

In Stock, only 4 left!

0

0020

Ferris 80004028

WSHR,7/16 ID X .065 THK, FLAT,ZINC/CLEAR
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

0030

Ferris 5109054

TIRE ASM, 11 X 6-5,BLK, KENDA
(Superseded to 5109054FS)

$71.99

$

Usually ships in 2-12 days

0

0030-10

Ferris 80080750

TIRE, 11X6-5
(Superseded to 84004709)

$70.99

$

Usually ships in 2-12 days

0

0030-20

Ferris 80082605

BEARING, BALL, 5/8" ID, FLANGE
(Superseded to 84003829)

Note: (2 per tire)

$10.99

$

Usually ships in 2-12 days

0

0040

Ferris 80081657

TUBE, CASTER WHEEL
(Superseded to 80081657FS)

$3.99

$

In Stock, Qty 5

0

0050

Ferris 80082007

HHCS, 7/16-14X7.0 GRADE 5
(Superseded to 84003828)

$5.99

$

In Stock, only 1 left!

0

0060

Ferris 5109058

TIRE ASM, 20 X 10-10, K513, BLK, KENDA
(Superseded to 5109058FS)

$175.99

$

Usually ships in 2-12 days

0

0070

Ferris 5108802FS

NUT

Note: (Black Lug Nut)

$3.99

$

Usually ships in 2-12 days

0

0070

Ferris 5020601SM

NUT, 1/2-20, FOR WHEEL BOLT SILVER

Note: (Silver Lug Nut)

$3.49

$

In Stock, Qty 20+

0
