400S (5901990) - Ferris 400S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton Fender Group Parts Diagram

400S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton

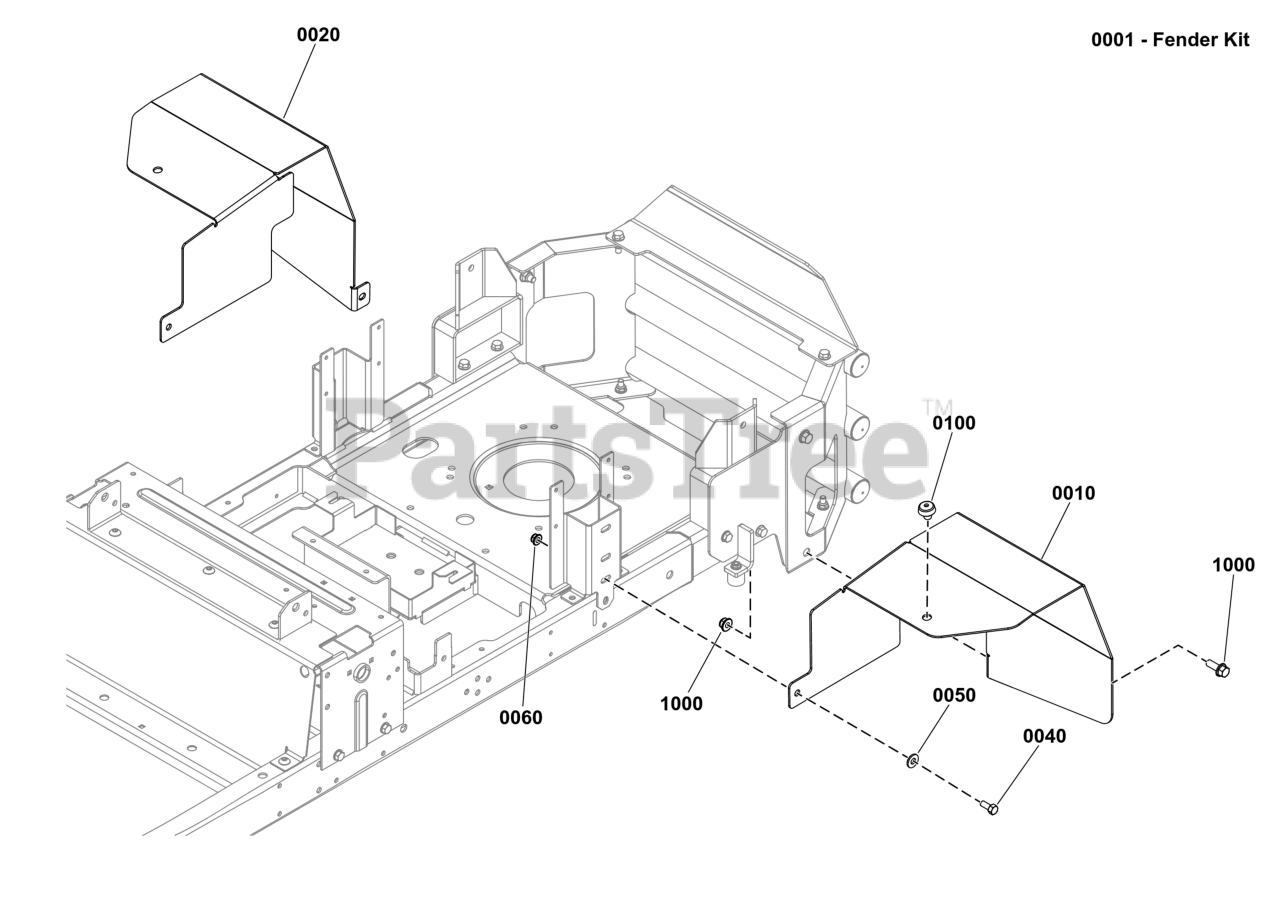

Fender Group Parts Diagram

  • Title
0001

Ferris 5601377

KIT, EU FENDERS, 400SCE

Note: (Refer to Note: *)

$260.99

$

Usually ships in 2-12 days

0

0010

PLATE, FENDER, LH, 400S - RED

$

$

Not available

0020

PLATE, FENDER, RH, 400S - RED

$

$

Not available

0040

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

0050

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 20+

0

0060

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0100

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

1000

Refer to: Rear Bumper Group

$

$

Not available
