400S (5901990) - Ferris 400S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton Electrical Group (Export Models) Parts Diagram

400S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton

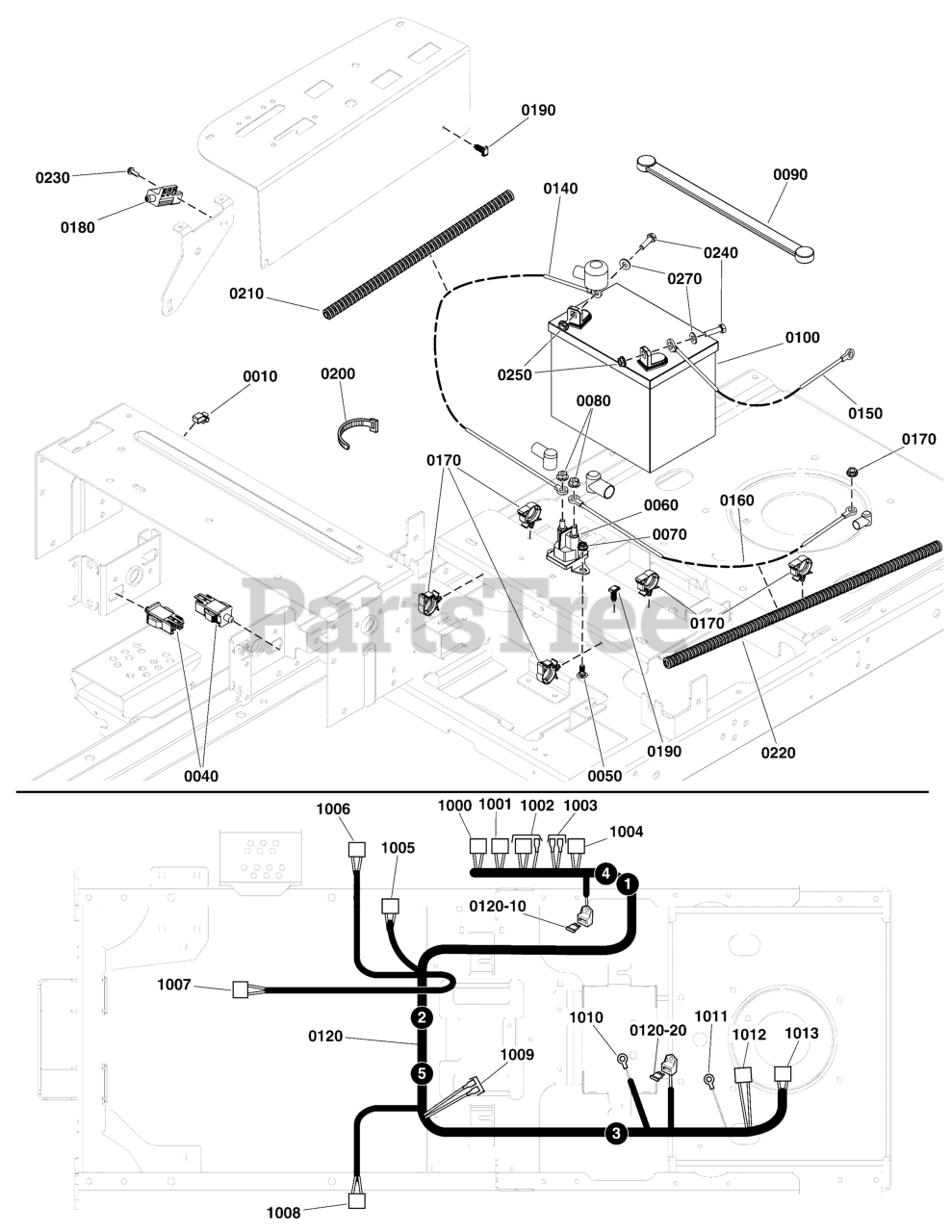

Electrical Group (Export Models) Parts Diagram

  • Title

0010

Ferris 2172434

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

0040

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

0050

Ferris 1960252

BOLT-RD HD SH SQ NK 1/4-20X0. 625 G5 BLK
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

0060

Ferris 1755382

SOLENOID, STD-BRACKET, 2-SPADE
(Superseded to 1755382FS)

$27.99

$

Usually ships in 2-12 days

0

0070

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0080

Ferris 80003921

NUT,1/4-20,KEPS,CONICAL WSHR,ZC/CL
(Superseded to 703061)

$3.49

$

In Stock, Qty 13

0

0090

Ferris 1722009

STRAP, BATTERY, 14 LONG, Rubber
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

0100

BATTERY, 12 Volt, 230CCA, Deka 8U1L

Note: (Refer to Note: *)

$

$

Not available

0120

Ferris 5105552

HARNESS,SMALL ZTR W/NEUTRAL SWITCH
(Superseded to 5105552FS)

$219.99

$

Usually ships in 2-12 days

0

0120-10

Ferris 5021603

FUSE, ATO-20 (20 AMP)(SV)
(Superseded to 5021603SM)

$4.99

$

In Stock, only 2 left!

0

0120-20

Ferris 5101935

FUSE, ATO-15 (15 AMP)(SV)
(Superseded to 5101935YP)

$4.49

$

Usually ships in 2-12 days

0

0140

Ferris 5047136

BATTERY CABLE, POS, 15, 1/4-5/16
(Superseded to 5047136SM)

$22.99

$

In Stock, only 1 left!

0

0150

Ferris 5047690

BATTERY CABLE, NEG, 14, 5/16-13/32
(Superseded to 5047690SM)

$16.99

$

Usually ships in 2-12 days

0

0160

Ferris 5023488

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5023488SM)

$27.99

$

Usually ships in 2-12 days

0

0170

Ferris 5104705

ROSEBUD LOOM CLIP
(Superseded to 5104705YP)

$2.49

$

Usually ships in 2-12 days

0

0180

Ferris 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 20+

0

0190

Ferris 5103761

FIR TREE MOUNT, PACKARD
(Superseded to 5103761YP)

$5.99

$

Usually ships in 2-12 days

0

0200

TIE, 7, Self Lock

$

$

Not available

0210

Ferris 5050927X13

WIRE LOOM, 3/8 ID X 13 IN

$

$

Currently unavailable

0220

Ferris 5050927X20

WIRE LOOM, 3/8 ID X 20 IN

$

$

Currently unavailable

0230

Ferris 80005972

SCREW,#10-24X0.50,HEX WSHR,TORX,TT,ZC/CL
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

0240

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0250

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0270

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

1000

Connects to PTO Switch

$

$

Not available

1001

Connects to Parking Brake Switch

$

$

Not available

1002

Connects to Ignition Switch

$

$

Not available

1003

Connects to Auxilary Switch (Headlight)

$

$

Not available

1004

Connects to Hour Meter

$

$

Not available

1005

Connects to Auxilary Wiring Harness (Headlight)

$

$

Not available

1006

Connects to Right Hand Side Neutral Switch

$

$

Not available

1007

Connects to Seat Switch

$

$

Not available

1008

Connects to Left Hand Side Neutral Switch

$

$

Not available

1009

Connects to Starter Solenoid (Coil)

$

$

Not available

1010

Connects to Starter Solenoid (Post)

$

$

Not available

1011

Connects to Ground

$

$

Not available

1012

Connects to Engine

$

$

Not available

1013

Connects to PTO Clutch

$

$

Not available
