400S (5901990) - Ferris 400S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton 48" Mower Deck Group - Housing, Covers, Spindles, & Blades Parts Diagram

400S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton

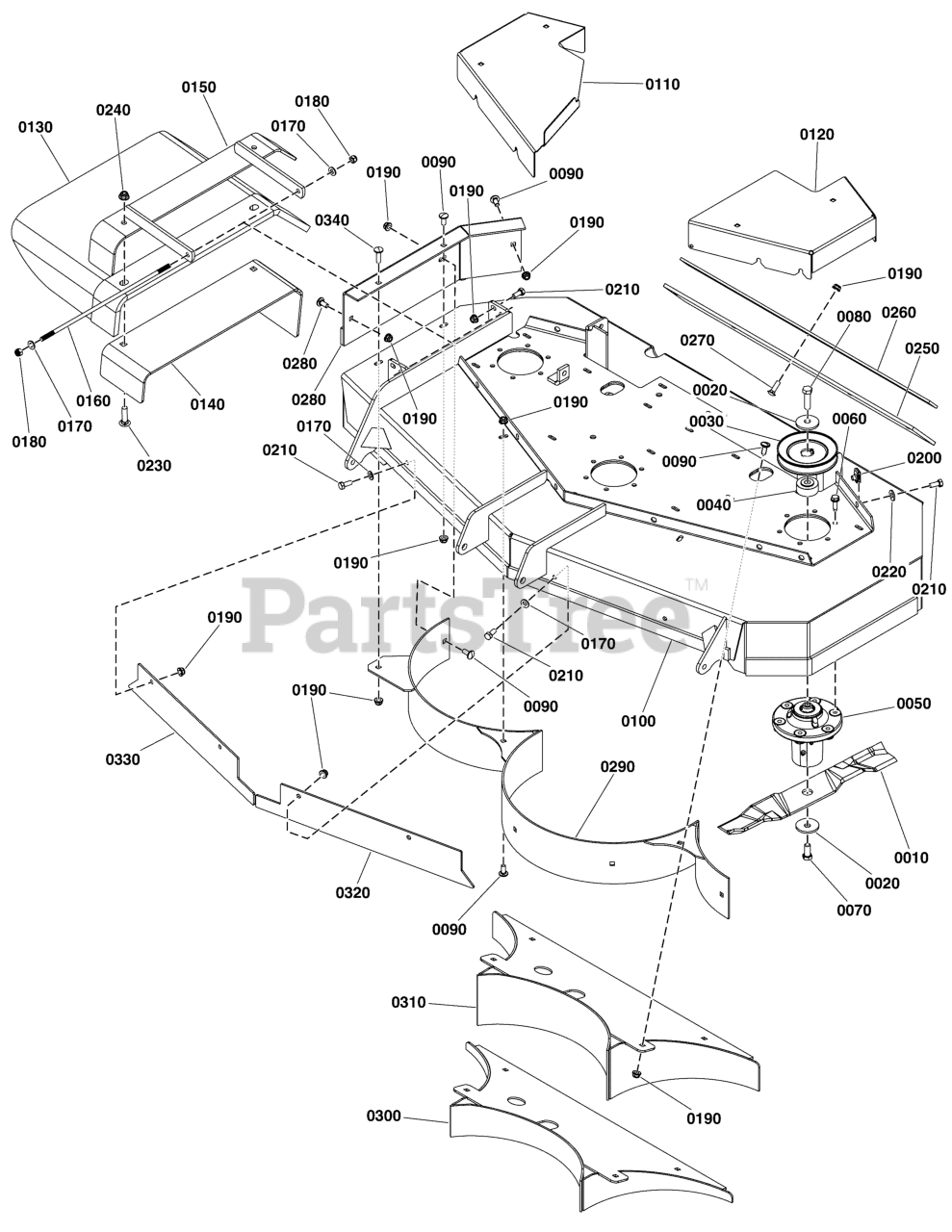

48" Mower Deck Group - Housing, Covers, Spindles, & Blades Parts Diagram

  • Title

0010

Ferris 5105631S

BLADE SET, MULCH, 48 DECK

Note: (Refer to Note: *)

$76.99

$

In Stock, only 2 left!

0

0020

Ferris 1656916

WASHER, .475 ID x 1.75 OD x .156 Thick Spring, Black
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

0030

Ferris 1732951

PULLEY, .68" Deep-Groove OD 4.6"
(Superseded to 1732951SM)

$19.99

$

In Stock, Qty 20+

0

0040

Ferris 1758623

SPACER, HUB
(Superseded to 706362)

$9.99

$

Usually ships in 2-12 days

0

0050

Ferris 5416763

ASSY, ALUMINUM SPINDLE, 1761445 HOUSING
(Superseded to 5416763FS)

$133.99

$

In Stock, Qty 7

0

0060

Ferris 80006216

SCREW,5/16-18X1.000,HEX WSHR HD,TT,ZC/CL
(Superseded to 704146)

Note: (Torque spindle mounting bolt to 30 ft-lbs (41 Nm)

$3.99

$

In Stock, Qty 20+

0

0070

Ferris 80020425

CAPSCREW-HEX HD 7/16-14X1.000 G5 ZC/CL
(Superseded to 2820676SM)

Note: (Torque blade mounting bolt to 50-60 ft-lbs (68-81 Nm)

$4.49

$

In Stock, Qty 6

0

0080

Ferris 1921212

CAPSCREW, Hex-Head, 7/16-14 x 1-1/2
(Superseded to 1921212SM)

$

$

Not available

0090

RHSSNB,5/16-18 X 3/4 GR5 ZINC/CLEAR

$

$

Not available

0100

Ferris 5601108

DECK SHELL W/ DECALS, 400S48-CE (5416925B)

$1966.99

$

Usually ships in 2-12 days

0

0110

Ferris 84008680

PLATE, Spindle, Right

$

$

Currently unavailable

0120

Ferris 84008681

PLATE, Spindle, Left

$

$

Currently unavailable

0130

Ferris 5413498

CHUTE, RUBBER DISCHARGE CHUTE (5104441)

$165.99

$

Usually ships in 2-12 days

0

0140

Ferris 1760930A

SUPPORT, DISCHARGE CHUTE, CE - BLACK

$90.99

$

Usually ships in 2-12 days

0

0150

Ferris 1760936A

WELD, DISCHARGE CHUTE, CE - BLACK

$

$

Currently unavailable

0160

Ferris 5042555

ROD, 5/16 X 13.75, TBE, CZ
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

0170

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0180

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

0190

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0200

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

0210

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

0220

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

0230

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

0240

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0250

Ferris 5105748

FLAP, 400S, 48"
(Superseded to 5105748FS)

$35.99

$

Usually ships in 2-12 days

0

0260

Ferris 5417221A

PLATE, SUPPORT - BLK

$

$

Currently unavailable

0270

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

0280

Ferris 5416989B

WELD, BLOCKOFF, 48 - RED
(Superseded to 5416989BFS)

$67.99

$

Usually ships in 2-12 days

0

0290

Ferris 5416972B

WELD, FRONT BAFFLE, 48 - RED
(Superseded to 5416972BFS)

$97.99

$

Usually ships in 2-12 days

0

0300

Ferris 5416970B

WELD, REAR BAFFLE, 48, LOW - RED
(Superseded to 5416970BFS)

$124.99

$

Usually ships in 2-12 days

0

0310

Ferris 5416971B

WELD, REAR BAFFLE, 48, HIGH - RED
(Superseded to 5416971BFS)

$148.99

$

Usually ships in 2-12 days

0

0320

Ferris 5416952B

FRONT GUARD, LH - RED
(Superseded to 5416952BFS)

$16.99

$

Usually ships in 2-12 days

0

0330

Ferris 5416953B

FRONT GUARD, RH - RED
(Superseded to 5416953BFS)

$15.99

$

Usually ships in 2-12 days

0

0340

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0
