400S (5901775) - Ferris 400S Series 48" Zero-Turn Mower, 25hp Briggs & Stratton Rear Suspension Group Parts Diagram

400S Series 48" Zero-Turn Mower, 25hp Briggs & Stratton

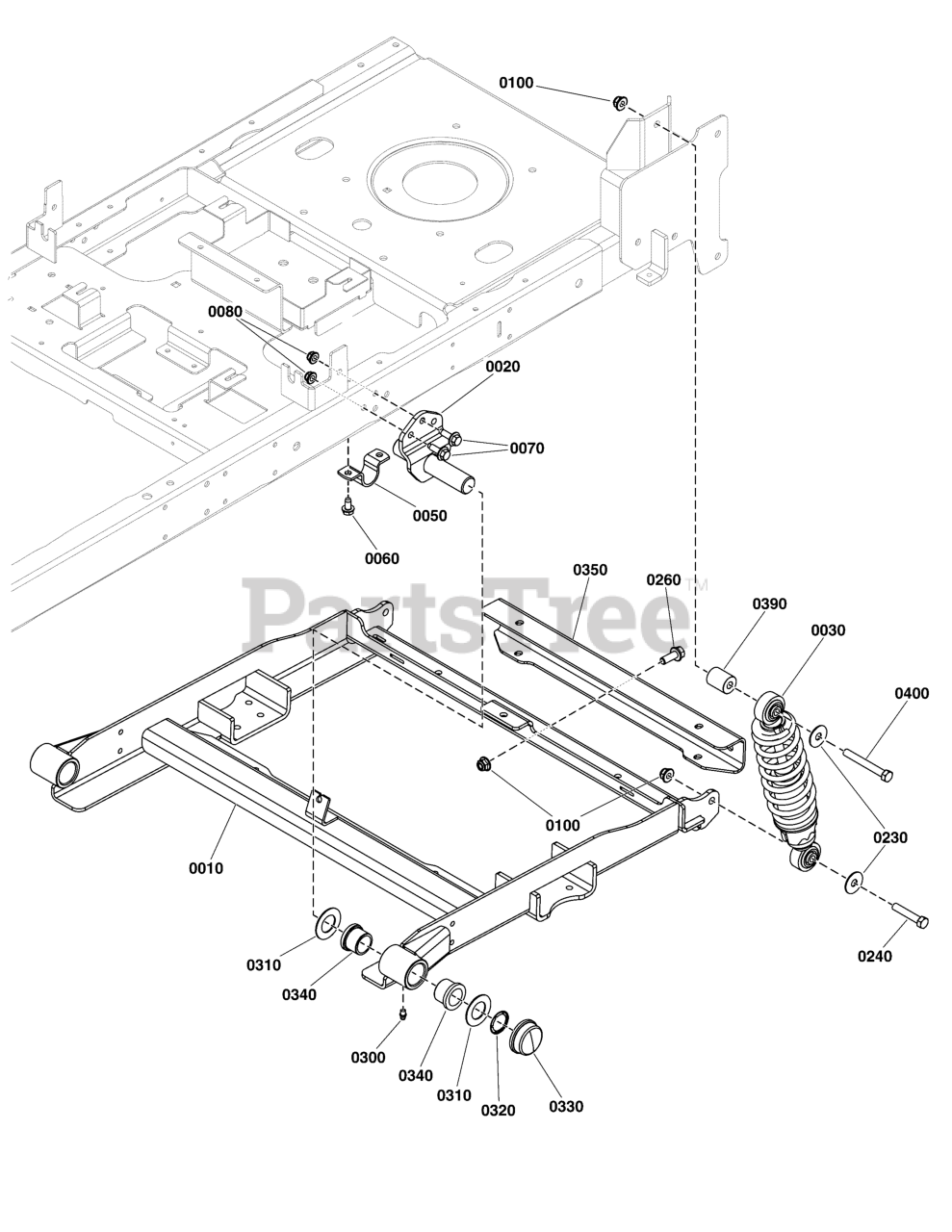

Rear Suspension Group Parts Diagram

  • Title
0010

Ferris 84007764

CRADLE, Suspension

$637.99

$

Usually ships in 2-12 days

0

0020

Ferris 1758716B

WELDMENT, REAR SWING ARM PIVOT - RED
(Superseded to 1758716BYP)

$49.99

$

Usually ships in 2-12 days

0

0030

Ferris 5103624

SHOCK ABSORBER, IS600
(Superseded to 5103624YP)

$219.99

$

In Stock, only 2 left!

0

0050

Ferris 1720147

STRAP 1.00 DIA. SHAFT
(Superseded to 1720147FS)

$8.49

$

Usually ships in 2-12 days

0

0060

Ferris 80005404

SCREW,5/16-18X0.625,WSHR,THD-ROLL,ZC/CL
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0070

Ferris 80020384

SCREW-HEX WZ LOCK FLNG 5/16-18 X1.00 DOG
(Superseded to 1960667SM)

$4.99

$

Usually ships in 2-12 days

0

0080

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0230

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

0240

Ferris 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0260

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

0300

Ferris 1704314

LUBE FITTING, 1/4 Drive , Check Ball
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

0310

Ferris 80004282

WASHER,1.017IDX1.812ODX0.6THK,FLAT,ZC/CL
(Superseded to 703199)

$4.99

$

In Stock, only 2 left!

0

0320

Ferris 80004283

PUSH NUT, FLAT 1.00 SHAFT, PHOS/OIL
(Superseded to 703200)

$4.99

$

Usually ships in 2-12 days

0

0330

Ferris 721318

CAP, Hub
(Superseded to 094618MA)

$5.99

$

In Stock, only 4 left!

0

0340

Ferris 1758717

BUSHING, FLANGE, 1.00 X 1.00 LG, PLASTIC
(Superseded to 1758717YP)

$8.99

$

Usually ships in 2-12 days

0

0350

Ferris 1759163B

BRKT, REAR TRANS SUPPORT - RED
(Superseded to 1759163BYP)

$42.99

$

Usually ships in 2-12 days

0

0390

Ferris 5103427

SPACER, .39 X 1.00 X 1.25, PM, CZ
(Superseded to 5103427YP)

$8.49

$

Usually ships in 2-12 days

0

0400

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0
