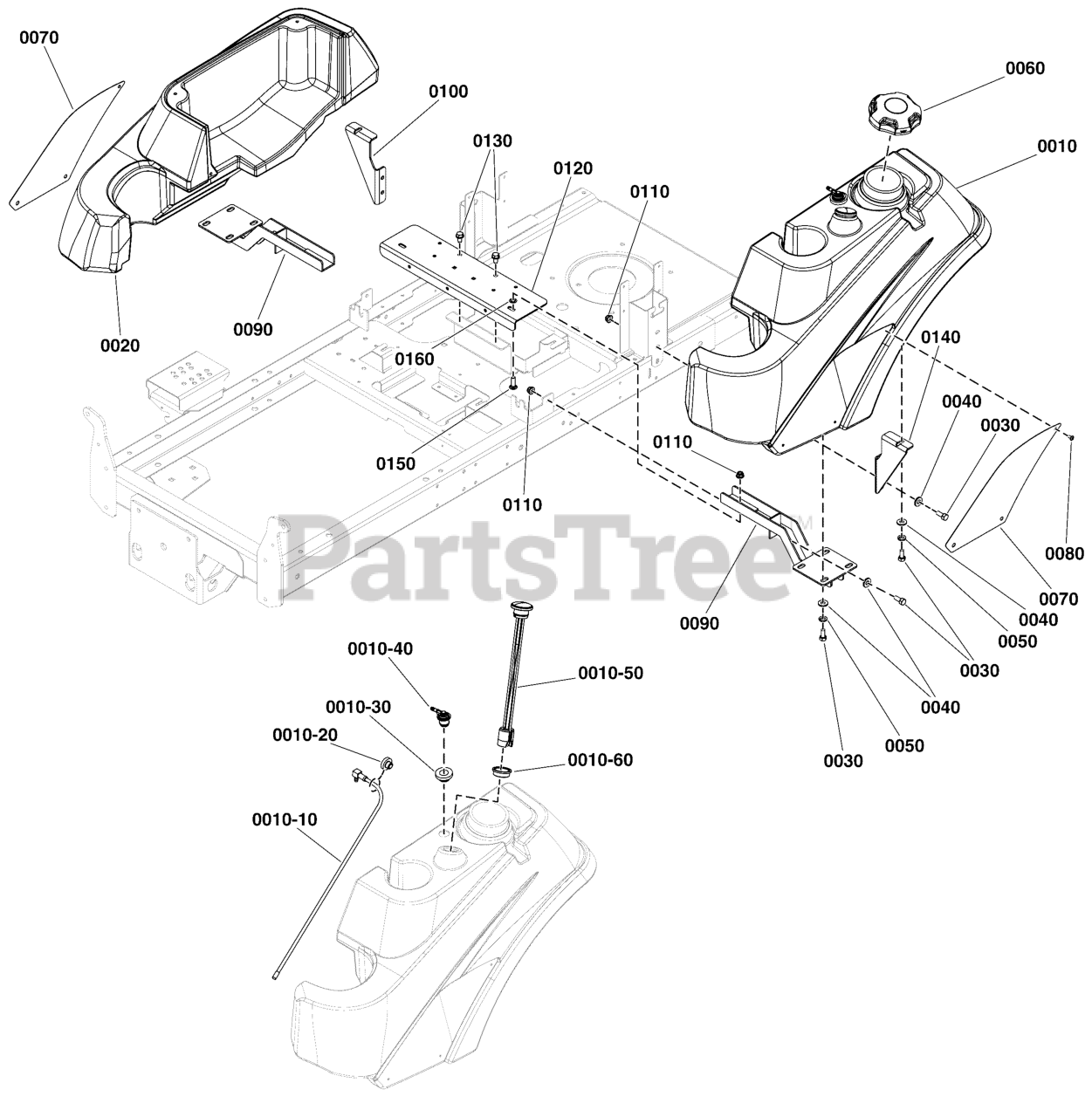

400S (5901774) - Ferris 400S Series 44" Zero-Turn Mower, 23hp Briggs & Stratton Fuel Tank and Mount Group S/N: 2018115601 and Below Parts Diagram

400S Series 44" Zero-Turn Mower, 23hp Briggs & Stratton

Fuel Tank and Mount Group S/N: 2018115601 and Below Parts Diagram

  • Title

0010

Ferris 5105496

TANK, FUEL, LH
(Superseded to 5105496FS)

$379.99

$

Usually ships in 2-12 days

0

0010-10

Ferris 5101149

PICKUP TUBE ASM, FUEL TANK, 22"
(Superseded to 5101149SM)

$25.99

$

In Stock, only 1 left!

0

0010-20

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, Qty 6

0

0010-30

Ferris 209043

GROMMET (SV)
(Superseded to 799624)

$8.99

$

In Stock, Qty 16

0

0010-40

Ferris 80019626

ASSY., REMOTE VENT - NO VALVE

$

$

Currently unavailable

0010-50

Ferris 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0

0010-60

Ferris 5022917X1

GROMMET, FUEL GAUGE (SV)
(Superseded to 5022917X1SM)

$6.99

$

In Stock, Qty 5

0

0020

Ferris 5105497

TANK, FENDER, RH
(Superseded to 5105497FS)

$168.99

$

Usually ships in 2-12 days

0

0030

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

0040

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

0050

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

0060

Ferris 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

0070

Ferris 5400250B

PLATE, BADGE - IS1500 - RED
(Superseded to 5400250BFS)

$7.49

$

Usually ships in 2-12 days

0

0080

Ferris 5025386

SCREW, Allen Head, #10-24 x 3/8"
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0

0090

Ferris 5416739A

WELD, TANK MOUNT, F400Z - BLK

$75.99

$

Usually ships in 2-12 days

0

0100

Ferris 5416743A

PLATE, REAR TANK SUPPORT, RH - BLK

$13.99

$

Usually ships in 2-12 days

0

0110

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0120

Ferris 5416687B

PLATE, TANK MOUNT CENTER SUPPORT - RED
(Superseded to 5416687BFS)

$23.99

$

Usually ships in 2-12 days

0

0130

Ferris 80005404

SCREW,5/16-18X0.625,WSHR,THD-ROLL,ZC/CL
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0140

Ferris 5416768A

PLATE, REAR TANK SUPPORT, LH - BLK

$13.99

$

Usually ships in 2-12 days

0

0150

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0160

Ferris 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0
