400S (5901773) - Ferris 400S Series 44" Zero-Turn Mower, 22hp Kawasaki 44" Mower Deck Group - Pulleys, Belt & Idler Arm Parts Diagram

400S Series 44" Zero-Turn Mower, 22hp Kawasaki

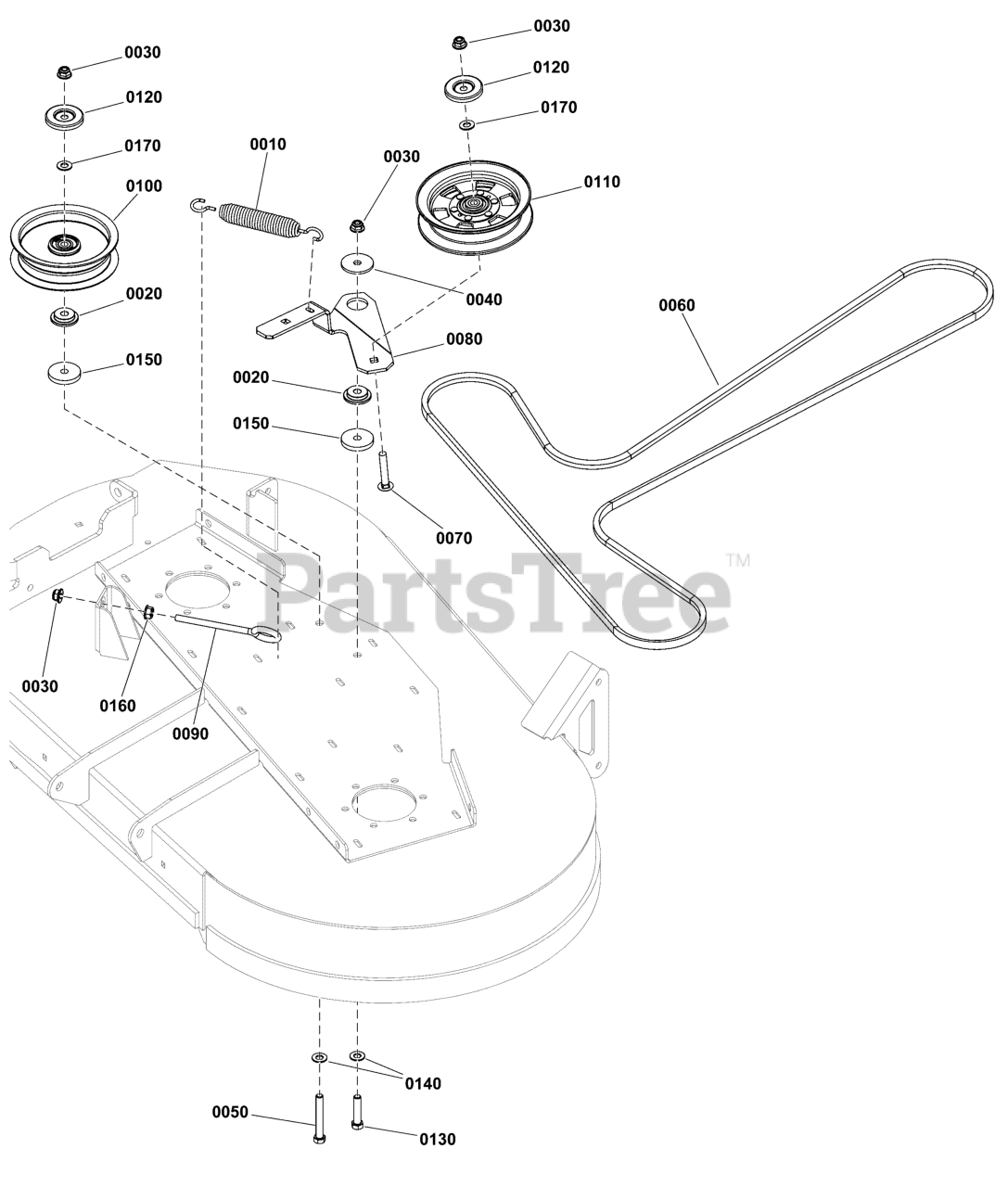

44" Mower Deck Group - Pulleys, Belt & Idler Arm Parts Diagram

  • Title
0010

Ferris 5022847

SPRING-EXT, 1.04 ODX6.935LGX.148WR, BLK
(Superseded to 5022847SM)

$34.99

$

In Stock, Qty 7

0

0020

Ferris 1757738

SPACER IDLER 42
(Superseded to 706128)

$6.99

$

In Stock, only 4 left!

0

0030

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0040

Ferris 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

$3.99

$

In Stock, only 3 left!

0

0050

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 5

0

0060

Ferris 5103885

BELT, A-SEC, 117.24" EL, WRAPPED, ARAMID
(Superseded to 5103885YP)

$84.99

$

In Stock, Qty 7

0

0070

Ferris 7900009

RHSSNB, 3/8-16 X 2-1/4, GR5
(Superseded to 7900009SM)

$3.99

$

In Stock, only 1 left!

0

0080

Ferris 5418875A

PLATE, IDLER ARM, 400S 44 - BLK

$24.99

$

In Stock, only 2 left!

0

0090

Ferris 5021812

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ
(Superseded to 5021812SM)

$5.99

$

In Stock, Qty 18

0

0100

Ferris 84003633

PULLEY, Flat Idler

$39.99

$

In Stock, Qty 12

0

0110

Ferris 5106473

PULLEY,IDLER, BACKSIDE,6.25ODX381IDINSER
(Superseded to 5106473FS)

$55.99

$

Usually ships in 2-12 days

0

0120

Ferris 5105033

SHIELD, PULLEY, 3/8"ID X 2"OD, CZ
(Superseded to 5105033YP)

$3.49

$

In Stock, only 4 left!

0

0130

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

0140

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0150

Ferris 1960071

WASHER-0.375(0.41IDX1.75ODX.25THK) BLK
(Superseded to 1960071SM)

$8.49

$

In Stock, only 1 left!

0

0160

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

0170

Ferris 5025293

WASHER, 3/8" GR. 9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0
