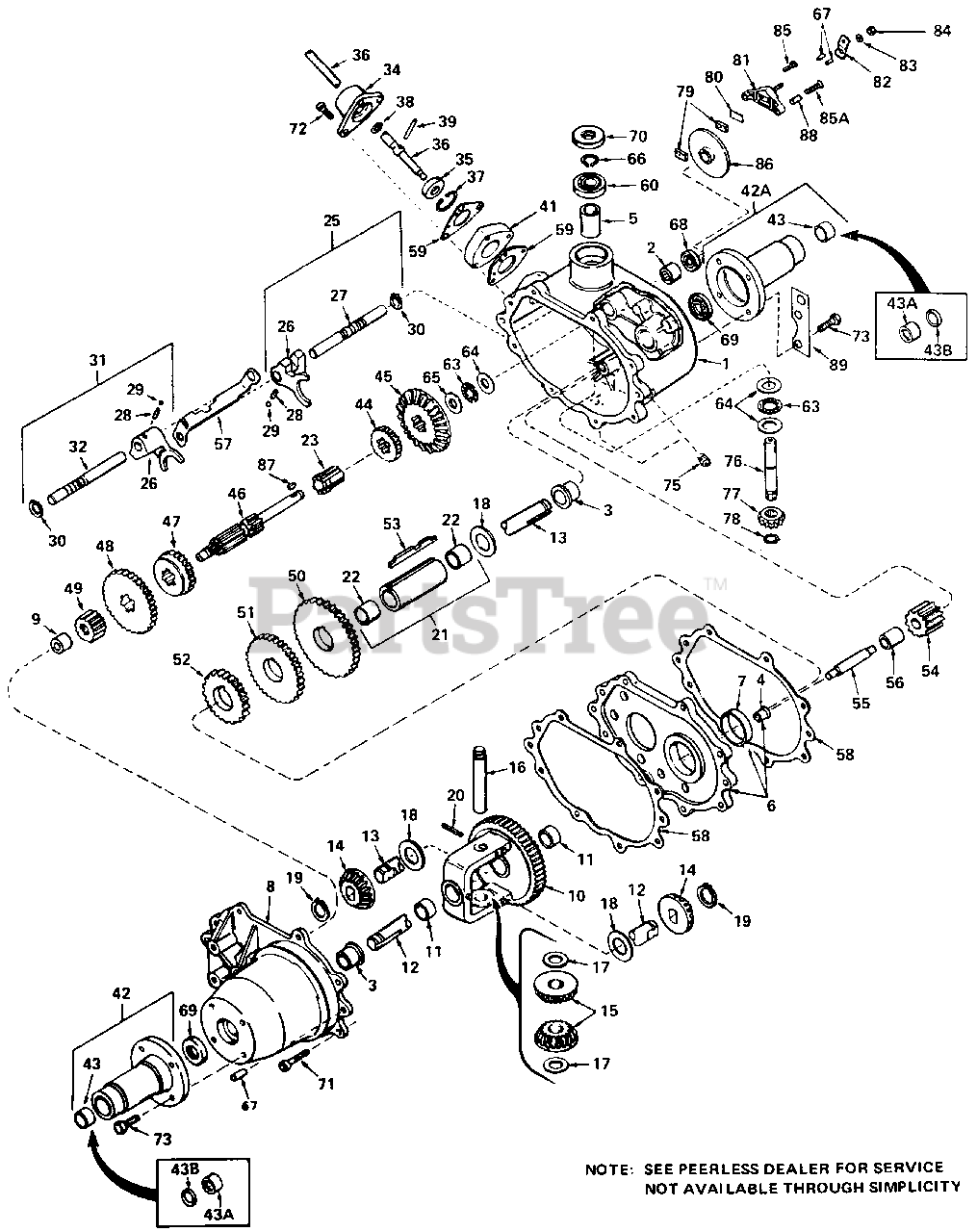

4008 (1690206) - Simplicity 36" Lawn Tractor Mower, 8hp Transaxle Model No. 657 Parts Diagram

36" Lawn Tractor Mower, 8hp

Transaxle Model No. 657 Parts Diagram

  • Title

1

Simplicity 770063

CASE ASSEMBLY, Transaxle (Incl. Nos. 2, 3, & 5)

$

$

Not available

2

Simplicity 780086

BEARING, Needle

$

$

Not available

3

Simplicity 780059

BEARING, Bronze

$

$

Not available

4

Simplicity 780060

BEARING, Bronze

$

$

Not available

5

Simplicity 780061

BEARING, Bronze

$

$

Not available

6

Simplicity 786033

PLATE ASSEMBLY, Center (Incl. Nos. 4 & &)

$

$

Not available

7

Simplicity 780062

BEARING, Bronze

$

$

Not available

8

Simplicity 772042

COVER ASSEMBLY, Transaxle (Incl. Nos. 3 & 9)

$

$

Not available

9

Simplicity 780063

BEARING, Needle

$

$

Not available

10

Simplicity 778053

GEAR ASSEMBLY, Differential (Incl. No. 11)

$

$

Not available

11

Simplicity 780064

BEARING, Bronze

$

$

Not available

12

Simplicity 774352

AXLE, L.H.

$

$

Not available

13

Simplicity 774299

AXLE, R.H.

$

$

Not available

14

Simplicity 778067

GEAR, Bevel

$

$

Not available

15

Simplicity 778068

PINION, Bevel

$

$

Not available

16

Simplicity 786034

PIN, Drive

$

$

Not available

17

Simplicity 780065

WASHER, Thrust

$

$

Not available

18

Simplicity 780001

WASHER, Thrust

$

$

Not available

19

Simplicity 788038

RING, Snap

$

$

Not available

20

Simplicity 792040

PIN, Roll
(Superseded to 795259)

$32.99

$

In Stock, only 3 left!

0

21

Simplicity 786035

SLEEVE ASSEMBLY, Countershaft (Incl. No. 22)

$

$

Not available

22

Simplicity 780066

BEARING, Bronze

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 776090

SHAFT, Idler

$16.99

$

Usually ships in 2-12 days

0

25

Simplicity 784079

ROD ASSEMBLY, Shift (1st & Rev.) (Incl. No. 26-30)

$

$

Not available

26

Simplicity 784004

FORK, Shift

$

$

Not available

27

Simplicity 784083

ROD, Shift

$

$

Not available

28

Simplicity 792003

SPRING

$

$

Not available

29

Simplicity 792004

BALL, Steel
(Superseded to 799063)

$91.99

$

In Stock, only 4 left!

0

30

Simplicity 792017

RING, Snap

$

$

Not available

31

Simplicity 784084

ROD ASSEMBLY, Shift (2nd & 3rd) (Inc. Nos. 26, 28, 29, 30,& 32)

$

$

Not available

32

Simplicity 784085

ROD, Shift

$

$

Not available

33

Simplicity 784088

HOUSING, Shift Lever

$

$

Not available

35

Simplicity 784094

KEEPER, Shift Lever

$

$

Not available

36

Simplicity 784283

LEVER, Shift

$

$

Not available

37

Simplicity 792016

RING, Snap

$

$

Not available

38

Simplicity 792001

RING, Quad

$

$

Not available

39

Simplicity 792049

PIN, Drive

$

$

Not available

41

Simplicity 786057

BLOCK, Riser

$

$

Not available

42

Simplicity 782036A

HOUSING ASSEMBLY, Axle (Incl. No. 43)

$

$

Not available

42A

Simplicity 782043

HOUSING ASSEMBLY, Axle (Incl. No. 43)

$

$

Not available

43

Simplicity 780091

BEARING & SEAL ASSEMBLY, Needle (See Note 1)

$

$

Not available

43A

Simplicity 530105

BEARING, Needle

$

$

Not available

43B

Simplicity 788042

SEAL, Oil

$

$

Not available

44

Simplicity 778024

GEAR (16 Teeth)

$

$

Not available

45

Simplicity 778057

GEAR, Bevel (33 Teeth)

$

$

Not available

46

Simplicity 776138

SHAFT, Shifter and Brake

$

$

Not available

47

Simplicity 778058

GEAR, Shifting (2nd and 3rd)

$

$

Not available

48

Simplicity 778059

GEAR, Shifting (1st and Rev.)

$

$

Not available

49

Simplicity 778060

GEAR, Spur (12 Teeth)

$

$

Not available

50

Simplicity 778061

GEAR, Countershaft Drive (39 Teeth)

$

$

Not available

51

Simplicity 778062

GEAR, Countershaft (34 Teeth)

$

$

Not available

52

Simplicity 778063

GEAR, Countershaft (25 Teeth)

$

$

Not available

53

Simplicity 792034A

KEY, Countershaft

$

$

Not available

54

Simplicity 778064

IDLER, Reverse

$

$

Not available

55

Simplicity 776057

SHAFT, Reverse Idler

$

$

Not available

56

Simplicity 786036

SPACER, Reverse Idler

$

$

Not available

57

Simplicity 784087

STOP, Shifter

$

$

Not available

58

Simplicity 788033

GASKET, Case and Cover

$

$

Not available

59

Simplicity 788003

GASKET, Shift Lever Housing

$

$

Not available

60

Simplicity 780093

BEARING, Ball

$

$

Not available

63

Simplicity 780071

BEARING, Thrust

$

$

Not available

64

Simplicity 780072

WASHER, Thrust

$

$

Not available

65

Simplicity 780073

WASHER, Thrust

$

$

Not available

66

Simplicity 792035

RING, Snap

$

$

Not available

67

Simplicity 786026

PIN, Dowel

$

$

Not available

68

Simplicity 788043

SEAL, Oil

$

$

Not available

69

Simplicity 788009

SEAL, Oil

$

$

Not available

70

Simplicity 788035

SEAL, Oil

$

$

Not available

71

Simplicity 792036

CAPSCREW, Socket Hd., 1/4-20 x 1 1/4

$

$

Not available

72

Simplicity 792051

CAPSCREW, Socket Hd., 1/4-20 x 1 3/4

$

$

Not available

73

Simplicity 792037

SCREW, Hex Hd., Sems, 5/16-18 x 1

$

$

Not available

75

Simplicity 792039

PLUG, Pipe, 1/8

$

$

Not available

76

Simplicity 776103

SHAFT, Input

$

$

Not available

77

Simplicity 778077

PINION, Input

$

$

Not available

78

Simplicity 788040

RING, Retaining

$

$

Not available

79

Simplicity 790006

PAD, Brake

$

$

Not available

80

Simplicity 790007

PLATE, Brake Pad

$

$

Not available

81

Simplicity 790005

HOLDER, Brake Pad

$

$

Not available

82

Simplicity 790019

LEVER, Brake
(Superseded to 593432)

$137.99

$

In Stock, Qty 20+

0

83

Simplicity 792076

WASHER, Flat

$

$

Not available

84

Simplicity 792075

LOCKNUT

$

$

Not available

85

Simplicity 792073

CAPSCREW, Hex Hd., Thread Forming, 1/4-20 x 1 1/4

$61.99

$

In Stock, only 3 left!

0

85A

Simplicity 792085

SCREW, Hex Hd., Thread Forming, 1/4-20 x 2 1/4

$

$

Not available

86

Simplicity 790009

DISK, Brake
(Superseded to 592814)

$136.99

$

In Stock, only 3 left!

0

87

Simplicity 792045

KEY, Woodruff No. 61

$102.99

$

Usually ships in 2-12 days

0

88

Simplicity 786066

SPACER

$

$

Not available

89

Simplicity 786065

BRACKET, Spring Anchor

$

$

Not available
