40021 MS (31A-2M1A597) - Columbia 21" Snow Thrower (2008) General Assembly Parts Diagram

21" Snow Thrower

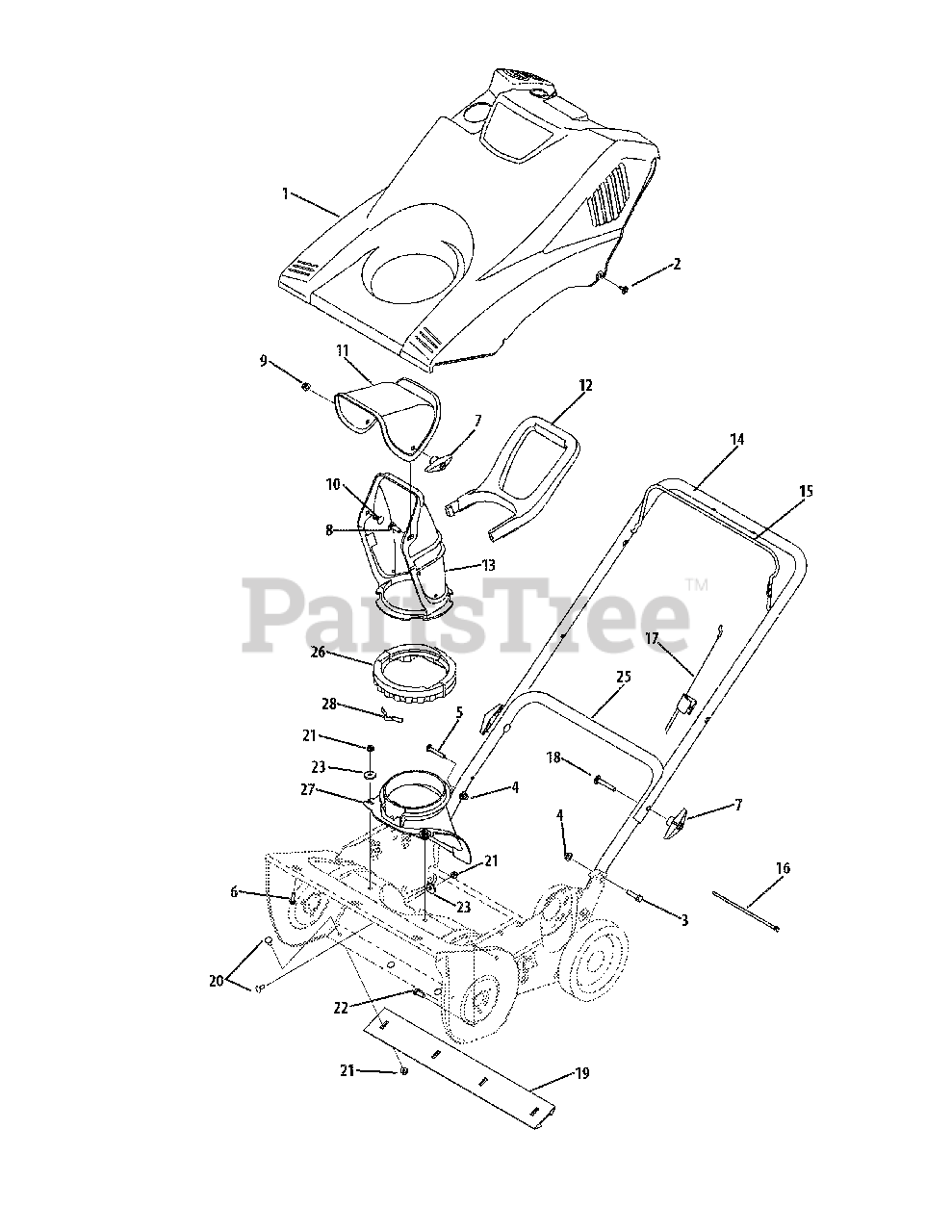

General Assembly Parts Diagram

  • Title
1

MTD 753-06906

Shroud

$105.99

$

Usually ships in 3-6 days

0

2

MTD 710-04669

Hex Wash B-Tapp Scr #10-16 x .62" Lg.

$3.49

$

In Stock, Qty 20+

0

3

MTD 710-1090

Hex Scr. .312-18 x 1.250

$3.99

$

Usually ships in 3-6 days

0

4

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-1882

Hex Scr. 5/16-18 x 1.50 Gr. 5

$4.49

$

Usually ships in 3-6 days

0

6

MTD 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$6.49

$

In Stock, Qty 10

0

7

MTD 920-0284

Handle Knob Assembly
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

8

MTD 710-04071

Carriage Screw 5/16-18 x 1.0

$4.49

$

In Stock, Qty 10

0

9

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

11

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 11

0

12

MTD 731-04388A

Chute Handle

$26.99

$

Usually ships in 3-6 days

0

13

MTD 931-04127

Lower Chute 5" Dia

$33.99

$

Usually ships in 3-6 days

0

14

MTD 749-04459-0637

Upper Handle

$39.99

$

Usually ships in 3-6 days

0

15

MTD 747-04165-0637

Bail Control

$13.99

$

In Stock, only 3 left!

0

16

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

17

MTD 946-04237

Control Cable

$24.99

$

Usually ships in 3-6 days

0

18

MTD 710-04532

Carriage Bolt 5/16-18 x 2.0

$6.49

$

In Stock, Qty 5

0

19

MTD 731-1033

Shave Plate

$47.99

$

In Stock, Qty 13

0

20

MTD 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

22

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

23

MTD 936-0176

Flat Washer .25 ID x .93 OD x .125
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

25

MTD 749-04114B

Lower Handle

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-04114B-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04114B-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

26

MTD 931-04353

Ring-Lower Chute

$18.99

$

In Stock, only 4 left!

0

27

MTD 931-04886

Chute Adapter 5" Dia

$20.99

$

Usually ships in 3-6 days

0

28

MTD 932-04111

Chute Adjustment Spring

$4.99

$

In Stock, Qty 20+

0
