40021 MS (31A-2M1A597) - Columbia 21" Snow Thrower (2008) Drive Assembly Parts Diagram

21" Snow Thrower

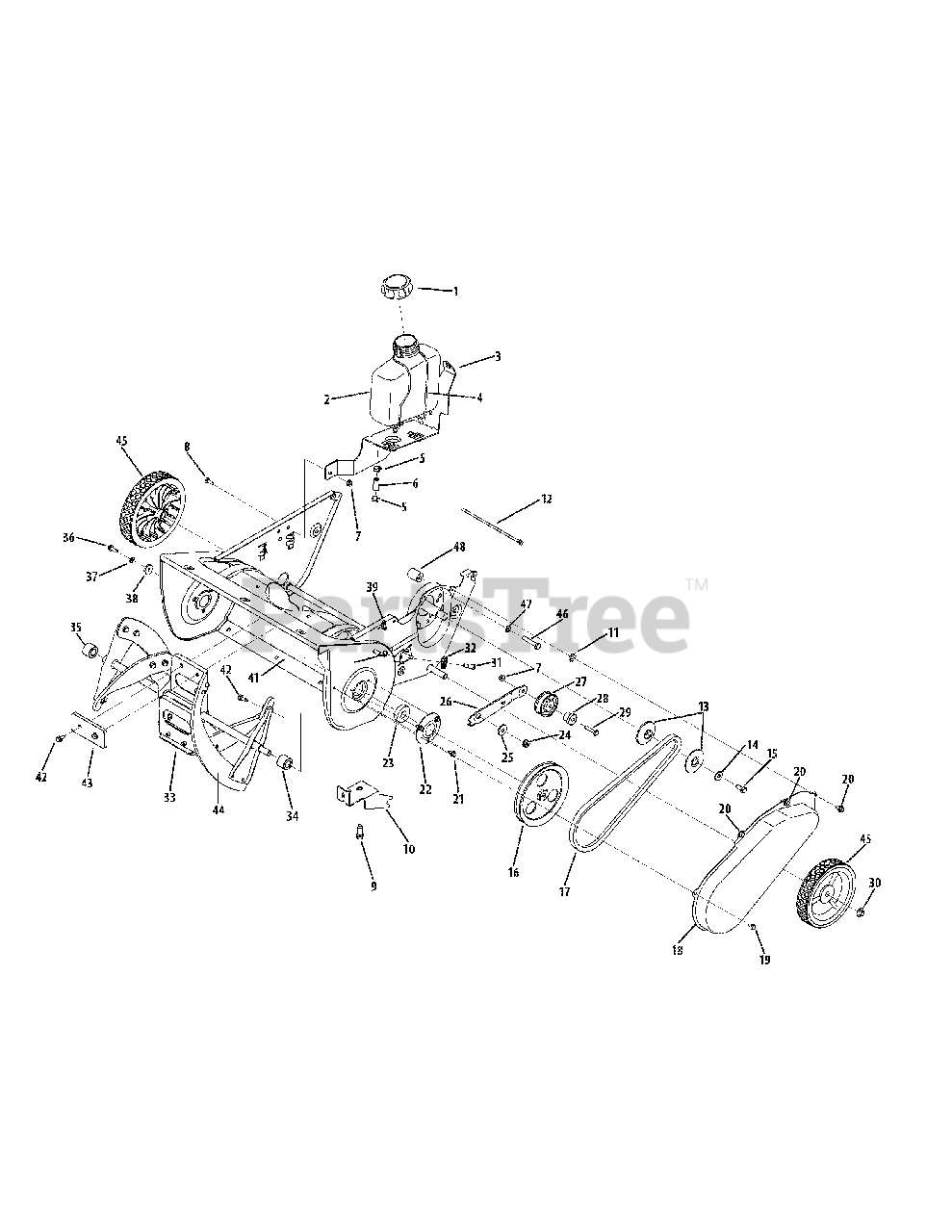

Drive Assembly Parts Diagram

  • Title

1

MTD 751-10487

Cap-Fuel
(Superseded to 751-10487C)

$16.99

$

In Stock, Qty 5

0

2

MTD 951-10023

Fuel Tank 2 Quart

$

$

Not available

3

MTD 790-00134-0637

Gas Tank Support Bracket

$

$

Not available

4

MTD 747-04236

Gas Tank Wire Support

$

$

Not available

5

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

6

MTD 751-10349

Fuel Line

Note: *CHOOSE LENGTH WHEN ORDERING*

$9.49

$

Usually ships in 3-6 days

0

7

MTD 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0751

Hex Bolt 1/4-20 x .62 Gr. 5

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, Qty 20+

0

10

MTD 790-00216-0637

Engine Bracket

$

$

Not available

11

MTD 726-0233

Push Nut

$4.49

$

In Stock, Qty 20+

0

12

MTD 926-0154

Push Mount Tie

$6.49

$

Usually ships in 3-6 days

0

13

MTD 956-0416B

Pulley Half .625 ID x 2.25 OD

$10.99

$

In Stock, only 2 left!

0

14

MTD 736-0242

Flat Washer .340 ID x .872 OD x .060

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0627

Hex L-Bolt 5/16-24 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

16

MTD 756-04232

Pulley 1/2 x 6,0" OD

$60.99

$

In Stock, only 1 left!

0

17

MTD 954-0101A

V-Belt 1/2 x 35.0" Lg.

$28.99

$

In Stock, Qty 20+

0

18

MTD 790-00045C

Belt Cover

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00045C-0637

Belt Cover, Black - POWDER BLACK

$57.99

$

Usually ships in 3-6 days

0

MTD 790-00045C-0638

Belt Cover, Red - MTD/TROY-BILT RED

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00045C-4044

COVER-BELT SINGLE - CRAFTSMAN RED

$57.99

$

Usually ships in 3-6 days

0

MTD 790-00045C-4044

COVER-BELT SINGLE - CRAFTSMAN RED

$57.99

$

Usually ships in 3-6 days

0

MTD 790-00045C-0606

COVER-BELT SINGLE - MAJESTIC ORANGE

$

$

Not available

MTD 790-00045C-0691

COVER-BELT SINGLE - BLACK JACK

$

$

Not available

MTD 790-00045C-0662

COVER-BELT SINGLE - OYSTER GRAY

$

$

Not available

MTD 790-00045C-0665

COVER-BELT SINGLE - YARDMAN GREEN

$

$

Not available

MTD 790-00045C-0667

COVER-BELT SINGLE - MIDNIGHT BLUE

$

$

Not available

MTD 790-00045C-0684

COVER-BELT SINGLE - ZINC YELLOW

$

$

Not available

MTD 790-00045C-0689

COVER-BELT SINGLE - POLO GREEN

$

$

Not available

MTD 790-00045C-0709

COVER-BELT SINGLE - MASTERCRAFT GREEN

$

$

Not available

$46.99

$

Usually ships in 3-6 days

0

19

MTD 710-0653

Hex Wash HD Tapp Scr 1/4-20 x .375

$4.49

$

In Stock, Qty 7

0

20

MTD 710-0896

Hex B-Tap Scr 1/4-28 x .25" Lg

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-0599

Hex Tap Scr. 1/4-14 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

22

MTD 790-00249-0637

Bearing Cup

$18.99

$

Usually ships in 3-6 days

0

23

MTD 741-04188A

Ball Bearing .625 x 37 x 12.63

$12.99

$

In Stock, only 2 left!

0

24

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

25

MTD 748-0234

Shoulder Spacer .25 THK

$4.49

$

In Stock, Qty 20+

0

26

MTD 790-00238A-0637

Idler Bracket

$10.99

$

Usually ships in 3-6 days

0

27

MTD 684-04168

Idler Pulley Ass'y

$38.99

$

Usually ships in 3-6 days

0

28

MTD 750-04571

Shld. Spacer .260 x .785 x .538

$6.99

$

In Stock, only 1 left!

0

29

MTD 710-0106

Hex Screw 1/4-20 x 1.25 Gr. 5 Special

$3.99

$

In Stock, Qty 12

0

30

MTD 726-0299

Push Cap x 1/2" Rod

$8.49

$

In Stock, Qty 20+

0

31

MTD 738-0924A

Hex Shld.Scr.1/4-28 x .375

$6.99

$

In Stock, Qty 5

0

32

MTD 756-0625

Cable Guide Roller

$9.49

$

In Stock, Qty 14

0

33

MTD 984-04253-0637

Auger Assembly

$160.99

$

In Stock, only 1 left!

0

34

MTD 750-04757

Auger Spacer LH

$8.49

$

Usually ships in 3-6 days

0

35

MTD 750-04758

Auger Spacer RH

$6.49

$

In Stock, Qty 8

0

36

MTD 710-0642

Thd Forming Scr. 1/4-20 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

37

MTD 936-0329

L-Wash 1/4 ID

$4.49

$

In Stock, Qty 9

0

38

MTD 936-0176

Flat Washer .25 ID x .93 OD x .125
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

39

MTD 932-0357A

Extension Spring .33 x 1.12
(Superseded to 732-0357A)

$4.49

$

In Stock, Qty 13

0

40

MTD 712-0896

Hex Ins Jam L-Nut 1/4-28

$4.99

$

In Stock, Qty 6

0

41

MTD 684-04227

Auger Assembly Housing

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-04227-0691

HOUSING ASM:AUGER: - BLACK JACK (0691)

$140.99

$

Usually ships in 3-6 days

0

MTD 684-04227-0667

HOUSING ASM:AUGER: - MIDNIGHT BLUE (0667)

$121.99

$

In Stock, only 1 left!

0

MTD 684-04227-0721

HOUSING ASM:AUGER: - SEARS RED (0721)

$161.99

$

Usually ships in 3-6 days

0

MTD 684-04227-4044

HOUSING ASM:AUGER: - CRAFTSMAN RED (4044)

$161.99

$

Usually ships in 3-6 days

0

MTD 684-04227-0606

HOUSING ASM:AUGER: - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 684-04227-0638

HOUSING ASM:AUGER: - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-04227-0665

HOUSING ASM:AUGER: - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-04227-0684

HOUSING ASM:AUGER: - ZINC YELLOW (0684)

$

$

Not available

MTD 684-04227-0709

HOUSING ASM:AUGER: - MASTERCRAFT GREEN (0709)

$

$

Not available

$140.99

$

Usually ships in 3-6 days

0

42

MTD 710-0896

Hex Wash. Hd. TT Scr. 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

43

MTD 735-04033

Rubber Paddle

$8.49

$

In Stock, Qty 20+

0

44

MTD 735-04032

Rubber Spiral-Crescent

$18.99

$

In Stock, Qty 20+

0

45

MTD 734-04070

Wheel, 7.0 x 1.6 Diamond

$18.99

$

Usually ships in 3-6 days

0

46

MTD 710-0409

Hex Bolt 5/16-24 x 1.75

$4.99

$

Usually ships in 3-6 days

0

47

MTD 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

48

MTD 750-04297B

Spacer .875 x .320 x 1.10

$4.49

$

Usually ships in 3-6 days

0
