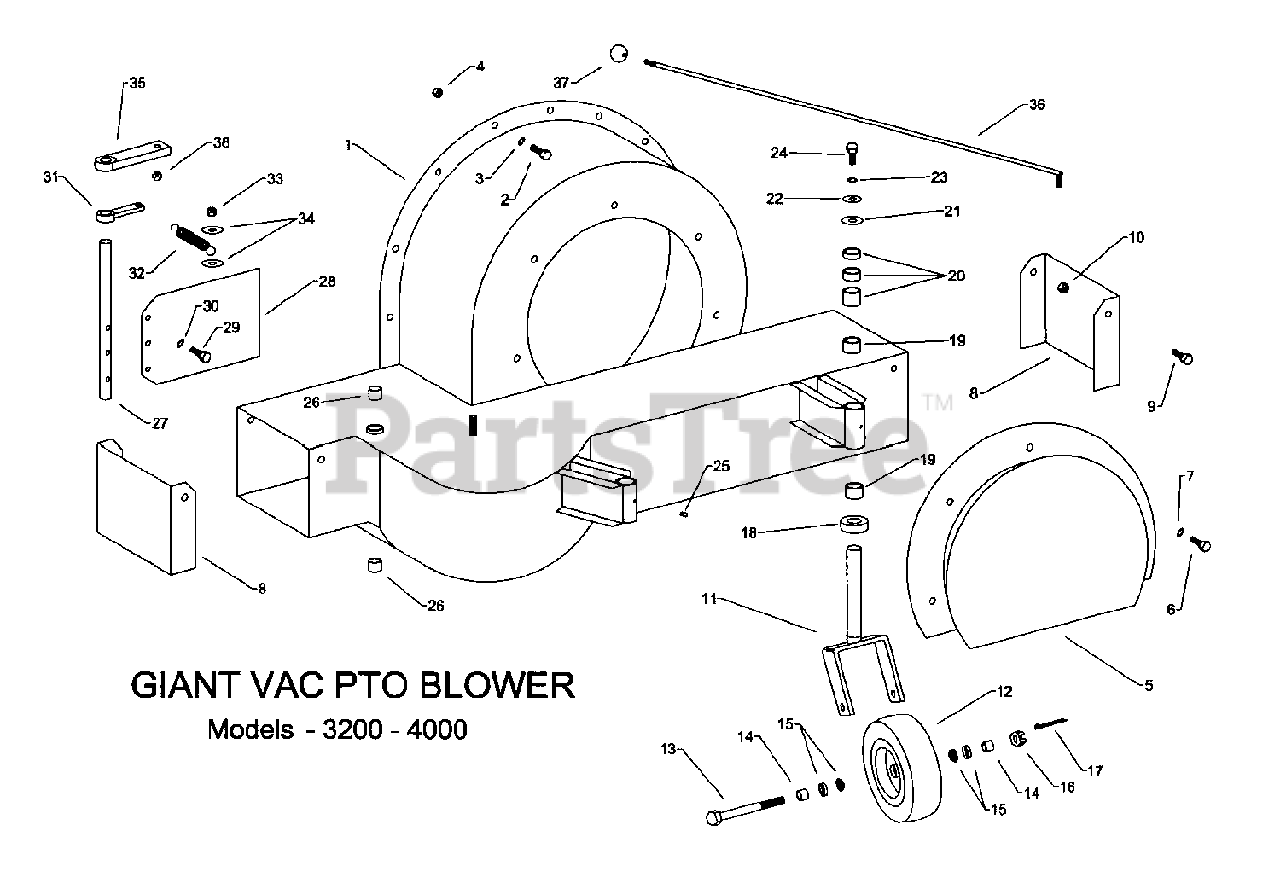

4000PT (3070555) - Giant-Vac PTO Tow-Behind Blower Housing Group Parts Diagram

PTO Tow-Behind Blower

Housing Group Parts Diagram

  • Title

1

Giant-Vac 3010178

Blower housing

Note: 3200 Model

$

$

Currently unavailable

1

Giant-Vac 3010111

Blower housing

Note: 4000 Model

$

$

Currently unavailable

2

Giant-Vac 3031084

1/2 x 1-1/4 hex bolt

$

$

Not available

2

Giant-Vac 3031147

½ x 1-1/2 hex bolt (shaft frame bottom cover)

$

$

Currently unavailable

2

Giant-Vac 3031043

½ flatwasher (shaft frame bottom cover - Not shown)
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

3

Giant-Vac 3031022

1/2 lockwasher

$

$

Currently unavailable

4

Giant-Vac 3031078

1/2 hex nut

$

$

Currently unavailable

5

Giant-Vac 3020186

Intake baffle

$

$

Currently unavailable

6

Giant-Vac 3031114

3/8 x 1 hex bolt
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

7

Giant-Vac 3031115

3/8 lockwasher
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

8

Giant-Vac 3024619

Deflector – left hand discharge

Note: 3200 Model

$

$

Currently unavailable

8

Giant-Vac 3024620

Deflector – right hand discharge

Note: 3200 Model

$

$

Not available

8

Giant-Vac 3024587

Deflector - typical

Note: 4000 Model

$

$

Not available

9

Giant-Vac 3031114

3/8 x 1 hex bolt
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

10

Giant-Vac 3031388

3/8 lock nut
(Superseded to 1960315SM)

$6.49

$

In Stock, only 1 left!

0

11

Giant-Vac 3033119

Caster horn

$

$

Currently unavailable

12

Giant-Vac 3033120

Caster wheel - 410-350-6

$

$

Not available

13

Giant-Vac 3031450

3/4 x 7 axle bolt

$

$

Not available

14

Giant-Vac 3033121

Axle spacer

$

$

Currently unavailable

15

Giant-Vac 3033122

Wheel bearing & seal

$

$

Currently unavailable

16

Giant-Vac 3031451

3/4-25 axle castle nut

$

$

Currently unavailable

17

Giant-Vac 3031452

Axle nut cotter pin

$

$

Currently unavailable

18

Giant-Vac 3031455

Caster horn thrust bearing 1-1/4

$

$

Not available

19

Giant-Vac 3031454

Sleeve bushing 1-1/4 ID

$

$

Currently unavailable

20

Giant-Vac 3033123

Caster horn spacer set (2,1,1/2)

$

$

Not available

21

3031489

5/8 flatwasher

$

$

Not available

22

Giant-Vac 3031043

1/2 flatwasher
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

23

Giant-Vac 3031078

1/2 lockwasher

$

$

Currently unavailable

24

Giant-Vac 3031084

1/2 x 1-1/4 hex bolt

$

$

Not available

25

Giant-Vac 3031437

Caster horn grease fitting
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

26

Giant-Vac 3031454

Sleeve bushing 1-1/4 ID

$

$

Currently unavailable

27

Giant-Vac 3023156

Inner deflector door rod

$

$

Currently unavailable

28

Giant-Vac 3020187

Inner deflector door

$

$

Currently unavailable

29

Giant-Vac 3031492

3/8 x ¾ hex bolt

$

$

Not available

30

Giant-Vac 3031115

3/8 lockwasher
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

31

Giant-Vac 3027179

Spring arm holder

$

$

Currently unavailable

32

Giant-Vac 3031466

Spring
(Superseded to 1723657SM)

$11.99

$

Usually ships in 2-12 days

0

33

Giant-Vac 3031476

1/2 lock nut
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

34

Giant-Vac 3031043

1/2 flatwasher
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

35

Giant-Vac 3023157

Deflector rod upper arm

$

$

Currently unavailable

36

3023155

Control rod

$

$

Not available

37

Giant-Vac 3031103

Control rod knob - 3/8
(Superseded to 3031103SM)

$

$

Not available

38

Giant-Vac 3031424

1/2 lock nut
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0
