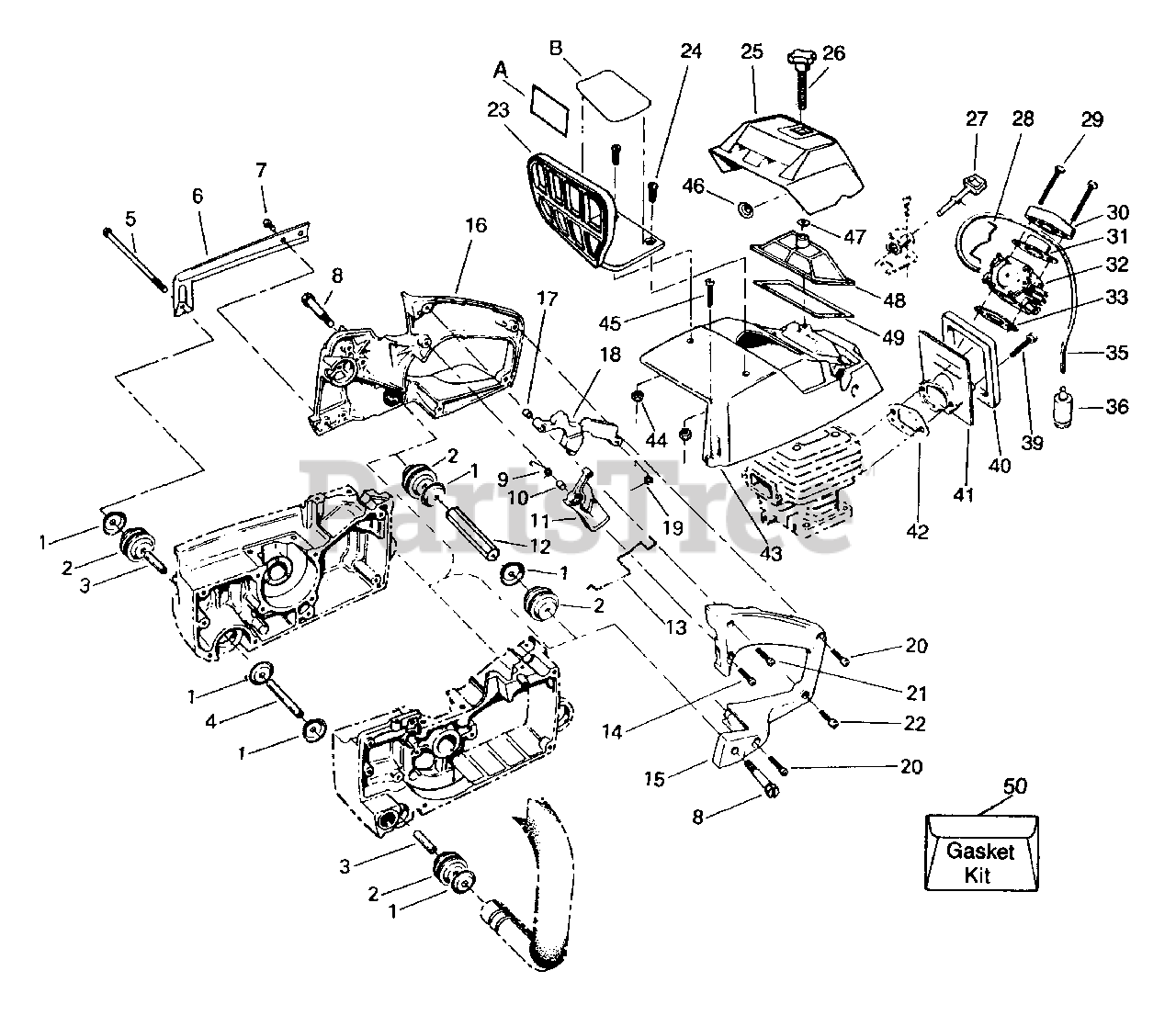

4000 - Poulan Chainsaw Isolator Assembly Parts Diagram

Chainsaw

Isolator Assembly Parts Diagram

  • Title

1

Poulan 24376

Cup-Isolator

$

$

Not available

2

Poulan 24373

Isolator-Powerhead/Rear Handle

Note: Use on Guide Bar Powerhead

$

$

Not available

2

Poulan 24528

Isolator-Powerhead/Rear Handle

Note: Use on Bow Guide Powerhead

$

$

Not available

3

Poulan 15362

Spacer- Front Handlebar Isolator Mount.

$

$

Not available

4

Poulan 15361

Spacer - Front Handlebar Isolator Mount

$

$

Not available

5

Poulan 15391

Screw - 1/4-20 x 5-5M6

$

$

Not available

6

Poulan 11965

Handle Brace

Note: Use on Guide Bar Powerhead

$

$

Not available

6

Poulan 11964

Handle Brace

Note: Use on Bow Guide Powerhead

$

$

Not available

7

Poulan 15194

Screw-1/4-20 x 3/4 Button Md.

$

$

Not available

8

Poulan 15462

Shoulder Screw-Isolator

$

$

Not available

9

Poulan 25469

Spring-Trigger

$

$

Not available

10

Poulan 32059

Bushing-Trigger

$

$

Not available

11

Poulan 26013

Throttle-Trigger

$

$

Not available

12

Poulan 25258

Spacer- Isolator (Center)

$

$

Not available

13

Poulan 24699

Throttle Link

$

$

Not available

14

Poulan 15369

Shoulder Screw - 10-24x5/8 - Fil. Md. - Throttle Trigger

$

$

Not available

15

Poulan 11826

Rear Handle Left

$

$

Not available

16

Poulan 12023

Rear Handle Right

$

$

Not available

17

Poulan 32053

Bushing- Throttle Lock

$

$

Not available

18

Poulan 24357

Throttle Lock

$

$

Not available

19

Poulan 24378

Spring- Throttle Lock

$

$

Not available

20

Poulan 15403

Screw - 10-24 x 13/16 Rear Handle

$

$

Not available

21

Poulan 15393

Screw-8-32 x 13/16 Fil. Hd. Rear Handle Throttle Lock

$

$

Not available

22

Poulan 15608

Screw-8-32 x 9/16-Fil. Hd. Rear Handle Lower

$

$

Not available

23

Poulan 25948

Handguard

$

$

Not available

24

Poulan 15406

Screw-10-24x1/2

$

$

Not available

25

Poulan 10615

Cover-Carburetor

$

$

Not available

26

Poulan 25921

Knob

$

$

Not available

27

Poulan 25919

Choke Rod

$

$

Not available

28

Poulan 24383

Wire-Choke

$

$

Not available

29

Poulan 15245

Screw -10-24 x 1-5/8 Fil. Hd. Carburetor to Adaptor

$

$

Not available

30

Poulan 19104

Seal - Adaptor Shield

Note: Engine Gasket Kit contents, Key No. 50

$

$

Not available

31

Poulan 24349

Bracket- Carburetor Seal

$

$

Not available

32

Poulan 35094

Carburetor

Note: (See "Carburetor Assembly")

$

$

Not available

33

Poulan 19099

Gasket- Carburetor to Adaptor

Note: Engine Gasket Kit contents, Key No. 50

$

$

Not available

35

Poulan 69216

Line Kit

$

$

Not available

36

Poulan 91878

Fuel Pick-Up Ass'y

$

$

Not available

39

Poulan 15414

Screw-10-24x1-3/16 Hex Md. Adaptor to Cylinder

$

$

Not available

40

Poulan 19107

Seal- Carburetor Adaptor

Note: Engine Gasket Kit contents, Key No. 50

$

$

Not available

41

Poulan 24229

Carburetor Adaptor

$

$

Not available

42

Poulan 19101

Gasket - Adaptor to Cylinder

Note: Engine Gasket Kit contents, Key No. 50

$

$

Not available

43

Poulan 26015

Cylinder Shield

$

$

Not available

44

Poulan 15217

Nut-#10

$

$

Not available

45

Poulan 15168

Screw-10-24 x 5/8 Fit. Hd. Cylinder Shield to Crankcase

$

$

Not available

46

Poulan 25922

Plug

$

$

Not available

47

Poulan 24877

Retainer -Carb. Cover Knob

$

$

Not available

48

Poulan 25918

Air Filter

$

$

Not available

49

Poulan 19123

Gasket- Air Filter

Note: Engine Gasket Kit contents, Key No. 50

$

$

Not available

50

Poulan 69190

Kit-Gasket

Note: (contents indicated by * on "Crankcase / Cylinder Assembly", "Isolator Assembly", & "Handlebar Assembly"

$

$

Not available
