4000 J (UT-26042) - Green Machine String Trimmer Engine Internal Parts Diagram

String Trimmer

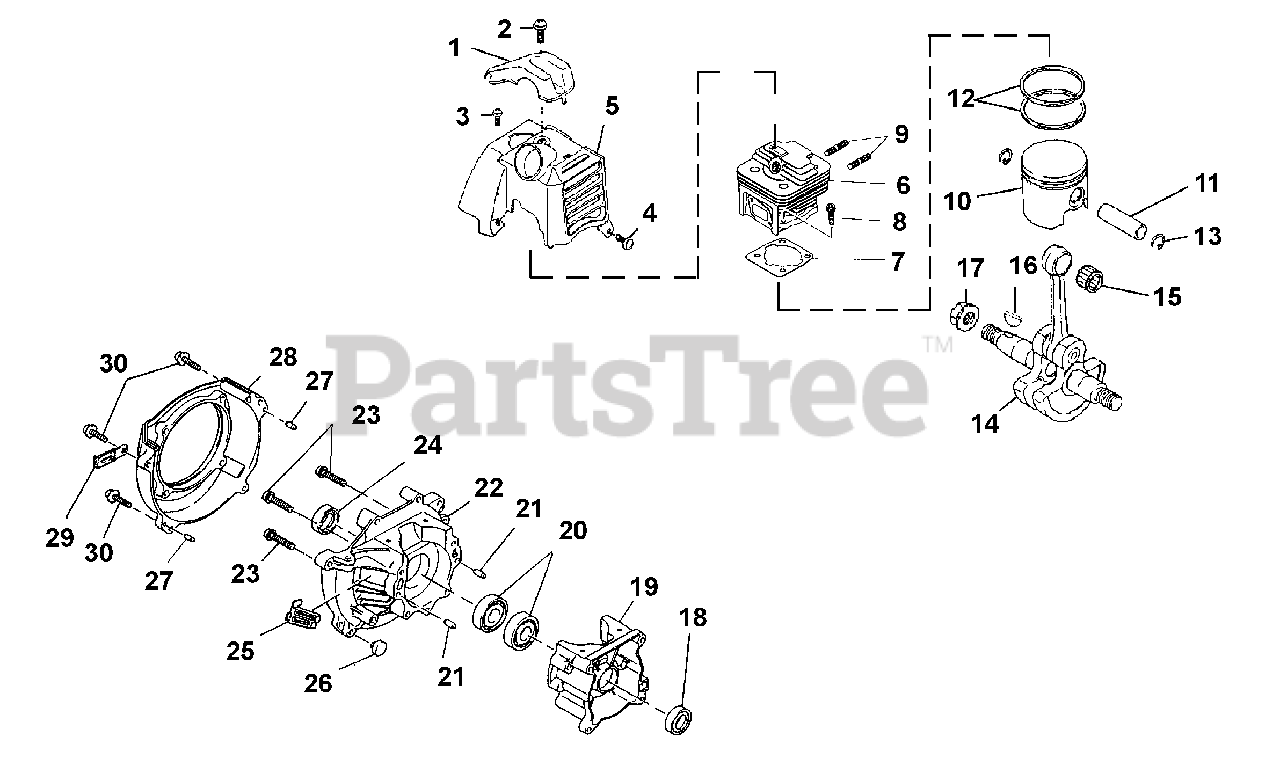

Engine Internal Parts Diagram

  • Title

1

Homelite 0926013

Plug Guard

$

$

Not available

2

Homelite 07723

Screw & Washer

Note: (Torque Specs 35-45 In/Lbs 4-5 Nm)

$

$

Not available

3

Homelite 07763

Screw & Washer

Note: (Torque Specs 35-45 In/Lbs 4-5 Nm)

$

$

Not available

4

Homelite 07723

Screw & Washer

Note: (Torque Specs 35-45 In/Lbs 4-5 Nm)

$

$

Not available

5

Homelite 0926014

Top Cover

$

$

Currently unavailable

6

Homelite A0926016

Cylinder

$

$

Currently unavailable

7

Homelite 0926018

Gasket, Cylinder

$

$

Not available

8

Homelite 0926019

Bolt & Washer

Note: (Torque Specs 35-45 In/Lbs 4-5 Nm)

$

$

Not available

9

Homelite 0926020

Stud

$

$

Not available

10

Homelite A0926021

Piston Assembly

$183.99

$

Usually ships in 3-7 days

0

11

Homelite 0926023

Pin, Piston

$

$

Not available

12

Homelite 0926024

Ring, Piston

$

$

Not available

13

Homelite 0926025

Clip, Piston Pin

$

$

Not available

14

Homelite 0926026

Crankshaft

$

$

Not available

15

Homelite 0926027

Needle Bearing

$

$

Not available

16

Homelite 0926028

Woodruff Key

$

$

Not available

17

Homelite 07734

Nut

Note: (Torque Specs 69-87 In/Lbs 7.8-9.8 Nm)

$

$

Not available

18

Homelite 07708

Oil Seal

$

$

Not available

19

Homelite 0926029

Case, Starter

$

$

Not available

20

Homelite 0926030

Ball Bearing

$

$

Not available

21

Homelite 07709

Dowel Pin

$

$

Not available

22

Homelite 0926031

Case, Drive

$

$

Not available

23

Homelite 0926032

Screw & Washer

Note: (Torque Specs 35-45 In/Lbs 4.5 Nm)

$

$

Not available

24

Homelite 0926033

Oil Seal

$

$

Not available

25

Homelite 0926034

Cover, Crankcase

$

$

Not available

26

Homelite 0926035

Pad, Fuel Tank

$

$

Not available

27

Homelite 07710

Dowel Pin

$

$

Not available

28

Homelite 0926036

Case, Fan

$

$

Currently unavailable

29

Homelite 07725

Clamp

$

$

Not available

30

Homelite 0926038

Screw & Washer

Note: (Torque Specs 35-45 In/Lbs 4.5 Nm)

$

$

Not available
