4000 J (UT-26042) - Green Machine String Trimmer Deflector Parts Diagram

String Trimmer

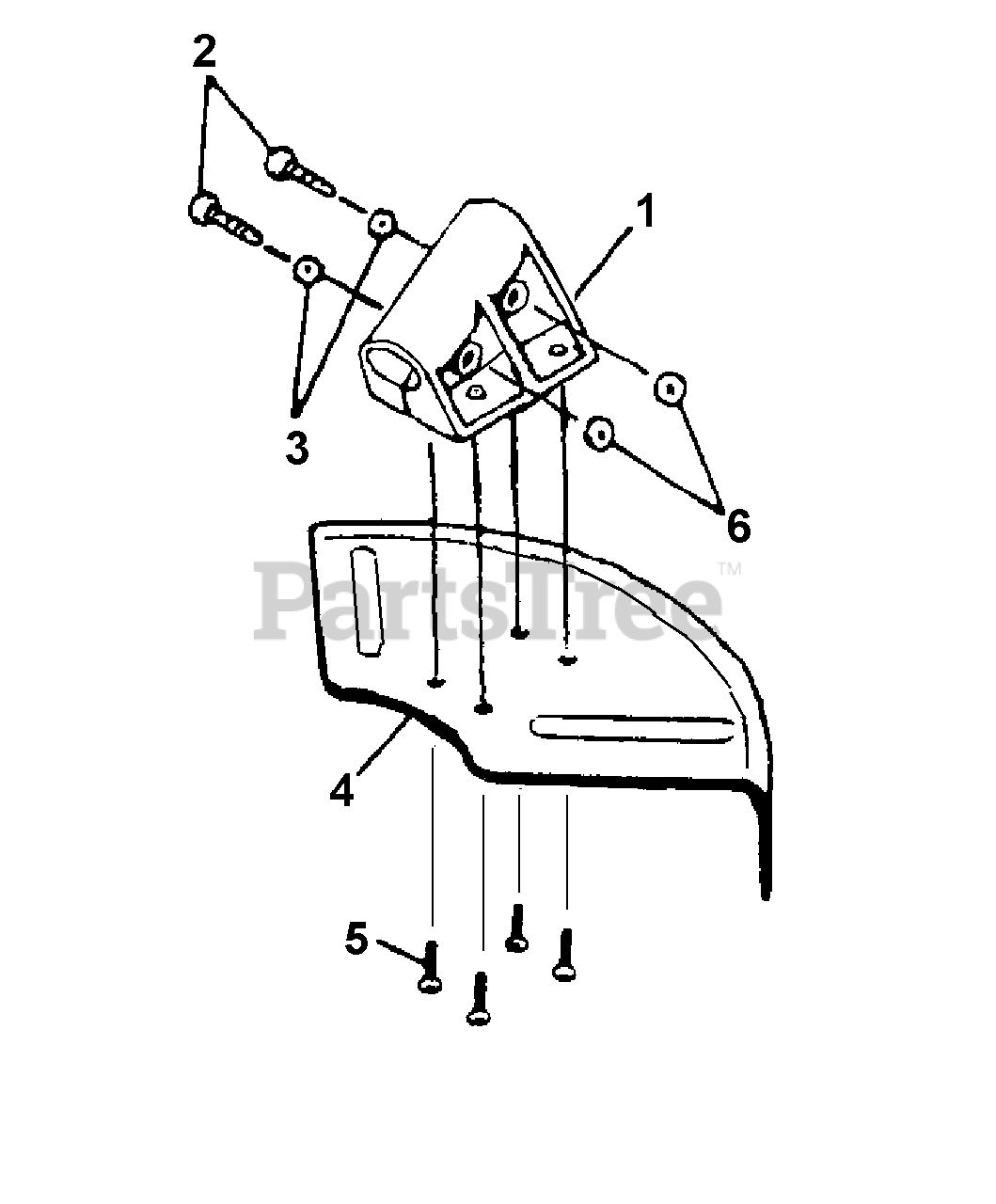

Deflector Parts Diagram

  • Title

Homelite GM24700A

Blade Guard Assembly

Note: (Includes items 1-6)

$

$

Not available

1

Homelite GM245201

Bracket, Blade Guard

$

$

Not available

2

Homelite GM011417

Screw

Note: (Torque Specs 25-35 In/Lbs 2.8-4.0 Nm)

$

$

Not available

3

Homelite GM040002

Washer

Note: (Torque Specs 25-35 In/Lbs 2.8-4.0 Nm)

$

$

Not available

4

Homelite GM247001

Guard
(Superseded to GM24700A)

$

$

Not available

5

Homelite GM011423

Screw
(Superseded to UP06817)

Note: (Torque Specs 35-43 In/Lbs 3.9-4.8 Nm)

$

$

Not available

6

Homelite 051012

Nut

$

$

Currently unavailable
