4000 J (UT-26042) - Green Machine String Trimmer Clutch Parts Diagram

String Trimmer

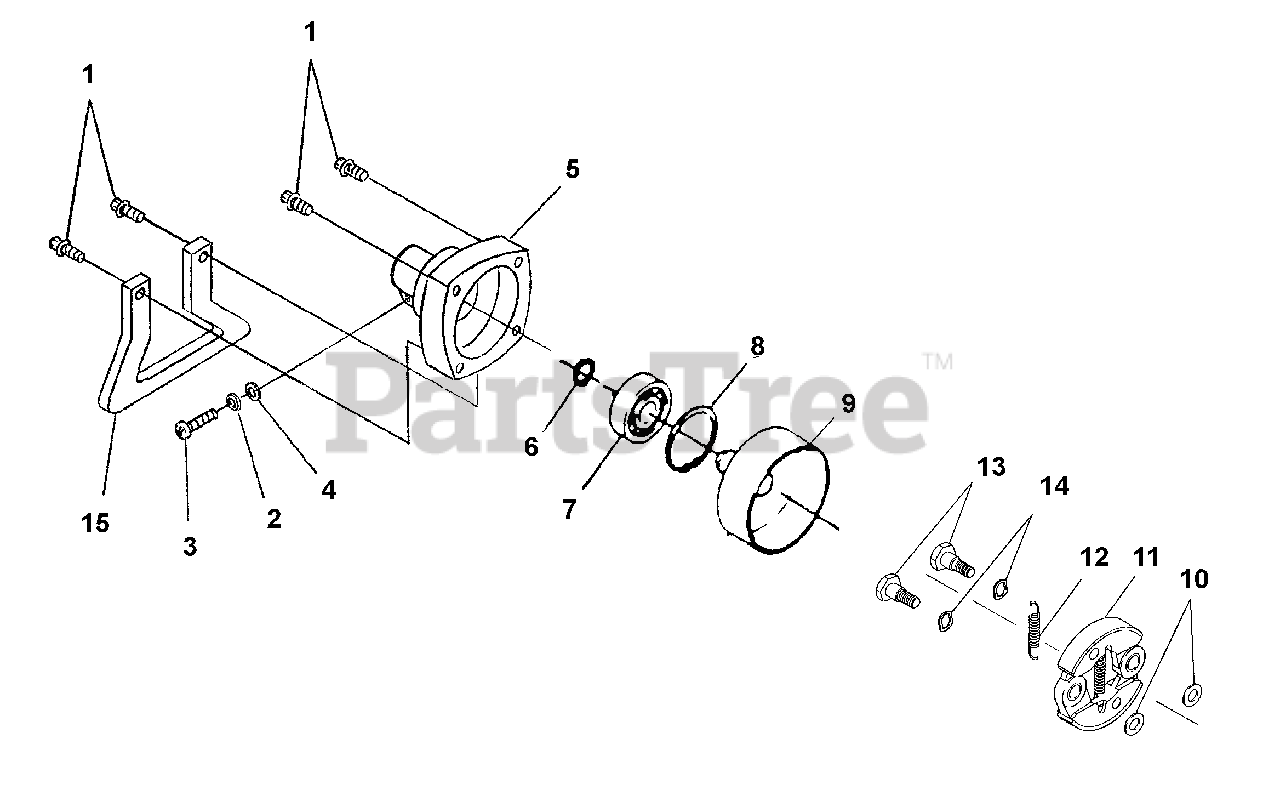

Clutch Parts Diagram

  • Title

1

Homelite GM030082

Bolt & Washer
(Superseded to UP03852)

Note: (Torque Specs 55-65 In/Lbs 6.2-7.3 Nm)

$

$

Not available

Homelite GM400398

Clutch Case Assembly

$

$

Not available

2

Homelite GM040021

Washer

$

$

Not available

3

Homelite GM012302

Screw
(Superseded to 88180)

Note: (Torque Specs 55-65 In/Lbs 6.2-7.3 Nm)

$

$

Not available

4

Homelite GM040119

Washer

$

$

Not available

5

Homelite GM406115

Clutch Case

$175.99

$

Usually ships in 3-7 days

0

6

Homelite GM062105

Snap Ring
(Superseded to 04031)

$

$

Not available

7

Homelite GM070001

Bearing

$

$

Currently unavailable

8

Homelite GM062008

Snap Ring
(Superseded to 03948)

$

$

Not available

9

Homelite GM406718

Clutch Drum

$

$

Not available

10

Homelite GM042802

Washer

$

$

Not available

11

Homelite GM400609

Clutch Shoe Kit

$

$

Not available

12

Homelite GM407631

Clutch Spring

$

$

Not available

13

Homelite 0926066

Bolt

Note: (Torque Specs 69-87 In/Lbs 7.8-9.8 Nm)

$

$

Not available

14

Homelite 0926067

Washer

$

$

Not available

15

Homelite A08132A

Stand

Note: (Torque Specs 55-65 In/Lbs 6.2-7.3 Nm)

$

$

Not available
