4000 J (UT-26022-B) - Green Machine String Trimmer Exhaust System Parts Diagram

String Trimmer

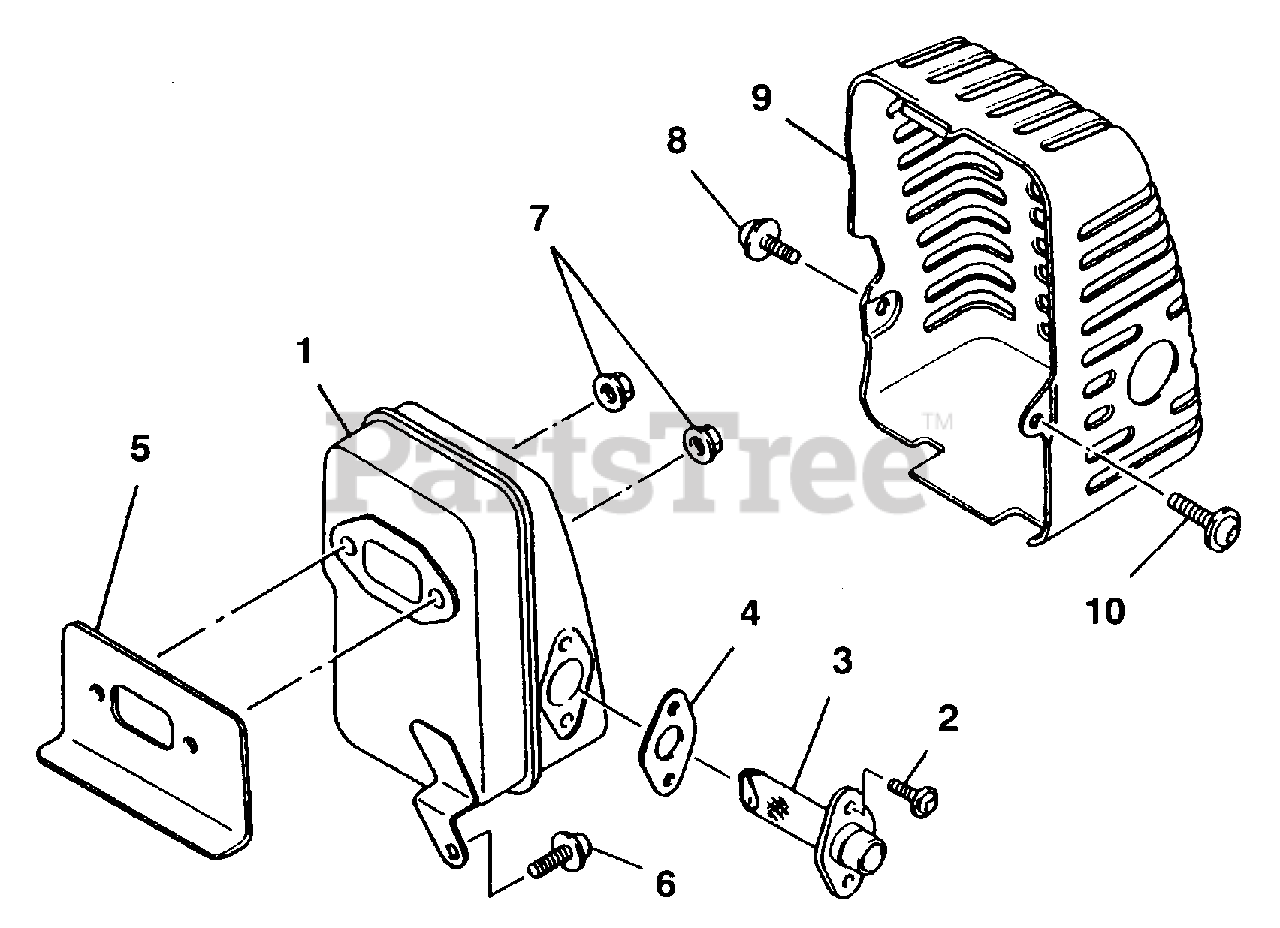

Exhaust System Parts Diagram

  • Title

1

Homelite 0926053

Muffler Assembly

$180.99

$

Usually ships in 3-7 days

0

2

Homelite 0926054

Screw & Washer

$

$

Not available

3

Homelite 0926055

Tail Pipe

Note: Torque Specs: 35-45 In/Lbs; 4.5 Nm

$

$

Not available

4

Homelite 0926056

Gasket, Tail Pipe

Note: Torque Specs: 35-45 In/Lbs; 4.5 Nm

$

$

Not available

5

Homelite 0926057

Gasket, Muffler

$

$

Not available

6

Homelite 0926058

Screw & Washer
(Superseded to UP07226)

$

$

Not available

7

Homelite 0926059

Nut, Flange

Note: Torque Specs: 35-45 In/Lbs; 4.5 Nm

$

$

Not available

8

Homelite 0926060

Screw & Washer

Note: Torque Specs: 35-45 In/Lbs; 4.5 Nm

$

$

Not available

9

Homelite 0926061

Cover, Muffler

$

$

Not available

10

Homelite 0926062

Screw & Washer
(Superseded to 0926011)

Note: Torque Specs: 35-45 In/Lbs; 4.5 Nm

$

$

Not available
