4000 J (UT-26022-A) - Green Machine String Trimmer Handles Parts Diagram

String Trimmer

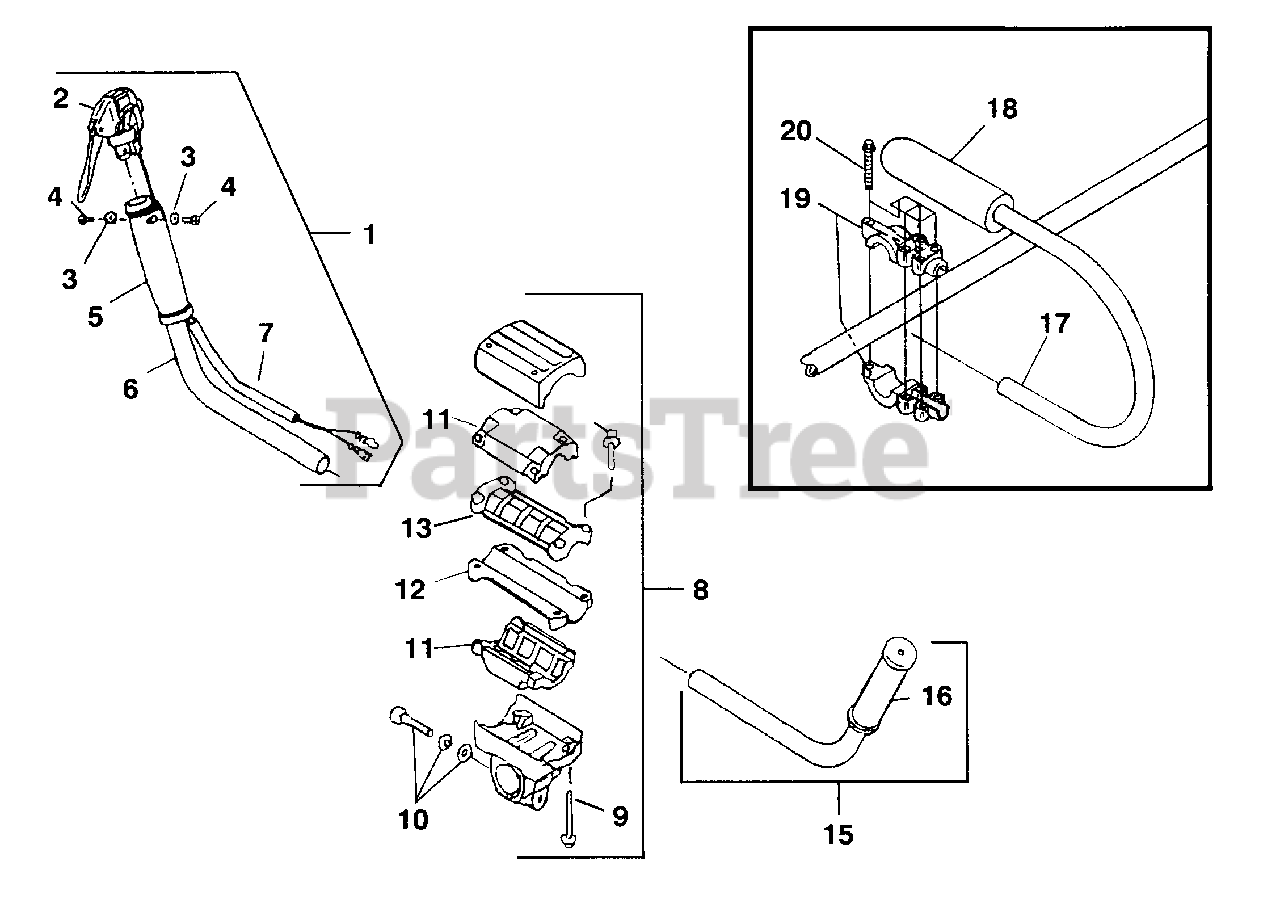

Handles Parts Diagram

  • Title

1

Homelite A08266

HANDLE ASSY R.H.
(Superseded to UP06647)

Note: MODEL 4000B

$

$

Not available

2

Homelite GM400386

THROTTLE SWITCH ASSY

Note: MODEL 4000B

$54.99

$

Usually ships in 3-7 days

0

3

Homelite GM040025

WASHER

Note: MODEL 4000B

$

$

Not available

4

Homelite GM012302

SCREW
(Superseded to 88180)

Note: MODEL 4000B Torque Specs: 5-20 In/Lbs; 5-23 Nm

$

$

Not available

5

Homelite GM405504

GRIP R.H.

Note: MODEL 4000B

$

$

Currently unavailable

6

Homelite GM406801

HANDLE

Note: MODEL 4000B

$

$

Currently unavailable

7

Homelite GM403501

TUBE/WIRE HARNESS

Note: MODEL 4000B

$

$

Currently unavailable

8

Homelite A08442

HANDLE JOINT ASSY

Note: MODEL 4000B

$

$

Currently unavailable

9

Homelite 03944

BOLT

Note: MODEL 4000B Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Not available

10

Homelite GM012301

SCREW & WASHERS
(Superseded to 03943)

Note: MODEL 4000B Torque Specs: 35-43 In/Lbs; 3.9-4.8 Nm

$

$

Not available

11

Homelite GM405506

ISOLATING RUBBER

Note: MODEL 4000B

$

$

Not available

12

Homelite GM406113

PIPE FITTING

Note: MODEL 4000B

$

$

Not available

13

Homelite GM406114

PIPE FITTING

Note: MODEL 4000B

$26.99

$

Usually ships in 3-7 days

0

14

Homelite GM032803

BOLT

Note: MODEL 4000B Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$2.99

$

Usually ships in 3-7 days

0

15

Homelite GM400378

HANDLE ASSY L.H.

Note: MODEL 4000B

$

$

Not available

16

Homelite GM405505

GRIP L.H.

Note: MODEL 4000B

$14.99

$

Usually ships in 3-7 days

0

17

Homelite A08475

HANDLE ASSY
(Superseded to UP06385)

Note: MODEL 4000J

$

$

Not available

18

Homelite GM300142

GRIP
(Superseded to UP06385)

Note: MODEL 4000J

$

$

Not available

19

Homelite GM300629

BRACKET ASSY

Note: MODEL 4000J

$

$

Not available

20

Homelite 825491

BOLT
(Superseded to UP05542)

Note: MODEL 4000J Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available
