4000 B (UT-26023-A) - Green Machine String Trimmer Gearcase Parts Diagram

String Trimmer

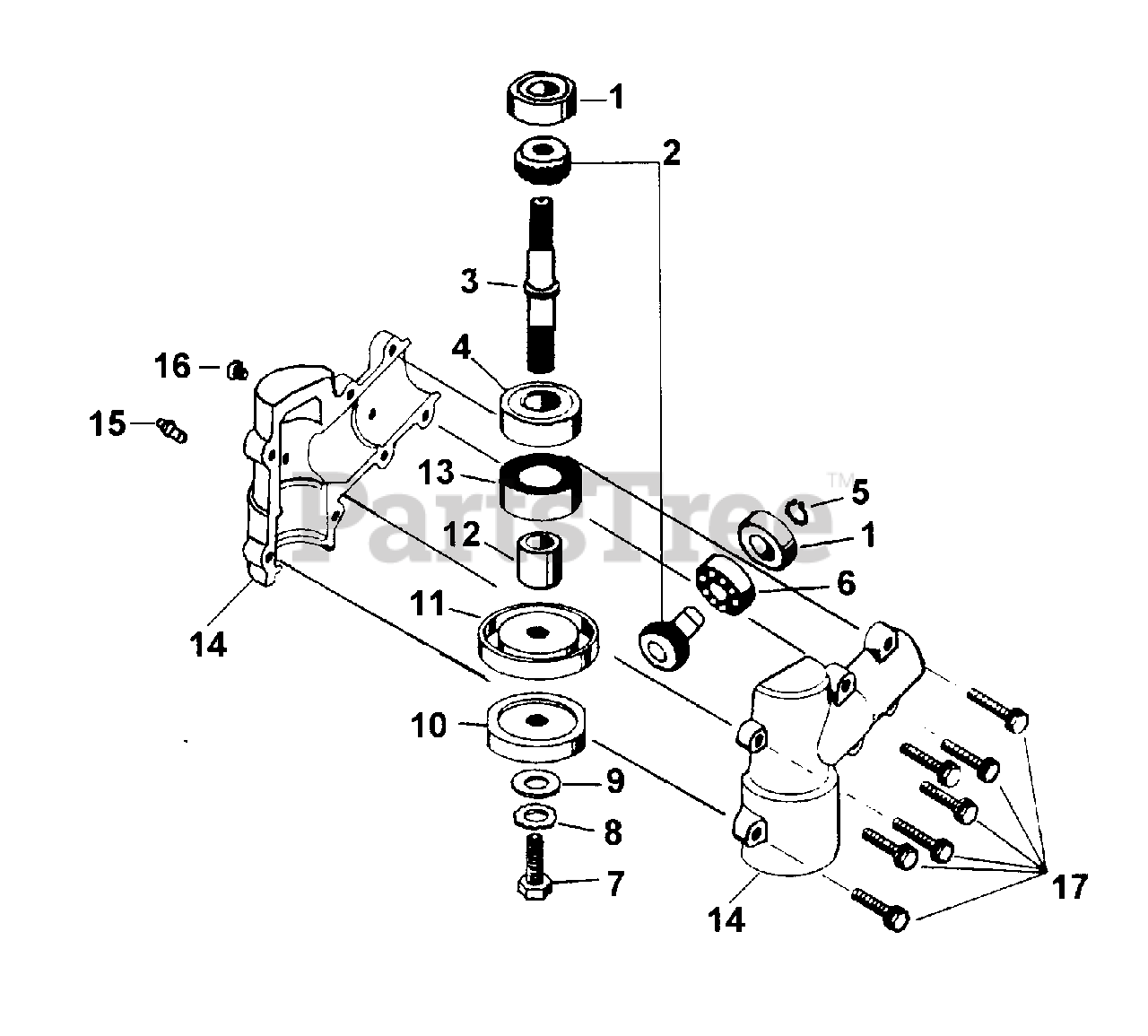

Gearcase Parts Diagram

  • Title

Homelite GM410307

GEARCASE ASSY
(Superseded to UP05123)

$

$

Not available

1

Homelite 09142

BEARING

$

$

Not available

2

Homelite GM300625

GEAR SET KIT
(Superseded to UP05123)

$

$

Not available

3

Homelite GM406714

SHAFT, GEAR

$

$

Currently unavailable

4

Homelite 09144

BEARING

$

$

Not available

5

Homelite GM060007

SNAP RING

$

$

Not available

6

Homelite 09143

BEARING

$

$

Not available

7

Homelite GM400225

BOLT

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available

8

Homelite GM040007

WASHER
(Superseded to UP06519)

$

$

Not available

9

Homelite GM041003

WASHER

$

$

Not available

10

Homelite GM406715

HOLDER B

$

$

Not available

11

Homelite GM406716

HOLDER A

$

$

Not available

12

Homelite GM406729

COLLAR

$

$

Currently unavailable

13

Homelite 09145

BEARING
(Superseded to UP07297)

$44.99

$

Usually ships in 3-7 days

0

14

Homelite GM300610

HOUSING SET

$

$

Currently unavailable

15

Homelite GM286716

GREASE FITTING

$

$

Not available

16

Homelite 825491

SCREW, SELF TAPPING
(Superseded to UP05542)

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

17

Homelite 825491

SCREW, SELF TAPPING
(Superseded to UP05542)

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available
