4000 B (UT-26023-A) - Green Machine String Trimmer Clutch Parts Diagram

String Trimmer

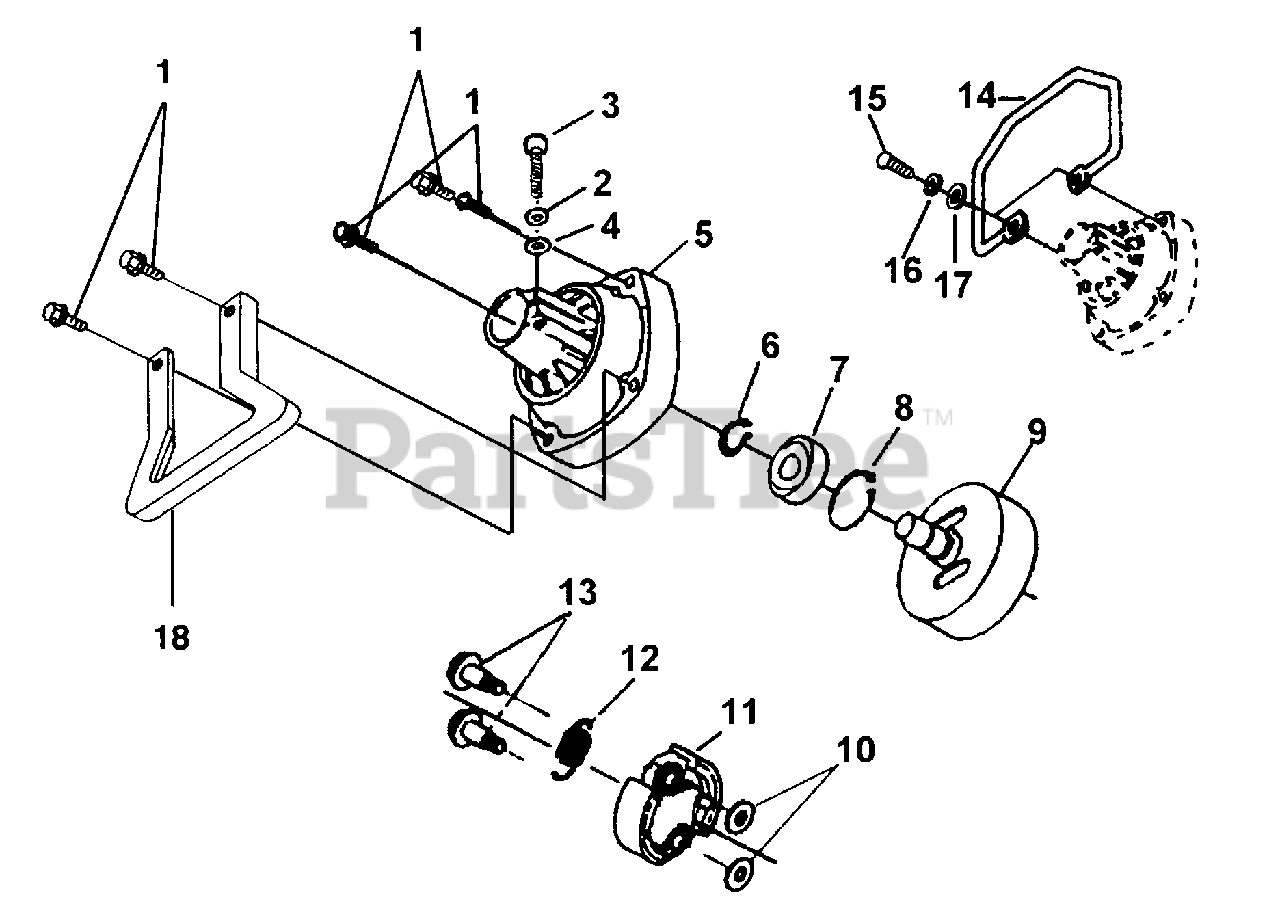

Clutch Parts Diagram

  • Title

Homelite GM400398

CLUTCH CASE ASSY

$

$

Not available

1

Homelite GM030082

BOLT & WASHER
(Superseded to UP03852)

Note: Torque Specs: 55-65 6.2-7.3 Nm

$

$

Not available

2

Homelite GM040021

WASHER

$

$

Not available

3

Homelite GM012302

SCREW
(Superseded to 88180)

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available

4

Homelite GM040119

WASHER

$

$

Not available

5

Homelite GM406115

CLUTCH CASE

$175.99

$

Usually ships in 3-7 days

0

6

Homelite GM062105

SNAP RING
(Superseded to 04031)

$

$

Not available

7

Homelite GM071012

BEARING

$

$

Not available

8

Homelite 03948

SNAP RING

$

$

Not available

9

Homelite GM406718

CLUTCH DRUM

$

$

Not available

10

Homelite GM042802

WASHER

$

$

Not available

11

Homelite GM400609

CLUTCH SHOE KIT

$

$

Not available

12

Homelite GM407631

CLUTCH SPRING

$

$

Not available

13

Homelite GM407632

BOLT

Note: Torque Specs: 69-87 In/Lbs; 7.8-9.8 Nm

$

$

Not available

14

Homelite GM400200

GUARD, HEAT (4000j)

$

$

Not available

15

Homelite 88212

BOLT (4000j)

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available

16

Homelite GM040002

WASHER, LOCK (4000j)

$

$

Not available

17

Homelite GM041012

WASHER, FLAT (4000j)
(Superseded to 84006)

$

$

Not available

18

Homelite A08132A

STAND

$

$

Not available
