400 (990234) - Simplicity Wonderboy Rear-Engine Riding Mower DIFFERENTIAL ASSEMBLY-Model 400 Parts Diagram

Wonderboy Rear-Engine Riding Mower

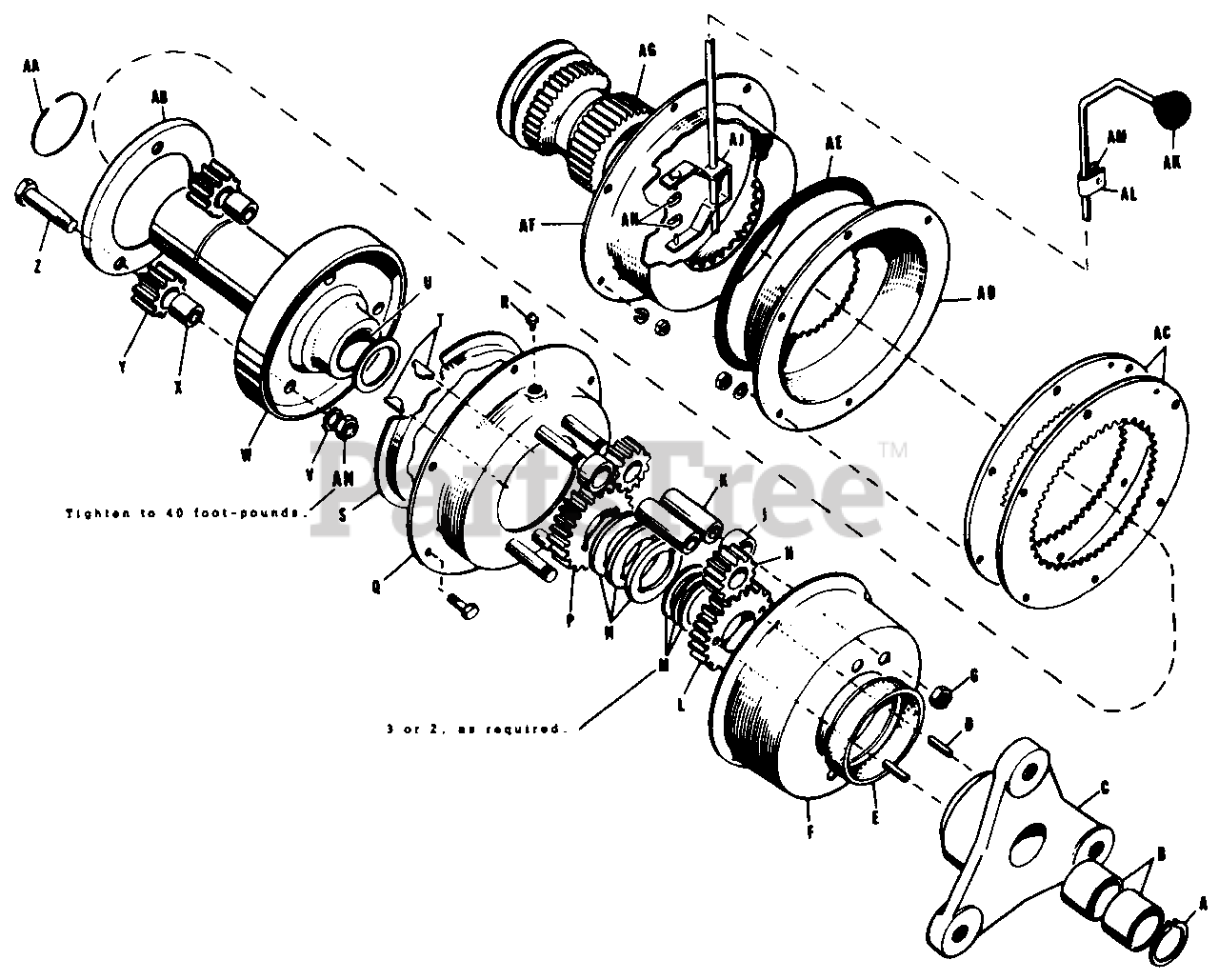

DIFFERENTIAL ASSEMBLY-Model 400 Parts Diagram

  • Title

A

Simplicity 8151063

Ring, Retaining

$

$

Not available

B

Simplicity 2153068SM

Bearing

$31.99

$

Usually ships in 2-12 days

0

C

Simplicity 121088

Hub, Wheel, R.H.

$

$

Not available

D

Simplicity 103034

Pin, Roll

$

$

Not available

E

Simplicity 2121190SM

Seal, Differential Cover

$

$

Not available

F

Simplicity 121154

Cover, Differential

$

$

Not available

G

Simplicity 2717510

Nut, Lock, Hex Full 3/8-24

$

$

Not available

H

Simplicity 2121311

Pinion, Differential

$

$

Not available

J

Simplicity 2121084SM

Spacer, Differential

$12.99

$

Usually ships in 2-12 days

0

K

Simplicity 2121083SM

Spindle, Pinion, Differential

$13.99

$

In Stock, only 1 left!

0

L

Simplicity 121313

Gear Differential

$

$

Not available

M

Simplicity 153088

Washer

$

$

Not available

N

Simplicity 153077

Washer, Axle

$

$

Not available

P

Simplicity 2121312

Gear, Differential

$

$

Not available

Q

Simplicity 121152

Carrier Assembly

$

$

Not available

R

Simplicity 2727002

Fitting, Grease, Alemite #1641

$

$

Not available

S

Simplicity 121185

Plate, Thrust

$

$

Not available

T

Simplicity 2725501

Key, Hi-Pro HP608

$

$

Not available

U

Simplicity 2153068SM

Bearing

$31.99

$

Usually ships in 2-12 days

0

V

Simplicity 2721004

Washer, Lock, External Shakeproof

$

$

Not available

W

Simplicity 121164

Spider Assembly

$

$

Not available

X

Simplicity 121163

Spacer, Pinion

$

$

Not available

Y

Simplicity 121118

Pinion

$

$

Not available

Z

Simplicity 2121184

Bolt, Hex Hd.

$

$

Not available

AA

Simplicity 121167

Ring, Snap

$

$

Not available

AB

Simplicity 121162

Ring, Bolt

$

$

Not available

AC

Simplicity 121151

Gear, Ring

$

$

Not available

AD

Simplicity 121148

Cover Assembly

$

$

Not available

AE

Simplicity 121186

Seal, Housing Assembly

$

$

Not available

AF

Simplicity 121146

Housing Assembly

$

$

Not available

AG

Simplicity 121187

Sun Gear Assembly

$

$

Not available

AH

Simplicity 121169

Block, Shift

$

$

Not available

AJ

Simplicity 121375

Clevis Assembly

$

$

Not available

AK

Simplicity 2122005SM

Knob

$14.99

$

Usually ships in 2-12 days

0

AL

Simplicity 153074

Guide, Rod

$

$

Not available

AM

Simplicity 2121175SM

Liner

$7.99

$

Usually ships in 2-12 days

0

AN

Simplicity 2718015

Nut, Full Hex

$

$

Not available
