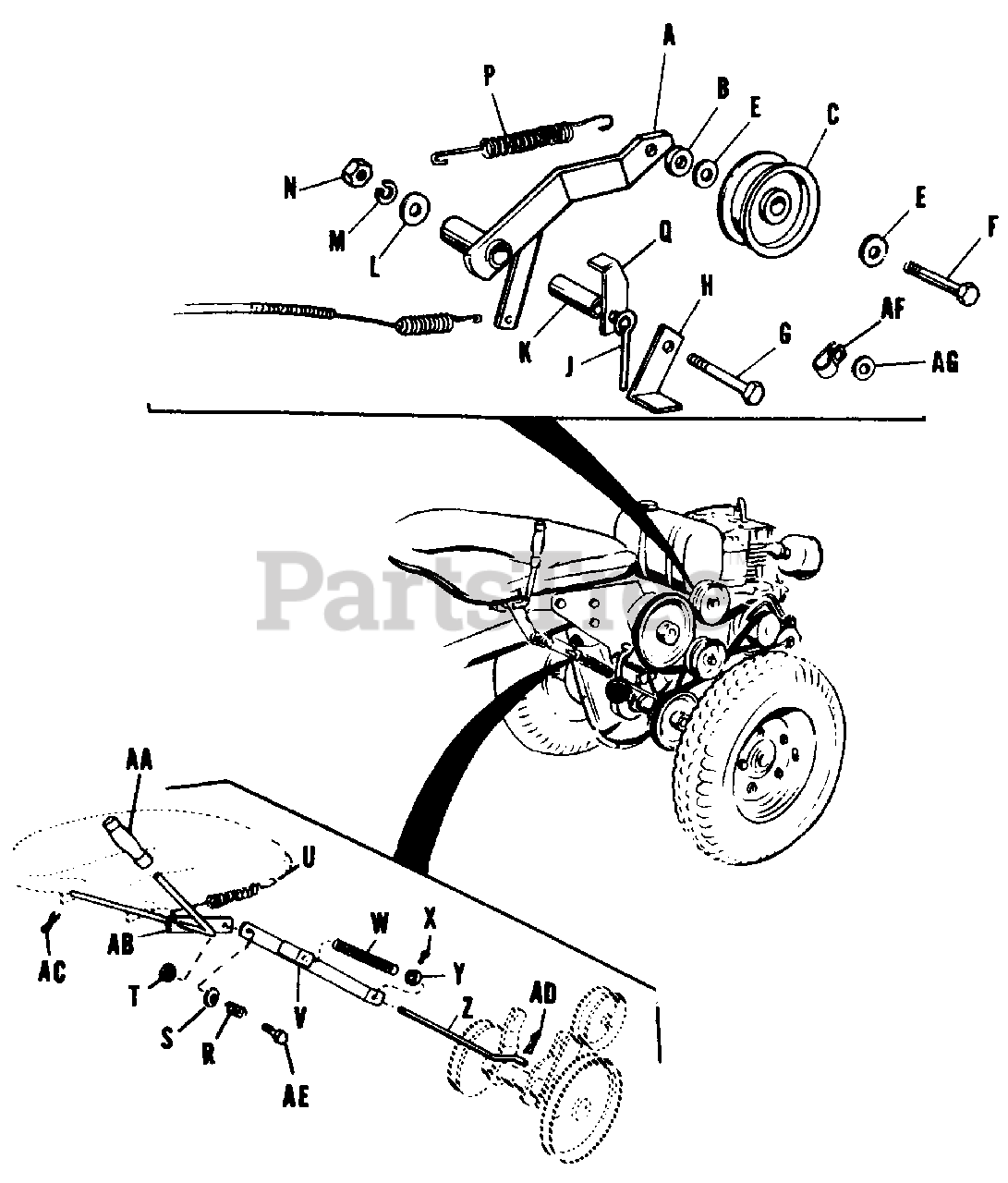

400 (990234) - Simplicity Wonderboy Rear-Engine Riding Mower CONTROL LINKAGE AND POWER TAKE-OFF-Model 400 Parts Diagram

Wonderboy Rear-Engine Riding Mower

CONTROL LINKAGE AND POWER TAKE-OFF-Model 400 Parts Diagram

  • Title

A

Simplicity 121369

Idler Lever Assembly

$

$

Not available

B

Simplicity 1663752SM

Spacer

$5.99

$

In Stock, only 2 left!

0

C

Simplicity 2154534SM

Idler Pulley

$32.99

$

In Stock, only 1 left!

0

E

Simplicity 2719002

Washer, Plain, 5/16

$

$

Not available

F

Simplicity 2705009

Capscrew, Hex Hd., 3/8 x 1 1/2

$

$

Not available

G

Simplicity 705013

Capscrew, Hex Hd., 3/8 x 3

$8.99

$

In Stock, only 1 left!

0

H

Simplicity 121135

Guide, Belt

$

$

Not available

J

Simplicity 121044

Pin, Lock

$

$

Not available

K

Simplicity 1729261SM

Spacer, Idler Lever

$13.99

$

Usually ships in 2-12 days

0

L

Simplicity 2719001

Washer, Plain, 3/8

$

$

Not available

M

Simplicity 2720002

Washer, Lock 3/8

$

$

Not available

N

Simplicity 2717003

Nut, Hex, Full, 3/8

$

$

Not available

P

Simplicity 2121037SM

Spring, Idler Lever

$

$

Not available

Q

Simplicity 121038

Stop, Lever

$

$

Not available

R

Simplicity 1729278SM

Spring

$2.49

$

Usually ships in 2-12 days

0

S

Simplicity 2719002

Washer, Plain, 5/16

$

$

Not available

T

Simplicity 2717510

Nut, Lock, Full Hex, 3/8-16

$

$

Not available

U

Simplicity 2121037SM

Spring

$

$

Not available

V

Simplicity 1729265SM

Guide Assembly, Clutch Rod

$41.99

$

Usually ships in 2-12 days

0

W

Simplicity 1729277SM

Spring

$6.99

$

In Stock, only 1 left!

0

X

Simplicity 2713001

Set Screw, Sq. Hd., 1/4 x 3/8

$

$

Not available

Y

Simplicity 1729276SM

Set Collar

$

$

Not available

Z

Simplicity 121289

Rod, P.T.O. Clutch

$

$

Not available

AA

Simplicity 121201

Grip

$

$

Not available

AB

Simplicity 121304

Lever Assembly, Clutch

$

$

Not available

AC

Simplicity 2722006

Cotter Pin, 1/8 x 1

$

$

Not available

AD

Simplicity 2722016

Cotter Pin, 3/32 x 5/8

$

$

Not available

AE

Simplicity 2705016

Capscrew, Hex Hd., 3/8 x 1 1/4

$

$

Not available

AF

Simplicity 8061117

Clip

$

$

Not available

AG

Simplicity 2719001

Washer, Plain, 3/8

$

$

Not available
