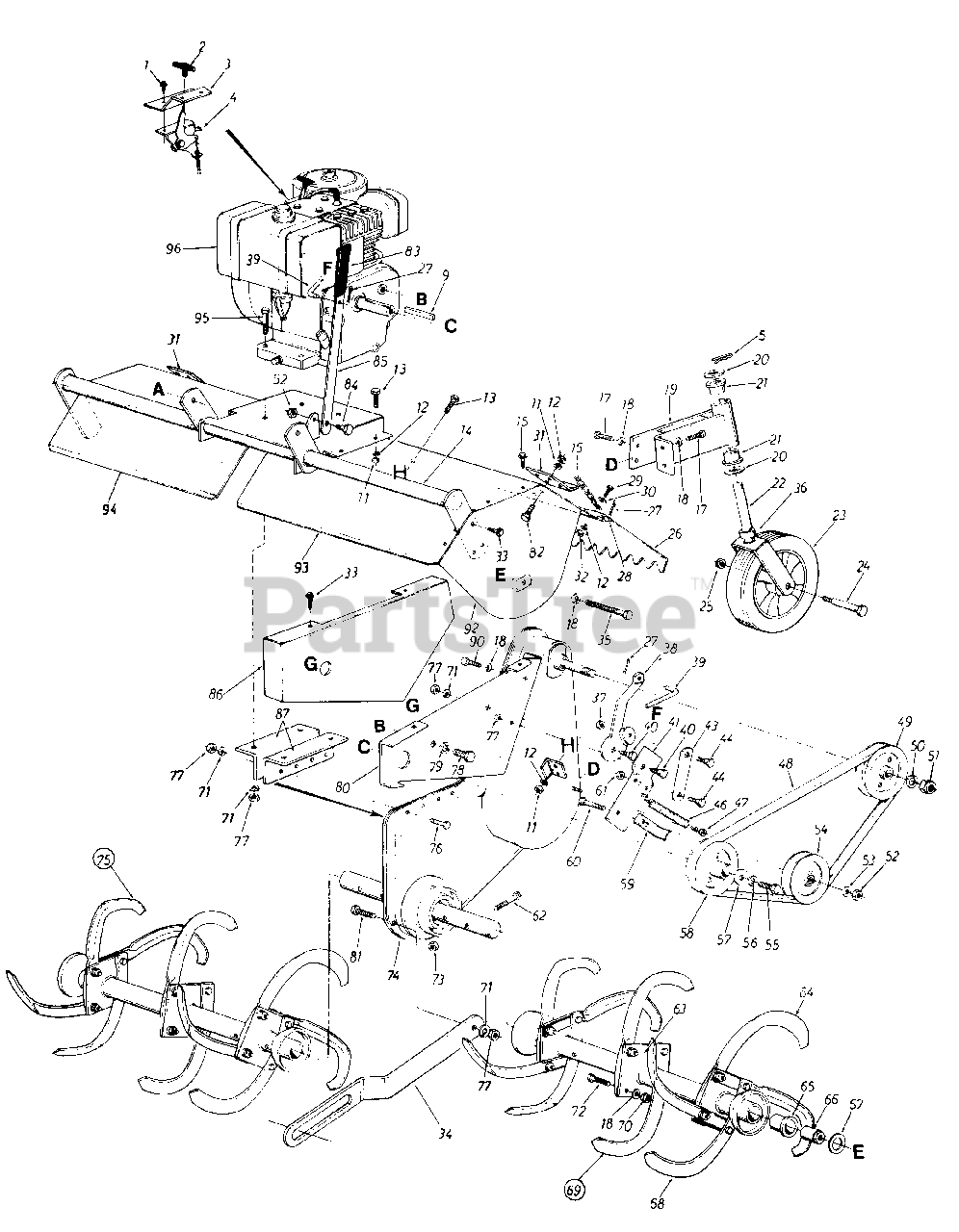

400 (196-400-100) - Cub Cadet 8hp Rear Tiller Attachment (1986) att Parts Parts Diagram

8hp Rear Tiller Attachment

Parts Parts Diagram

  • Title

1

Cub Cadet 710-0227

Hex Wash. Hd. Self-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 731-0108

Throttle Control Knob- (Service Only)

$9.49

$

In Stock, only 2 left!

0

3

Cub Cadet 04971

Throttle Control Bracket

$

$

Currently unavailable

4

Cub Cadet 746-0384

Throttle Control Ass y. Comp.

$

$

Currently unavailable

5

Cub Cadet 714-0147

Internal Cotter Pin

$4.99

$

In Stock, Qty 6

0

Cub Cadet 04997

Link Rod Assembly

Variations

Cub Cadet 04997-0637

ROD ASSEMBLY-L - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 714-0114

Sq. Key 1/4" x 1/4" x 2.00" Lg.
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

13

Cub Cadet 710-0195

Hex Bolt 1/4-28 x .62" Lg.*
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

14

Cub Cadet 04966

Support Frame Assembly
(Superseded to 04966A)

Variations

Cub Cadet 04966-0498

USE 04966A-0498 FRAME ASSY-SU - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 04966-0637

FRAME ASSEMBLY-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

15

Cub Cadet 710-0429

Hex Hd. "B" Tap Scr. #10 x.62" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 727-0225

#2 Dog Chain x 20" Lg. (2 Req'd.)

$

$

Not available

17

Cub Cadet 710-0180

Hex Bolt 3/8-24 x .75" Lg.*

$6.99

$

In Stock, only 3 left!

0

18

Cub Cadet 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 04978

Swivel Wheel Support
(Superseded to 04978-0637)

Variations

Cub Cadet 04978-0498

USE 04978-0637 SUPPORT-SWIVEL - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 04978-0637

SUPPORT-SWIVEL WHE - POWDER BLACK (0637)

$

$

Not available

$

$

20

Cub Cadet 736-0188

Fl-Wash. 3/4" I.D. x 1.50" O.D.

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 741-0382

Flange Bearing 3/4" I.D. x 1.00" O.D.

$

$

Not available

22

Cub Cadet 04981

Swivel Wheel Caster

$

$

Not available

23

Cub Cadet 734-0979

Wheel Assembly 10.0 x 2.75

$

$

Not available

24

Cub Cadet 738-0476

Shoulder Bolt .623" I.D. x 3.62" Lg.

$

$

Not available

25

Cub Cadet 712-0290

Hex Cent. L-Nut 7/16-14 Thd.

$4.99

$

In Stock, Qty 11

0

26

Cub Cadet 04985

L.H. Shield Hinge Flap

Variations

Cub Cadet 04985-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 04985-0637

FLAP-HINGE - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 04986

R.H. Shield Hinge Flap

Note: (Not Shown)

Variations

Cub Cadet 04986-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 04986-0637

FLAP-HINGE - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg. *

$3.99

$

In Stock, only 2 left!

0

28

Cub Cadet 747-0340

L.H. Flap Rod

$

$

Currently unavailable

Cub Cadet 747-0339

R.H. Flap Rod

Note: (Not Shown)

$

$

Currently unavailable

29

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0173

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 14891

Brace Tine Shield

Variations

Cub Cadet 14891-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 14891-0637

BRACE TINE - POWDER BLACK (0637)

$

$

Not available

$

$

32

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

33

Cub Cadet 710-0776

Hex Wash. Hd. Self-Tap Scr. 1/4" x.62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

34

UNKNOWN

$

$

Not available

35

Cub Cadet 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 711-0469

Spacer .752" I.D. x 1.25" O.D.

$7.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

38

Cub Cadet 04987

Clutch Lever

Variations

Cub Cadet 04987-0637

LEVER-CLUT - POWDER BLACK (0637)

$

$

Not available

$

$

39

Cub Cadet 747-0379

Clutch Rod

$

$

Not available

40

Cub Cadet 738-0140

Shoulder Bolt 7/16" Dia. x 1.75" Lg.

$5.99

$

In Stock, Qty 15

0

41

Cub Cadet 04992

Idler Bracket

Variations

Cub Cadet 04992-0637

IDLER BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

43

Cub Cadet 747-0342

Clutch Link 3.62" Lg.

Variations

Cub Cadet 747-0342-0637

CLUTCH LINK - POWDER BLACK (0637)

$

$

Not available

$

$

44

Cub Cadet 738-0155

Shoulder Bolt .435" Dia. x .160" Lg.
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 732-0384

Extension Spring .62 O.D. x 6.12" Lg.
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

47

Cub Cadet 712-0214

Hex Crown Nut 3/8-24 Thd.

$6.49

$

In Stock, only 3 left!

0

48

Cub Cadet 754-0253

"V"-Belt 1/2" X 43" Lg. (Kevlar)

$

$

Not available

49

Cub Cadet 756-0351

1/2" "V"-Pulley 4.75" O.D. x .625" Bore

$

$

Not available

50

Cub Cadet 736-0158

L-Wash. 5/8" I.D.*

$4.49

$

In Stock, Qty 11

0

51

Cub Cadet 712-0221

Hex Ins. L-Nut 5/8-18 Thd.

$

$

Not available

52

Cub Cadet 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

53

Cub Cadet 736-0140

Fl-Wash. 3/8" I.D.

$7.49

$

In Stock, Qty 7

0

54

Cub Cadet 756-0293

Idler Pulley 4.0" O.D.
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

55

Cub Cadet 710-0314

Hex Bolt

$4.49

$

In Stock, Qty 13

0

56

Cub Cadet 736-0171

L-Wash 7/16" I.D.*

$4.49

$

In Stock, only 4 left!

0

57

Cub Cadet 736-0319

Fl-Wash. 7/16" I.D. x 1.38" O.D.
(Superseded to 936-0319)

$11.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 756-0350

1/2" "V"-Pulley .475" O.D. x 1.00" Bore

$

$

Not available

59

Cub Cadet 13819

Belt Guard

Variations

Cub Cadet 13819-0637

BELT GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

60

Cub Cadet 710-0520

Hex Bolt 3/8-16 x 1.50" Lg.*

$4.49

$

In Stock, Qty 6

0

61

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

62

Cub Cadet 710-0780

Hex Bolt 7/16-14 x 2.00" Lg.

$

$

Not available

63

Cub Cadet 04970

Tine Adapter Assembly

Variations

Cub Cadet 04970-0637

ADAPTER AS - POWDER BLACK (0637)

$

$

Not available

$

$

64

Cub Cadet 742-0243

Tine-L.H.

$

$

Not available

65

Cub Cadet 731-0374

Flange Bearing 1.00" I.D.
(Superseded to 931-0374)

$7.49

$

In Stock, Qty 5

0

66

Cub Cadet 748-0276

Spacer

$

$

Not available

67

Cub Cadet 736-0281

Thrust Wash. 1/2" I.D. x 1.55" O.D.
(Superseded to 936-0163)

$

$

Not available

68

Cub Cadet 742-0244

Tine-R.H.
(Superseded to 742-0244-0637)

Variations

Cub Cadet 742-0244-0637

TINE-RH BLADE - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 04995

Tine Assembly Comp.-L. H .
(Superseded to 04995-0637)

$

$

Not available

70

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

71

Cub Cadet 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

72

Cub Cadet 710-0459

Hex Bolt 3/8-24 x 1.50" Lg.*
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

73

Cub Cadet 712-0290

Hex Cent. L-Nut 7/16-14 Thd.

$4.99

$

In Stock, Qty 11

0

74

Cub Cadet 04991

Chain Case Ass'y. Comp.

Variations

Cub Cadet 04991-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 04991-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 04991-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

75

Cub Cadet 04996

Tine Assembly Comp.-R. H .

Variations

Cub Cadet 04996-0637

TINE ASSEMBLY- - POWDER BLACK (0637)

$

$

Not available

$

$

76

Cub Cadet 710-0376

Hex Bolt 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, Qty 20+

0

77

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

78

Cub Cadet 710-0777

Hex Bolt 1/2-20 x .88" Lg. (Grade 5)

$

$

Currently unavailable

79

Cub Cadet 736-0921

L-Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 6

0

80

Cub Cadet 04988

Clutch Support Bracket

$

$

Currently unavailable

81

Note: Purchase Locally

$

$

Not available

82

Cub Cadet 710-0412

Hex Bolt 1/4-28 x .75" Lg.*

$5.99

$

In Stock, Qty 9

0

83

Cub Cadet 720-0142

Plastic Grip

$3.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 738-0183

Shoulder Bolt .498 Dia. x .212 Lg.
(Superseded to 938-0183)

$

$

Not available

85

Cub Cadet 720-0378

Clutch Handle

$

$

Currently unavailable

86

Cub Cadet 14298

Clutch Support Shroud
(Superseded to 14298-0637)

Variations

Cub Cadet 14298-0498

USE 14298-0637 SHROUD-CLUTCH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 14298-0637

SHROUD-CLUTCH SUP - POWDER BLACK (0637)

$

$

Not available

$

$

87

Cub Cadet 04519

Engine Mounting Bracket

$

$

Not available

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

90

Cub Cadet 710-0201

Hex Bolt 3/8-16 x .62" Lg

$

$

Not available

92

Cub Cadet 04975

L.H.-Side Plate
(Superseded to 04975-0637)

Variations

Cub Cadet 04975-0498

USE 04975-0637 PLATE ASSY-SID - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 04975-0637

PLATE ASSY-SIDE-LH - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 04976

R.H.-Side Plate

Note: (Not Shown)

Variations

Cub Cadet 04976-0498

PLATE ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 04976-0637

PLATE ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

93

Cub Cadet 04983

L.H.-Tine Shield

Variations

Cub Cadet 04983-0498

SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

$

$

94

Cub Cadet 04984

R.H.-Tine Shield

Variations

Cub Cadet 04984-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 04984-0637

TINE SHIELD - POWDER BLACK (0637)

$

$

Not available

$

$

95

Cub Cadet 710-0116

Hex Bolt 5/16-18 x 2.00" Lg.*
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

96

8 H.P. Engine

$

$

Not available
