400 (190-400-100) - Cub Cadet 8hp Rear Tiller Attachment att Tines, Rear Wheel & Throttle Parts Diagram

8hp Rear Tiller Attachment

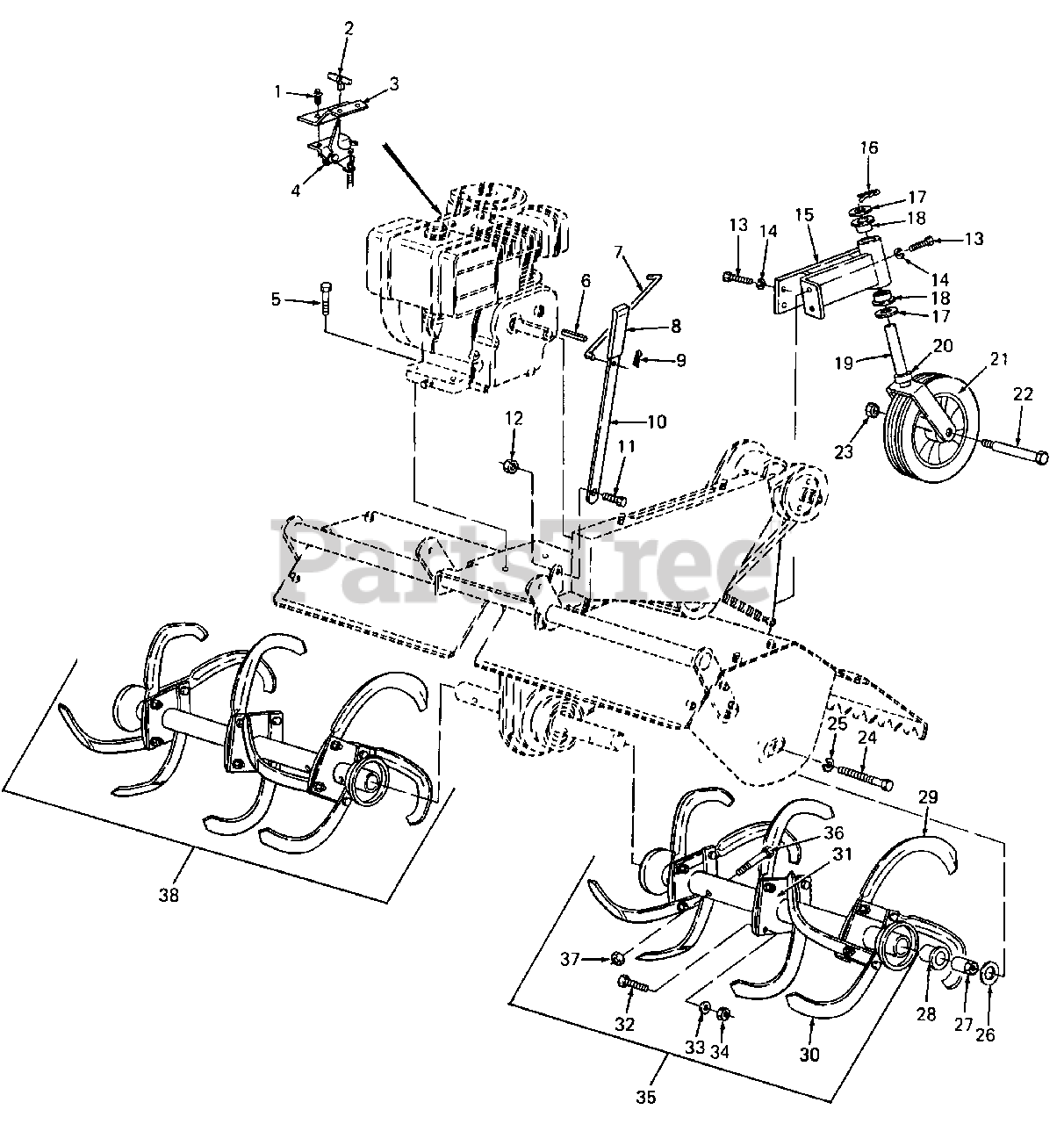

Tines, Rear Wheel & Throttle Parts Diagram

  • Title

1

Cub Cadet 710-0227

Screw, Hex Wash Hd Tapp, #8 X .50 Lg

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 731-0108

Knob, Throttle Control

$9.49

$

In Stock, only 2 left!

0

3

Cub Cadet 04971

Bracket, Throttle Control

$

$

Currently unavailable

4

Cub Cadet 746-0384

Control Assy, Throttle

$

$

Currently unavailable

5

Cub Cadet 710-0116

Screw, Hex Cap, 5/16-18 X 2.0 Lg
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 714-0114

Key, Square, 1/4 X 2.0 Lg
(Superseded to 914-0114)

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 747-0379

Rod, Clutch

$

$

Not available

8

Cub Cadet 720-0142

Grip

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia X 1.0 Lg

$3.99

$

In Stock, only 2 left!

0

10

Cub Cadet 747-0378

Handle, Clutch

Variations

Cub Cadet 747-0378-0637

CLUTCH HANDLE 1.0X(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

11

Cub Cadet 738-0183

Screw, Shoulder, .500 Dia X .215
(Superseded to 938-0183)

$

$

Not available

12

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 6

0

13

Cub Cadet 710-0623

Screw, Hex Wash Hd Tapp, 3/8-16 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 04978

Support, Swivel Wheel
(Superseded to 04978-0637)

Variations

Cub Cadet 04978-0498

USE 04978-0637 SUPPORT-SWIVEL - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 04978-0637

SUPPORT-SWIVEL WHE - POWDER BLACK (0637)

$

$

Not available

$

$

16

Cub Cadet 714-0147

Pin, Hitch Clip

$4.99

$

In Stock, Qty 6

0

17

Cub Cadet 736-0188

Washer, Flat, .760 X 1.49 X .06 Thk HDN

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 741-0382

Bearing, Flange

$

$

Not available

19

Cub Cadet 04981

Caster, Swivel Wheel

$

$

Not available

20

Cub Cadet 711-0469

Spacer

$7.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 734-0979

Wheel

$

$

Not available

22

Cub Cadet 738-0476

Shoulder Bolt

$

$

Not available

23

Cub Cadet 712-0290

Nut, Hex Center Lock, 7/16-14

$4.99

$

In Stock, Qty 11

0

24

Cub Cadet 710-0342

Screw, Hex Cap, 3/8-16 X 1.25 Lg
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0281

Washer, Thrust, 1/2 X 1.55 OD
(Superseded to 936-0163)

$

$

Not available

27

Cub Cadet 748-0276

Spacer

$

$

Not available

28

Cub Cadet 731-0374

Bearing, Flange
(Superseded to 931-0374)

$7.49

$

In Stock, only 3 left!

0

29

Cub Cadet 742-0243

Tine, L.H., 14" X 5/16"

$

$

Not available

30

Cub Cadet 742-0244

Tine, R.H., 14" X 5/16"
(Superseded to 742-0244-0637)

Variations

Cub Cadet 742-0244-0637

TINE-RH BLADE - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 04970

Adapter Assy, Tine

Variations

Cub Cadet 04970-0637

ADAPTER AS - POWDER BLACK (0637)

$

$

Not available

$

$

32

Cub Cadet 710-0459

Screw, Hex Cap, 3/8-24 X 1.5 Lg GR5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

33

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 712-0241

Nut, Hex, 3/8-24

$4.49

$

In Stock, Qty 13

0

35

Cub Cadet 04995

L.H. Tine Assy
(Superseded to 04995-0637)

Note: [Includes Ref No. 29 (Qty 5), 30 (Qty 5), 31 (Qty 1), 32 (Qty 12), 33 (Qty

$

$

Not available

36

Cub Cadet 710-0780

Screw, Hex Cap, 7/16-14 X 2.0 Lg

$

$

Not available

37

Cub Cadet 712-0290

Nut, Hex Center Lock, 7/16-14

$4.99

$

In Stock, Qty 11

0

38

Cub Cadet 04996

R.H. Tine Assy

Note: [Includes Ref No. 29 (Qty 5), 30 (Qty5), 31 (Qty 1), 32 (Qty 12), 33 (Qty 1

Variations

Cub Cadet 04996-0637

TINE ASSEMBLY- - POWDER BLACK (0637)

$

$

Not available

$

$
