400 (190-400-100) - Cub Cadet 8hp Rear Tiller Attachment att Carburetor, Air Cleaner & Muffler Parts Diagram

8hp Rear Tiller Attachment

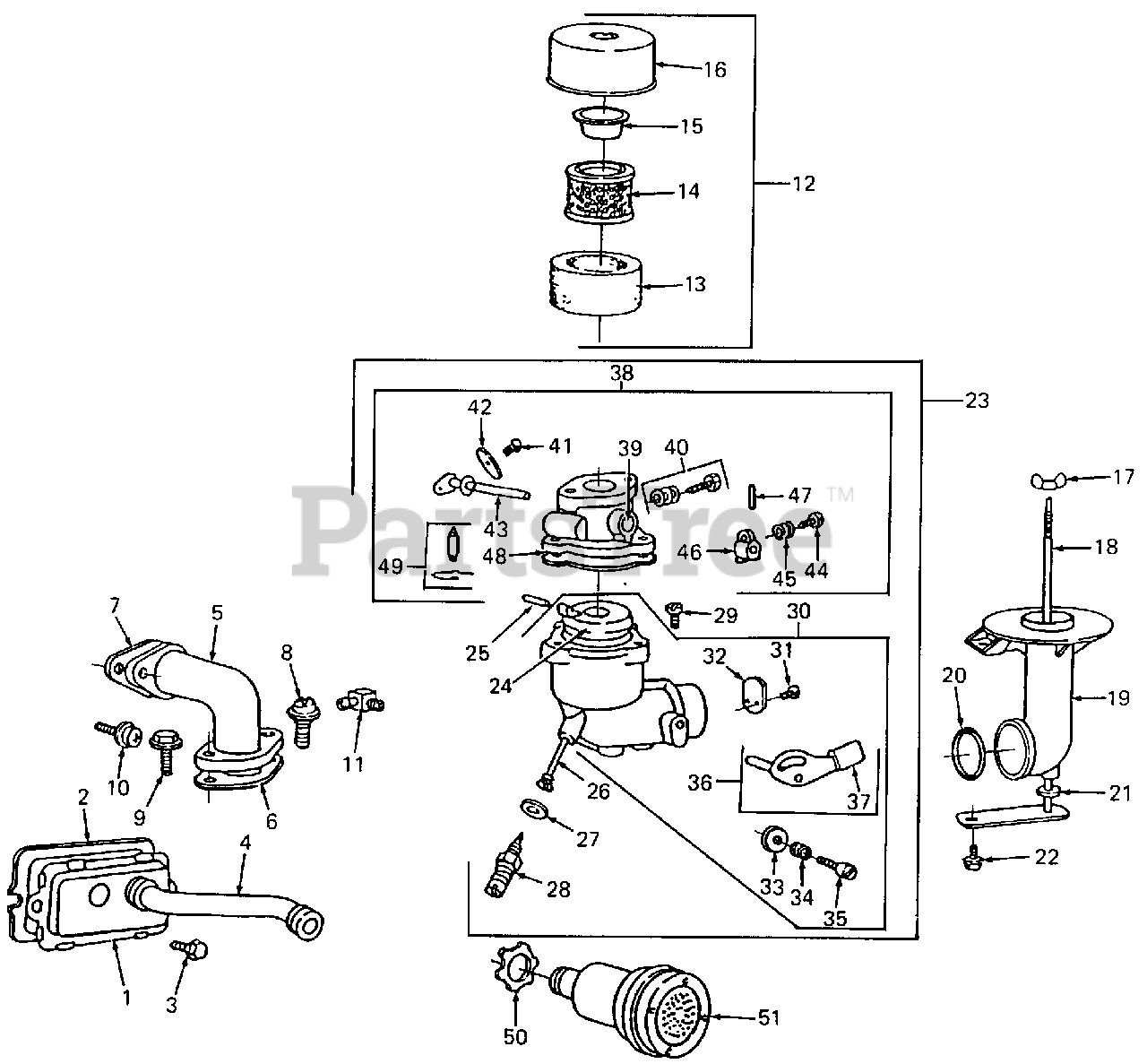

Carburetor, Air Cleaner & Muffler Parts Diagram

  • Title
1

Cub Cadet BS-390321

Breather Valve Assy

$

$

Not available

2

Cub Cadet BS-27803

Gasket, Valve Cover
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet BS-93394

Screw, Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

4

Cub Cadet BS-280267

Tube, Breather

$12.99

$

In Stock, only 1 left!

0

5

Cub Cadet BS-212488

Elbow, Intake

$

$

Not available

6

Cub Cadet BS-270684

Gasket, Carburetor Mtg

$4.99

$

In Stock, Qty 8

0

7

Cub Cadet BS-27828

Gasket, Intake Elbow Mtg
(Superseded to BS-27828S)

$4.99

$

In Stock, Qty 6

0

8

Cub Cadet BS-93956

Screw, Shoulder

$

$

Not available

9

Cub Cadet BS-93357

Screw, Sem - Carburetor Mtg

$

$

Not available

10

Cub Cadet BS-93208

Screw, Sem - Intake Elbow Mtg

$8.49

$

In Stock, only 1 left!

0

11

Cub Cadet BS-67218

Connector, Fuel Pipe

$

$

Not available

12

Cub Cadet BS-391063

Air Cleaner Assy

$94.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-271794

Element, Air Cleaner
(Superseded to BS-271794S)

$4.99

$

In Stock, Qty 11

0

14

Cub Cadet BS-393957

Cartridge, Air Cleaner
(Superseded to BS-393957S)

$19.99

$

In Stock, Qty 5

0

15

Cub Cadet BS-222272

Cup, Air Cleaner
(Superseded to BS-691730)

$10.99

$

In Stock, only 1 left!

0

16

Cub Cadet BS-222271

Cover, Air Cleaner

$

$

Not available

17

Cub Cadet BS-94289

Nut, Wing

$

$

Not available

18

Cub Cadet BS-392105

Stud, Air Cleaner

$25.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-398592

Pipe Assy, Air Cleaner

$45.99

$

In Stock, only 1 left!

0

20

Cub Cadet BS-271265

O-Ring, Air Cleaner

$5.99

$

In Stock, Qty 9

0

21

Cub Cadet BS-65978

Seal, Air Cleaner Stud

$5.99

$

In Stock, only 3 left!

0

22

Cub Cadet 710-3049

Screw, Sem

$

$

Not available

23

Cub Cadet BS-390323

Carburetor Assy

$

$

Not available

24

Cub Cadet BS-99333

Float, Carburetor

$13.99

$

In Stock, only 1 left!

0

25

Cub Cadet BS-230896

Pin, Float Hinge

$

$

Not available

26

Cub Cadet BS-398202

Nozzle, Carburetor

$29.99

$

In Stock, only 2 left!

0

27

Cub Cadet BS-68667

Gasket, Nozzle

$

$

Currently unavailable

28

Cub Cadet BS-99525

Valve, Needle
(Superseded to BS-99525S)

$12.99

$

In Stock, only 1 left!

0

29

Cub Cadet BS-94152

Screw, Sem, Hex Hd

$

$

Not available

30

Cub Cadet BS-399442

Body Assy, Lower Carburetor

$128.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-93499

Screw, Sem, Choke Mtg
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

32

Cub Cadet BS-62872

Valve, Choke

$

$

Currently unavailable

33

Cub Cadet BS-222712

Washer, Choke Lever

$

$

Currently unavailable

34

Cub Cadet BS-26155

Spring, Choke Lever

$

$

Not available

35

Cub Cadet BS-23123

Screw, Choke Lever

$

$

Currently unavailable

36

Cub Cadet BS-391987

Shaft & Lever, Choke

$9.99

$

Usually ships in 2-12 days

0

37

Cub Cadet BS-280149

Sleeve, Choke Lever
(Superseded to BS-691895)

$4.99

$

In Stock, only 1 left!

0

38

Cub Cadet BS-399443

Body Assy, Upper Carburetor

$128.99

$

Usually ships in 2-12 days

0

39

Cub Cadet BS-23108

Bushing, Throttle Shaft

$

$

Not available

40

Cub Cadet BS-292681

Valve Assy, Carburetor Idle

$11.99

$

In Stock, only 1 left!

0

41

Cub Cadet BS-93499

Screw, Sem, Throttle Mtg
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

42

Cub Cadet BS-223370

Valve, Throttle

$

$

Currently unavailable

43

Cub Cadet BS-298826

Shaft & Lever, Throttle

$30.99

$

Usually ships in 2-12 days

0

44

Cub Cadet BS-91920

Screw, Fil Hd, 8-32 X 5/8

$

$

Currently unavailable

45

Cub Cadet BS-26157

Spring, Throttle Adjustment
(Superseded to BS-691591)

$8.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-212904

Stop, Throttle

$

$

Not available

47

Cub Cadet BS-93043

Pin, Throttle, Stop

$

$

Not available

48

Cub Cadet BS-27918

Gasket, Carburetor

$4.49

$

In Stock, Qty 14

0

49

Cub Cadet BS-394681

Valve, Fuel Inlet

$7.99

$

In Stock, only 1 left!

0

50

Cub Cadet BS-261409

Lock Nut, Muffler

$

$

Not available

51

Cub Cadet BS-393010

Muffler
(Superseded to BS-393010S)

$22.99

$

In Stock, Qty 5

0

Cub Cadet BS-398235

Carburetor Overhaul Kit
(Superseded to BS-394693)

$31.99

$

In Stock, Qty 20+

0
