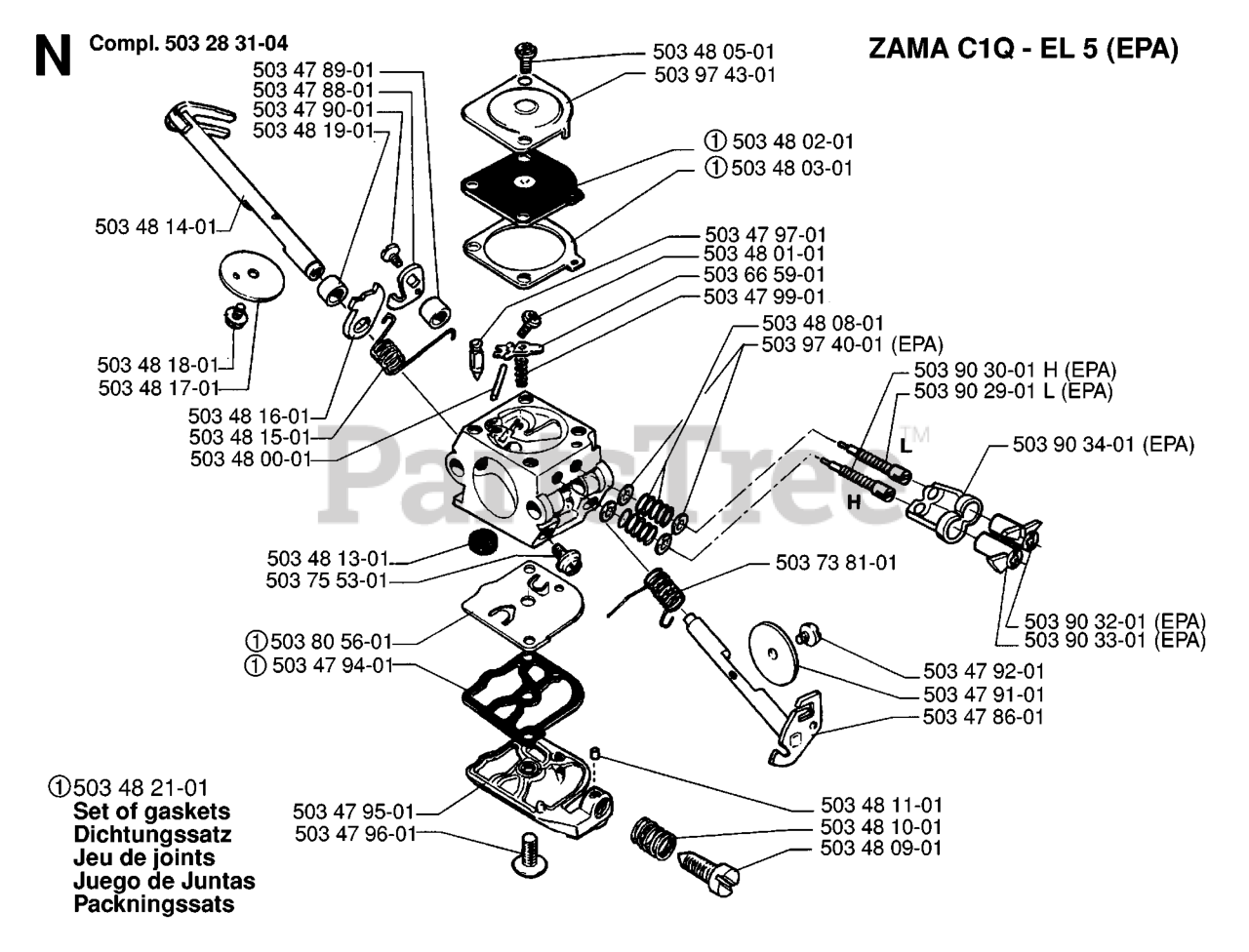

40 - Husqvarna Chainsaw (SN: 19981800001 - 19983499999) CARBURETOR DETAILS 2 Parts Diagram

Chainsaw

CARBURETOR DETAILS 2 Parts Diagram

  • Title

503 48 17-01

Husqvarna 503481701

CHOKE FLAP

$6.99

$

In Stock, only 3 left!

0

503 47 89-01

Husqvarna 503478901

SPACER

$4.99

$

Usually ships in 3-10 days

0

503 80 56-01

Husqvarna 503805601

PUMP DIAPHRAGM

Note: 503 48 21-01 SET OF GASKETS

$6.99

$

In Stock, only 4 left!

0

503 48 03-01

Husqvarna 503480301

GASKET METERING SIDE

Note: 503 48 21-01 SET OF GASKETS

$5.99

$

In Stock, only 2 left!

0

503 90 33-01

Husqvarna 503903301

LIMITER CAP

Note: EPA

$4.99

$

Usually ships in 3-10 days

0

503 48 09-01

Husqvarna 503480901

SCREW

$6.99

$

Usually ships in 3-10 days

0

503 97 40-01

Husqvarna 503974001

WASHER

Note: EPA

$3.49

$

Usually ships in 3-10 days

0

503 48 18-01

Husqvarna 503481801

SCREW

$3.99

$

Usually ships in 3-10 days

0

503 28 31-04

Husqvarna 503283104

CARBURETOR

$

$

Not available

503 48 13-01

Husqvarna 503481301

FUEL INLET SCREEN

$3.99

$

In Stock, only 4 left!

0

503 47 97-01

Husqvarna 503479701

INLET NEEDLE

$10.99

$

Usually ships in 3-10 days

0

503 47 94-01

Husqvarna 503479401

GASKET PUMPSIDE

Note: 503 48 21-01 SET OF GASKETS

$3.49

$

Usually ships in 3-10 days

0

503 48 05-01

Husqvarna 503480501

SCREW

$4.99

$

Usually ships in 3-10 days

0

503 90 32-01

Husqvarna 503903201

LIMITER CAP

Note: EPA

$4.99

$

Usually ships in 3-10 days

0

503 48 16-01

Husqvarna 503481601

STARTER LEVER

$1.49

$

Usually ships in 3-10 days

0

503 47 86-01

Husqvarna 503478601

THROTTLE SHAFT

$10.99

$

Usually ships in 3-10 days

0

503 48 14-01

Husqvarna 503481401

CHOKE SHAFT

$20.99

$

Usually ships in 3-10 days

0

503 75 53-01

Husqvarna 503755301

SCREW *

$3.49

$

In Stock, only 1 left!

0

503 90 29-01

Husqvarna 503902901

LOW SPEED NEEDLE

Note: L (EPA)

$

$

Not available

503 47 91-01

Husqvarna 503479101

THROTTLEFLAP

$5.99

$

Usually ships in 3-10 days

0

503 48 10-01

Husqvarna 503481001

SPRING

$2.49

$

Usually ships in 3-10 days

0

503 47 99-01

Husqvarna 503479901

SPRING

$3.49

$

Usually ships in 3-10 days

0

503 73 81-01

Husqvarna 503738101

SPRING

$3.49

$

Usually ships in 3-10 days

0

503 48 01-01

Husqvarna 503480101

SCREW

$3.99

$

Usually ships in 3-10 days

0

503 48 02-01

Husqvarna 503480201

METERING DIAPHRAGM

Note: 503 48 21-01 SET OF GASKETS

$13.99

$

Usually ships in 3-10 days

0

503 97 43-01

Husqvarna 503974301

COVER

$6.99

$

In Stock, only 1 left!

0

503 66 59-01

Husqvarna 503665901

LEVER

$4.99

$

In Stock, only 2 left!

0

503 47 96-01

Husqvarna 503479601

SCREW

$3.99

$

In Stock, Qty 5

0

503 90 30-01

Husqvarna 503903001

Hi Speed Needle

Note: H (EPA)

$

$

Not available

503 48 15-01

Husqvarna 503481501

SPRING

$3.49

$

Usually ships in 3-10 days

0

503 48 00-01

Husqvarna 503480001

PIN RETAINING SCREW
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

503 47 92-01

Husqvarna 503479201

SCREW

$3.99

$

In Stock, only 2 left!

0

503 47 90-01

Husqvarna 503479001

SCREW

$3.99

$

In Stock, Qty 8

0

503 48 11-01

Husqvarna 503481101

PLUG

$10.99

$

Usually ships in 3-10 days

0

503 90 34-01

Husqvarna 503903401

SLEEVE

Note: EPA

$8.49

$

Usually ships in 3-10 days

0

503 47 95-01

Husqvarna 503479501

PUMPCOVER

$10.37

$

Usually ships in 3-10 days

0

503 48 08-01

Husqvarna 503480801

SPRING
(Superseded to 503994301)

$3.49

$

Usually ships in 3-10 days

0

503 48 19-01

Husqvarna 503481901

BUSHING

$6.99

$

In Stock, only 4 left!

0

503 47 88-01

Husqvarna 503478801

STARTER LEVER

$4.99

$

In Stock, only 1 left!

0
