40 HC (59AE202-195) - MTD Pro Hedge Clipper Engine Assembly Parts Diagram

Pro Hedge Clipper

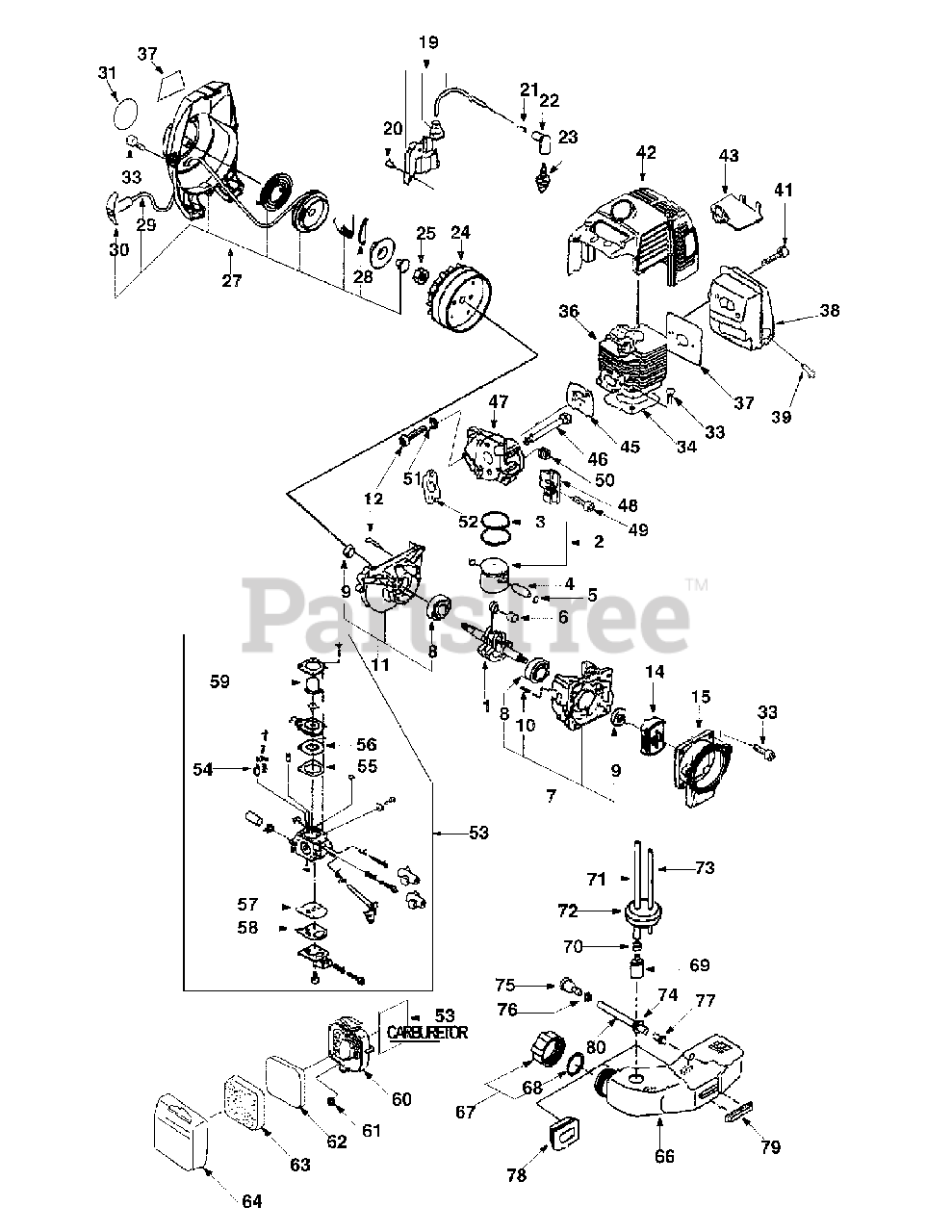

Engine Assembly Parts Diagram

  • Title

1

MTD IM-115253490

Crankshaft

$

$

Not available

2

MTD IM-115013311

Piston Assembly

$

$

Not available

3

MTD IM-115113650

Ring, Piston

$

$

Not available

4

MTD IM-115323041

Pin, Piston

$

$

Not available

5

MTD IM-198343210

Clip, Piston Pin

$

$

Not available

6

MTD IM-042709008

Needle Bearing

$

$

Not available

7

MTD IM-110035190

Crankcase Assembly

$

$

Not available

8

MTD IM-040106201

Ball Bearing

$

$

Not available

9

MTD IM-050209070

Oil Seal

$7.99

$

Usually ships in 3-6 days

0

10

MTD IM-030500512

Dowel Pin

$

$

Not available

11

MTD IM-110035200

Crankcase Assembly

$

$

Not available

12

MTD IM-010709018

Bolt; M5 x 25

$3.49

$

In Stock, Qty 5

0

14

MTD IM-170033380

Clutch Assembly

$

$

Not available

15

MTD IM-110423060

Adapter

$

$

Not available

19

MTD IM-150053330

Coil Assembly, Ignition

$

$

Not available

20

MTD IM-010709018

Bolt; M4 x 20

$3.49

$

In Stock, Qty 5

0

21

MTD IM-198213300

Spring

$2.99

$

In Stock, only 1 left!

0

22

MTD IM-150413033

Cap, Plug

$

$

Not available

23

MTD IM-150265091

Spark, Plug
(Superseded to BPMR7A)

$3.49

$

In Stock, Qty 20+

0

24

MTD IM-150103521

Flywheel, Magneto

$

$

Not available

25

MTD IM-020109107

Nut

$

$

Not available

27

MTD IM-175015050

Housing Assembly, Blower

$102.99

$

Usually ships in 3-6 days

0

28

MTD IM-155163060

Ratchet

$

$

Not available

29

MTD IM-155213150

Rope, Starter

$

$

Not available

30

MTD IM-155223061

Knob, Starter

Note: NLA

$

$

Not available

31

MTD IM-190284910

Name Plate

$

$

Not available

32

MTD IM-190194010

Caution Plate

$

$

Not available

33

MTD IM-010709008

Bolt; M5 x 16

$

$

Not available

34

MTD IM-110993420

Gasket

$

$

Not available

36

MTD IM-110213560

Cylinder

$

$

Not available

37

MTD n/a

Gasket, Muffler

$

$

Currently unavailable

38

MTD IM-135403680

Muffler

$

$

Not available

39

MTD IM-135493090

Arrester

$12.99

$

In Stock, only 1 left!

0

41

MTD IM-010709016

Bolt; M5 x 48

$3.49

$

Usually ships in 3-6 days

0

42

MTD IM-175154000

Cowling, Cylinder

$

$

Not available

43

MTD IM-135433630

Baffle Plate

$

$

Not available

44

MTD IM-110993420

Gasket

$

$

Not available

45

MTD n/a

Gasket, Insulator

$

$

Currently unavailable

46

MTD IM-010109433

Bolt; M5 x 56

$

$

Not available

47

MTD IM-199513510

Insulator

$46.99

$

In Stock, only 1 left!

0

48

MTD IM-125543100

Adjuster

$

$

Not available

49

MTD IM-010709006

Bolt; M5 x 12

$

$

Not available

50

MTD IM-020100005

Nut

$

$

Not available

51

MTD IM-026100005

Washer

Note: NLA

$

$

Not available

52

MTD n/a

Gasket, Carburetor

$

$

Currently unavailable

53

MTD IM-130104240

Carburetor Assembly

$

$

Not available

54

MTD IM-130153240

Valve, Float

$

$

Not available

55

MTD IM-130123350

Gasket

$

$

Not available

56

MTD IM-130283357

Diaphragm, Metering

$

$

Not available

57

MTD IM-130513409

Diaphragm, Pump

$

$

Not available

58

MTD IM-130513413

Gasket

$

$

Not available

59

MTD IM-198113900

Rubber

$24.99

$

Usually ships in 3-6 days

0

60

MTD IM-135713491

Case, Air Silencer

$

$

Not available

61

MTD IM-023100005

Nut

$

$

Not available

62

MTD IM-135263311

Element (B), Air Filter

$8.99

$

In Stock, only 1 left!

0

63

MTD IM-135263300

Element (A), Air Filter

$8.99

$

In Stock, only 1 left!

0

64

MTD IM-135713450

Case, Cap

$8.99

$

Usually ships in 3-6 days

0

65

MTD IM-125504900

Wire Compl, Throttle

$

$

Not available

66

MTD IM-160113290

Tank, Fuel

$

$

Not available

67

MTD IM-160033201

Cap Assembly, Fuel Tank

$10.99

$

In Stock, Qty 6

0

68

MTD IM-160993100

Gasket

$3.99

$

In Stock, Qty 6

0

69

MTD IM-130303290

Filter, Fuel

$15.99

$

Usually ships in 3-6 days

0

70

MTD IM-198343181

Clip

$3.49

$

Usually ships in 3-6 days

0

71

MTD IM-198163080

Hose

Note: NLA

$

$

Not available

72

MTD IM-198113672

Rubber

$

$

Not available

73

MTD IM-068209150

Hose

Note: NLA

$

$

Not available

74

MTD IM-198113560

Rubber

$

$

Not available

75

MTD IM-160043121

Valve Assembly, Reversing

$

$

Not available

76

MTD IM-198343060

Clip

$

$

Not available

77

MTD IM-130443121

Connector

$9.99

$

Usually ships in 3-6 days

0

78

MTD IM-198113620

Rubber

$

$

Not available

79

MTD IM-198113740

Rubber

Note: NLA

$

$

Not available

80

MTD IM-068209183

Hose

$

$

Not available

81

MTD IM-135994160

Gasket Kit

$

$

Not available

82

MTD IM-155183150

Reel

$

$

Not available

83

MTD IM-155263290

Spring, Spiral

$

$

Not available
