4-2652 - Toro Trailblazer 7 Snow Thrower (1973) Parts List 7487 Gear Box-Rotor Drive Parts Diagram

Trailblazer 7 Snow Thrower

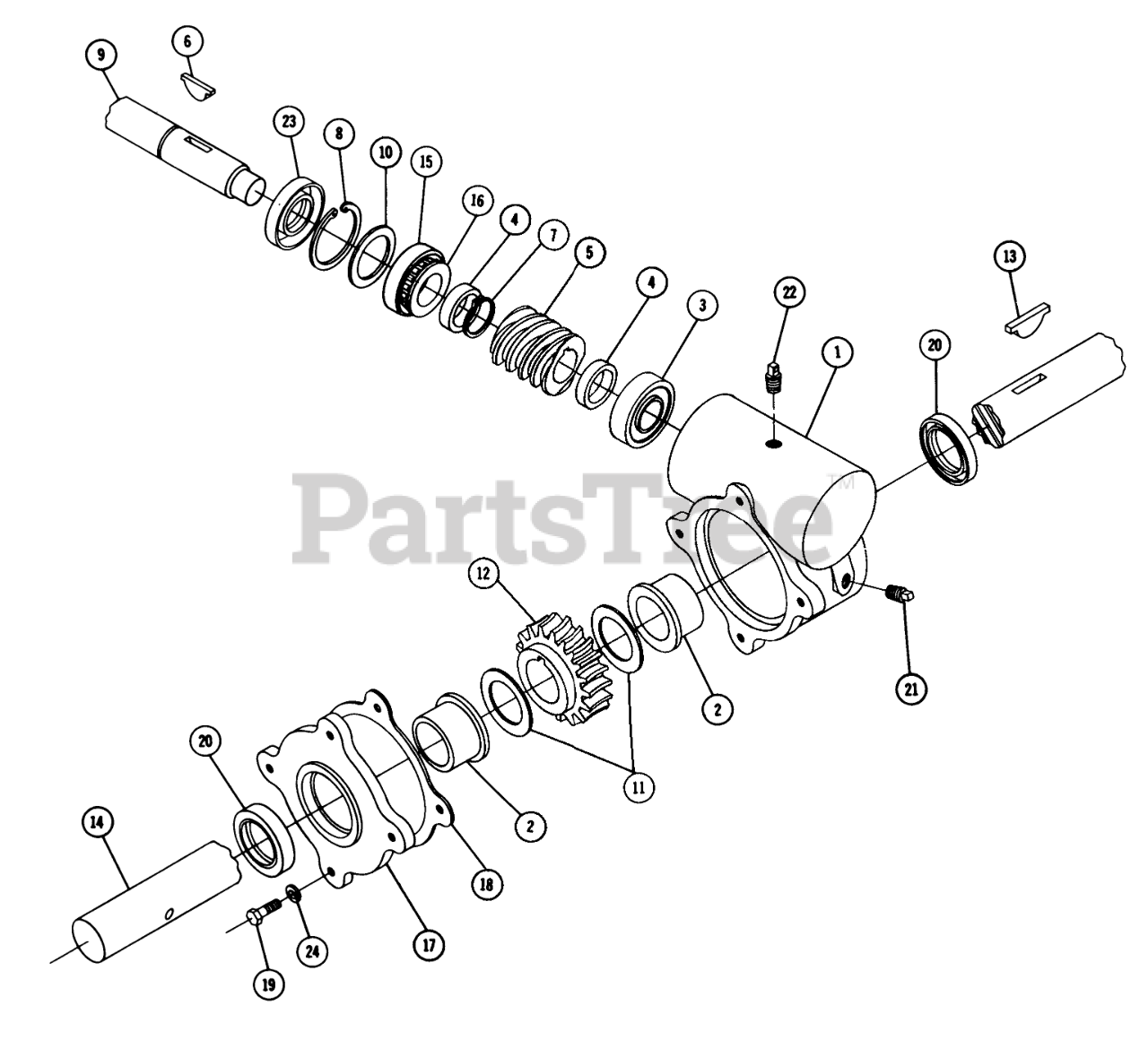

Parts List 7487 Gear Box-Rotor Drive Parts Diagram

  • Title

1

Toro MW-8869

Housing-Rotor Drive

$

$

Currently unavailable

2

Toro MW-5332

Bushing-Sleeve

$

$

Currently unavailable

3

Toro 5596

DISCONTINUED

$

$

Not available

4

Toro 7038

SPACER

$11.99

$

Usually ships in 3-6 days

0

5

Toro MW-8938

Worm

$

$

Currently unavailable

6

Toro 937159

See Supercession: 937225
(Superseded to 937225)

$5.49

$

Usually ships in 3-6 days

0

7

Toro 936125

See Supercession: 32120-72
(Superseded to 32120-72)

$2.49

$

In Stock, Qty 20+

0

8

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 12

0

9

Toro 7034

Shaft-Impeller

$

$

Currently unavailable

10

Toro 7039

DISCONTINUED

$

$

Not available

11

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

12

Toro MW-8941

Gear-Worm

$

$

Currently unavailable

13

Toro 937168

HI PRO KEY

$

$

Not available

14

Toro 7490

DISCONTINUED

$

$

Not available

15

Toro 7037

See Supercession: 321029

$

$

Not available

16

Toro 7036

BEARING CONE

$143.99

$

Usually ships in 3-6 days

0

17

Toro MW-8870

Cover

$

$

Currently unavailable

18

Toro 5326

GASKET

$

$

Not available

19

Toro 908002-4

Bolt-1/4-20 x 5/8

$

$

Currently unavailable

20

Toro MW-10390

Seal-Oil 1.00 Shaft

$

$

Currently unavailable

21

Toro 943418

DISCONTINUED

$

$

Not available

22

Toro MW-10440

Plug-Vent

$

$

Currently unavailable

23

Toro MW-10459

Seal-Oil .75 Shaft

$

$

Currently unavailable

24

Toro 920081-4

Lockwasher

$

$

Currently unavailable
