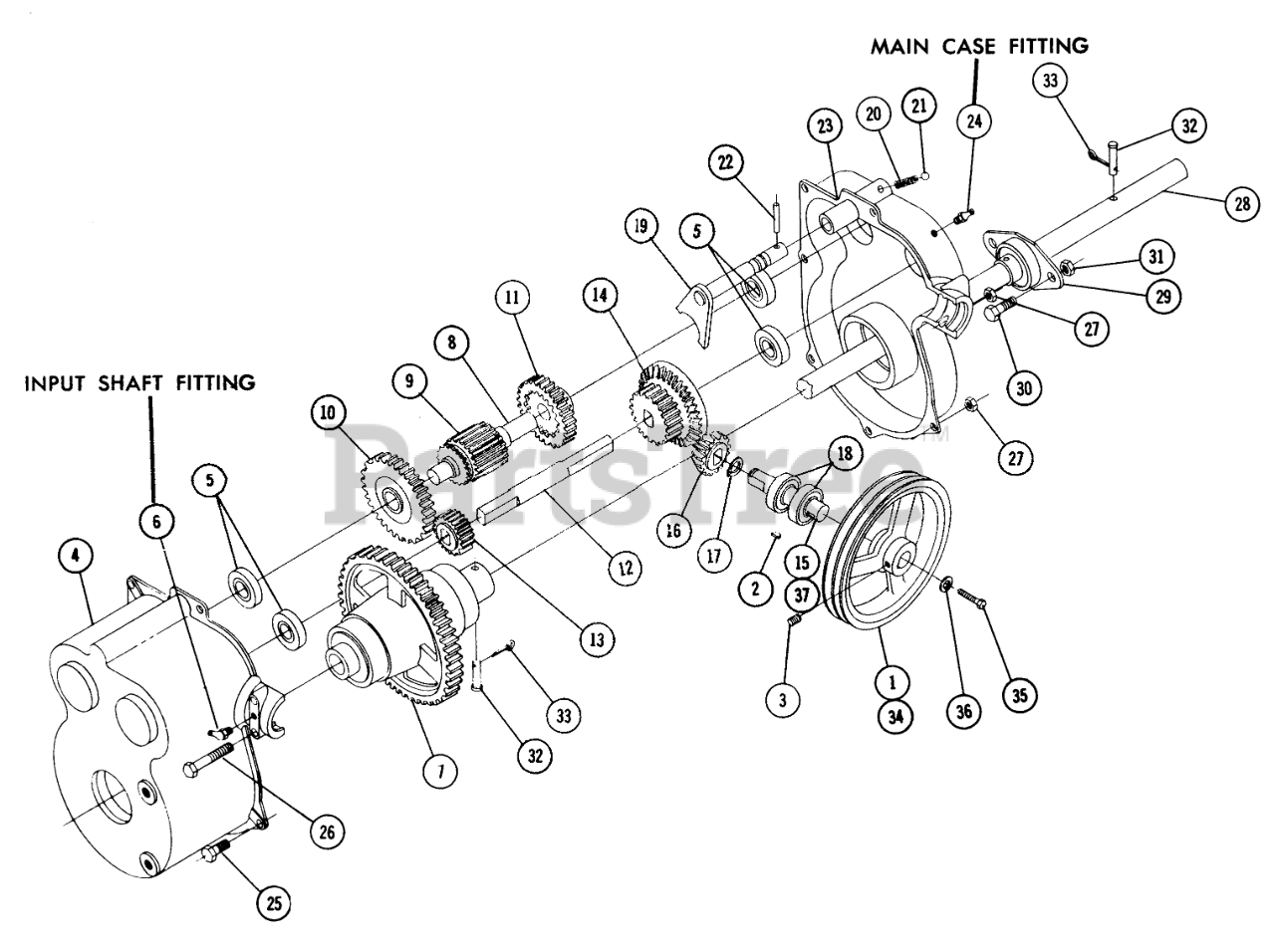

4-2651 - Toro Trailblazer 7 Snow Thrower (1971) TRANSMISSION PARTS LIST 5068 TRANSMISSION FOR MODEL 4-2636 Parts Diagram

Trailblazer 7 Snow Thrower

TRANSMISSION PARTS LIST 5068 TRANSMISSION FOR MODEL 4-2636 Parts Diagram

  • Title
1

Toro 5766

Pulley

$

$

Not available

2

Toro 937159

Key
(Superseded to 937225)

$5.49

$

Usually ships in 3-6 days

0

3

Toro 909850-5

Set Screw-Nylok

$

$

Currently unavailable

4

Toro 5738

GEAR CASE

$

$

Not available

5

Toro 7060

Ball Bearing 5/8 I.D.

$

$

Not available

6

Toro 1291

ZERK 90DEGREE

$

$

Not available

7

Toro 8035

Gear-Final Drive

$

$

Not available

8

Toro 5751

Shaft-Sliding Gear

$

$

Not available

9

Toro 5758

Gear-Sliding

$

$

Not available

10

Toro 5755

Gear-Low

$

$

Not available

11

Toro 5752

Gear-High
(Superseded to 105174)

$351.99

$

Usually ships in 3-6 days

0

12

Toro 6678

Shaft Hi-Low

$

$

Not available

13

Toro 6679

Pinion Low

$

$

Not available

14

Toro 6680

GEAR

$

$

Not available

15

Toro 7726

Shaft-Input

$

$

Not available

16

Toro 6682

PINION GEAR

$

$

Not available

17

Toro 936121

SNAP RING- 5/8 EXT

$0.99

$

Usually ships in 3-6 days

0

18

Toro 6192

Ball Bearing 5/8 I.D.

$

$

Not available

19

Toro 6553

ASSY SHIFT FORK

$

$

Not available

20

Toro 6188

Spring

$

$

Not available

21

Toro 3517

BALL-DETENT

$0.99

$

In Stock, Qty 5

0

22

Toro 933190

PIN-SPIROL

$

$

Not available

23

Toro 5739

GEAR CASE

$

$

Not available

24

Toro 1291

ZERK 90DEGREE

$

$

Not available

25

Toro 908018-4

Bolt, 5/16-18 X 7/8

$

$

Currently unavailable

26

Toro 908025-4

Bolt Hex 5/6-18 X 2-1/2

$

$

Currently unavailable

27

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

28

Toro 8029

AXLE

$

$

Not available

29

Toro 5770

Bearing-Flanged Ball
(Superseded to 110115)

$

$

Not available

30

Toro 908031-4

Bolt Hex 3/8-16 x 5/8

$

$

Currently unavailable

31

$

$

Currently unavailable

32

Toro 932949-4

Clevis Pin 1/4 x 1 1/2

$

$

Currently unavailable

33

Toro 932001-4

Cotter Pin

$

$

Currently unavailable
