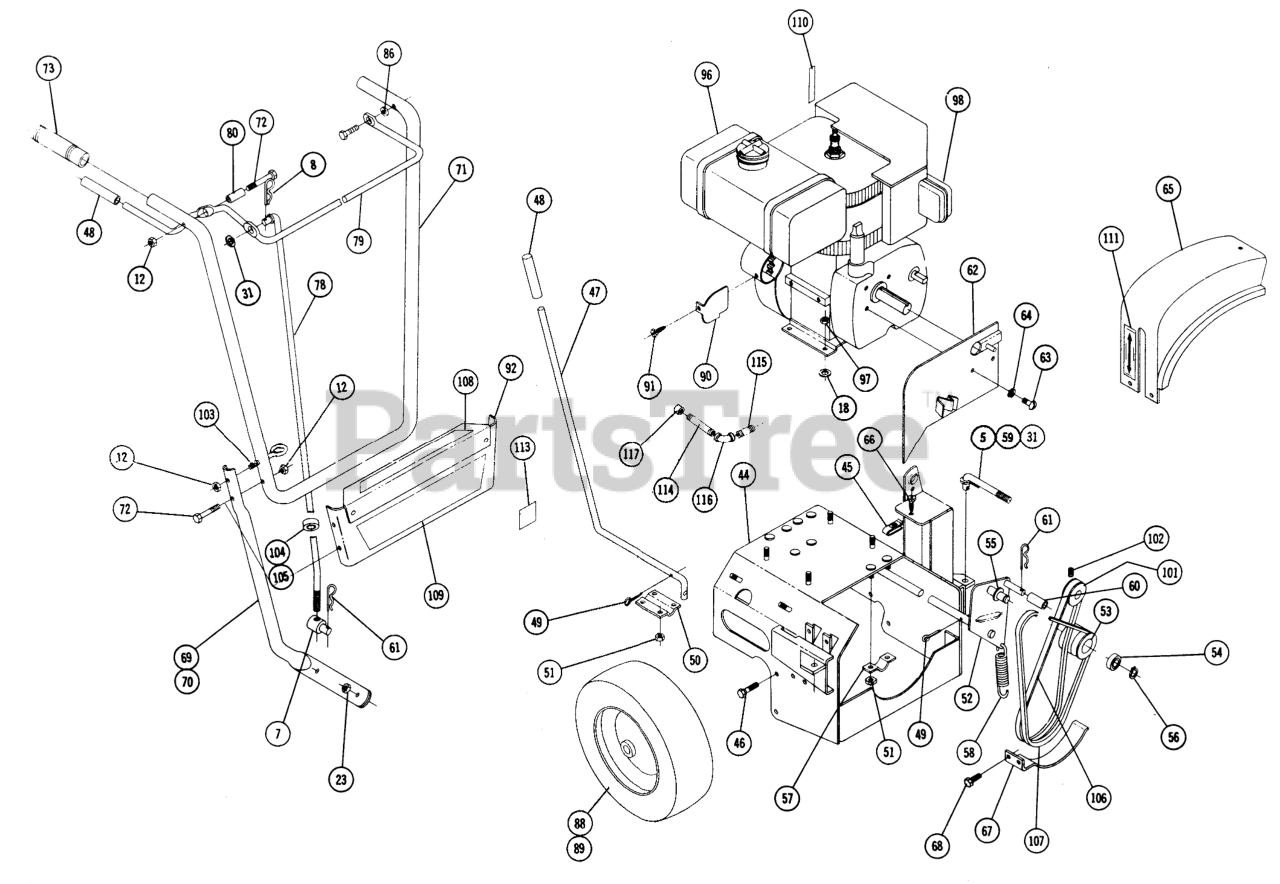

4-2636 - Toro Trailblazer 5 Snow Thrower (1969) SNOW THROW PARTS LIST Parts Diagram

Trailblazer 5 Snow Thrower

SNOW THROW PARTS LIST Parts Diagram

  • Title

1

Toro 6976

Ass-y Rotor Ass-y

$

$

Currently unavailable

2

Toro 6979

Guide-Belt

$

$

Currently unavailable

3

Toro 933505-4

Hairpin

$

$

Currently unavailable

4

Toro 1967

SPACER

$

$

Not available

5

Toro 9005

Rod-Clamp

$

$

Not available

6

Toro 100906

FLANGE

$25.99

$

Usually ships in 3-6 days

0

7

Toro 5791

Trunnion

$

$

Not available

8

Toro 932008-4

Hairpin

$

$

Currently unavailable

10

Toro 7488

Ass-y Rotor R.H.

$

$

Not available

11

Toro 7491

SHEAR BOLT

$

$

Not available

9

Toro 7489

Ass-y Rotor L.H.

$

$

Currently unavailable

12

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

13

Toro MW-10293

Ass-y Impeller

$

$

Currently unavailable

14

Toro 933217

SPIROL ROLL PIN

$

$

Not available

15

Toro 101702

Ball Bearing
(Superseded to 107743)

$178.99

$

Usually ships in 3-6 days

0

16

Toro 909862-5

Set Screw

$

$

Currently unavailable

17

Toro 100760

Bearing
(Superseded to 109100)

$

$

Not available

18

Toro 920009-4

Washer

$

$

Currently unavailable

19

Toro 920124-4

Washer

$

$

Currently unavailable

20

Toro MW-10512

Ass-y Blade-Scraper

$

$

Currently unavailable

21

Toro 960010-4

Nut Whizlock 5/16-18

$

$

Currently unavailable

22

Toro MW-10507

Skid

$

$

Currently unavailable

23

Toro 915113-6

Nut

$

$

Currently unavailable

24

Toro 920009-4

Washer

$

$

Currently unavailable

25

Toro MW-10340

Ass-y Chute

$

$

Currently unavailable

26

Toro MW-10276

Deflector

$

$

Currently unavailable

27

Toro 900062-4

Bolt-3/8-16 x 3/4

$

$

Currently unavailable

28

Toro 920011-4

Washer

$

$

Currently unavailable

29

Toro 6973

Ass-y-Wing Nut

$

$

Not available

30

Toro MW-10283

Ass-y Retainer

$

$

Currently unavailable

31

Toro 920039-4

Washer

$

$

Currently unavailable

32

Toro 908000-4

Bolt, 1/4-20 x 3/8

$

$

Currently unavailable

33

Toro MW-10376

Pulley-8 Dia.

$

$

Currently unavailable

34

Toro 909540-4

Set Scew, Sq. Head

$

$

Currently unavailable

35

Toro 937159

Key
(Superseded to 937225)

$5.49

$

Usually ships in 3-6 days

0

36

Toro 6502

Ass-y Lever
(Superseded to 103550)

$223.99

$

Usually ships in 3-6 days

0

37

Toro MW-8821

Pully-Idler

$

$

Currently unavailable

38

Toro 908036-4

Bolt, 3/8-16 x 1/2

$

$

Currently unavailable

39

Toro 102572

SPRING

$23.99

$

Usually ships in 3-6 days

0

40

Toro 6505

Ring-Truarc

$

$

Not available

41

Toro 6290

Knob

$

$

Not available

42

Toro 6506

V BELT

$

$

Not available

43

Toro 932024-4

Cotter Pin

$

$

Currently unavailable

44

Toro 6999

Ass-y-Housing

$

$

Currently unavailable

45

Toro 6519

Speed Nut

$

$

Not available

46

Toro 6352

Bolt Lug 3/8-16 x 5/8

$

$

Not available

47

Toro 6527

Rod-Shift

$

$

Not available

48

Toro 6528

GRIP

$9.49

$

Usually ships in 3-6 days

0

49

Toro 932016-4

Cotter Pin

$

$

Currently unavailable

50

Toro 5842

Bracket

$

$

Currently unavailable

51

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

52

Toro 6983

Ass-y-Clutch Arm

$

$

Currently unavailable

53

Toro 102224

Pulley-Idler

$

$

Currently unavailable

54

Toro 102227

Bearing-7/16 I.D.

$

$

Not available

55

Toro 920010-4

Washer

$

$

Currently unavailable

56

Toro 936115

EXTERNAL SNAP RING

$

$

Not available

57

Toro 6532

Bracket

$

$

Not available

58

Toro 6533

SPRING

$

$

Not available

59

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

60

Toro 979429-4

Spacer

$

$

Currently unavailable

61

Toro 933504-4

Hairpin

$

$

Currently unavailable

62

Toro 6987

Ass-y-Cover and Guide

$

$

Currently unavailable

63

Toro 1432

Screw Rd. Hd. 5/16-24 x 1/2

$

$

Not available

64

Toro 920082-4

Lockwasher

$

$

Currently unavailable

65

Toro 6539

BELT COVER

$

$

Not available

66

Toro 911685-4

Screw Hex Slotted #14-10 x 7/8

$

$

Currently unavailable

67

Toro 6994

Guide Belt

$

$

Not available

68

Toro 960163-4

Whizlock Screw 1/4-28 x 12

$

$

Currently unavailable

69

Toro MW-10294

Handle-Lower L.H.

$

$

Currently unavailable

70

Toro MW-10295

Handle-Lower R.H.

$

$

Currently unavailable

71

Toro MW-10284

Handle-Upper

$

$

Currently unavailable

72

Toro 908021-4

Bolt 5/16-18 x 1/2

$

$

Currently unavailable

73

Toro 6542

HANDGRIP

$16.99

$

Usually ships in 3-6 days

0

74

Toro 7237

Hanger

$

$

Currently unavailable

75

Toro 5979

BUSHING-NYLINER

$3.49

$

In Stock, Qty 20+

0

76

Toro MW-10751

Bolt Carriage 5/16-18 x 1 3/8

$

$

Currently unavailable

77

Toro 920038-4

Washer

$

$

Currently unavailable

78

Toro 102281

Rod-Clutch

$

$

Currently unavailable

79

Toro 6545

Handle-Control

$

$

Not available

80

Toro 6990

Spacer

$

$

Not available

81

Toro 100761

Collar-Locking

$

$

Not available

82

Toro 6546

Rod-Chute Control

$

$

Not available

83

Toro MW-8935

Sprocket-9 Tooth

$

$

Currently unavailable

84

Toro 933267

PIN-SPIROL

$1.49

$

In Stock, Qty 11

0

85

Toro 6547

SPRING COMPRESSION

$

$

Not available

86

Toro 920008-4

Washer

$

$

Currently unavailable

87

Toro 6991

Collar Hex

$

$

Currently unavailable

88

Toro 8030

Ass-y Wheel R.H.

$

$

Not available

89

Toro 8031

Ass-y Wheel L.H.

$

$

Currently unavailable

90

Toro MW-10739

Cover-Starter Opening

$

$

Currently unavailable

91

Toro 926234-4

Screw #10 x 1/2 Type A

$

$

Currently unavailable

92

Toro 6599

Ass-y-Panel

$

$

Currently unavailable

93

Toro 7413

SPHERICAL BUSHING

$

$

Not available

94

Toro 7414

Socket-Crank Bushing

$

$

Not available

95

Toro 908015-4

Bolt Hex 5/16-18

$

$

Currently unavailable

96

Toro 8003

Ass-y-Engine 5 H.P.

$

$

Currently unavailable

97

Toro 960012-4

Nut, Flange 3/8-16

$

$

Currently unavailable

98

Toro 7628

Muffler

$

$

Currently unavailable

100

Toro MW-10304

Key-Square

$

$

Currently unavailable

99

Toro 6536

Pulley-Crankshaft

$

$

Not available

101

Toro 6535

Pulley-Cam Shaft

$

$

Not available

102

Toro 909850-5

Set Screw-Nylok

$

$

Currently unavailable

103

Toro 102283

Eyebolt

$

$

Currently unavailable

104

Toro 102282

Collar

$

$

Not available

105

Toro 909532-4

Set Screw 1/4-20 x 1/2

$

$

Currently unavailable

106

Toro 6552

V BELT

$29.99

$

Usually ships in 3-6 days

0

107

Toro 6551

V BELT

$

$

Not available

108

Toro 7681

Decal-Safety

$

$

Currently unavailable

109

Toro 8063

Decal-Trailblazer

$

$

Currently unavailable

110

Toro 6819

Decal-Throttle Control

$

$

Currently unavailable

111

Toro MW-10545

Decal-Rotor Clutch

$

$

Currently unavailable

112

Toro MW-8378

Decal-Caution-Snowchute

$

$

Currently unavailable

113

Toro 8033

Decal "5"

$

$

Currently unavailable

114

Toro 943317-4

Nipple 1/4 Pipe x 4

$

$

Currently unavailable

115

Toro 943308-4

Nipple 1/4 Pipe x 1 1/4

$

$

Currently unavailable

116

Toro 943002-4

Elbow 1/4" Pipe x 90deg.

$

$

Currently unavailable

117

Toro 4217

Pipe Cap

$

$

Not available

118

Toro 100759

Flange-Bearing
(Superseded to 108955)

$

$

Not available
