3ZC40A (9404-2) - Generac 8,000 Watt Portable Generator Cradle Parts Diagram

8,000 Watt Portable Generator

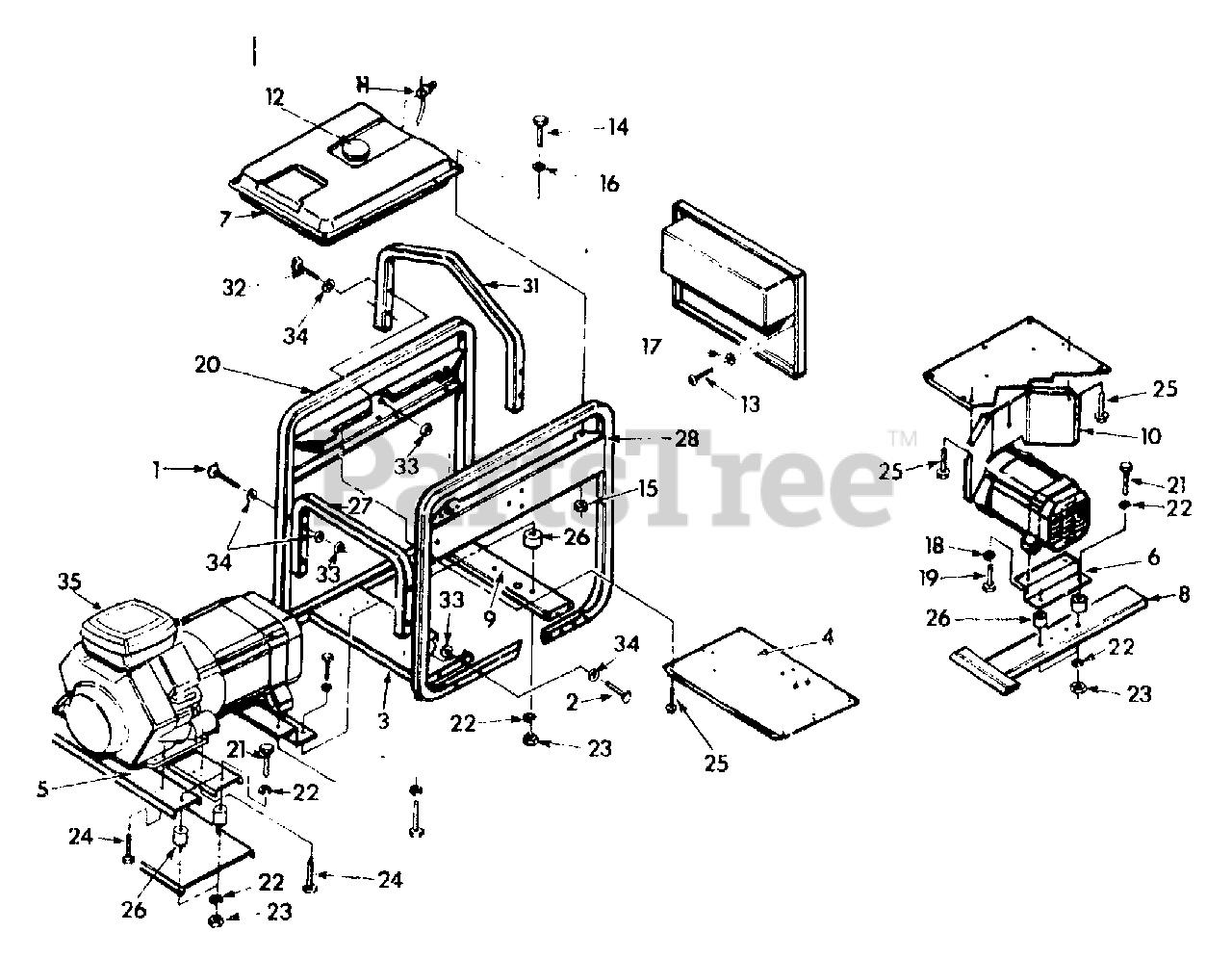

Cradle Parts Diagram

  • Title

1

Briggs & Stratton 52203

M8-1.25 x 70mm Capscrew

$

$

Not available

2

Briggs & Stratton 57821

M8-1.25 x 40mm Capscrew

$

$

Not available

3

Briggs & Stratton 80946

Engine mount

$

$

Currently unavailable

4

Briggs & Stratton 77316

Gas tank heat shield

$

$

Currently unavailable

5

Briggs & Stratton 77304

Engine support

$

$

Not available

6

Briggs & Stratton 78512

Alternator support
(Superseded to 78512GS)

$27.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 73715

Fuel tank
(Superseded to 7073715YP)

$

$

Not available

8

Briggs & Stratton 80943

Manual start cradle

$

$

Currently unavailable

9

Briggs & Stratton 80947

Alternator mount

$

$

Currently unavailable

10

Briggs & Stratton 78513

Heat deflecting shield

$

$

Currently unavailable

11

Briggs & Stratton 86357

Fuel shut-off valve

$

$

Currently unavailable

12

Briggs & Stratton 76272

Fuel cap gauge

$

$

Not available

13

Briggs & Stratton 75494

No. 10-24 x 5/8" Screw

$

$

Not available

14

Briggs & Stratton 42568

M6-1.0 x 20mm Capscrew
(Superseded to 42568GS)

$3.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 52857

M6-1.0 Hex lock nut
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

16

22473

1/4" Flat washer

$

$

Not available

17

Briggs & Stratton 22769

M5 Shakeproof washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22129

M8 Lock washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 39253

M8-1.25 x 16mm Hex screw
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

20

Briggs & Stratton 80944

Right side cradle

$

$

Currently unavailable

21

Briggs & Stratton 23152

3/8"-16 x 3/4" Capscrew
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22237

3/8" Lock washer

$

$

Not available

23

Briggs & Stratton 22241

3/8"-16 Hex nut

$

$

Not available

24

Briggs & Stratton 75246

3/8"-16 x 1-1/4" Screw
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 63036

No. 8-18 x 1/4" Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 35097

Vibration mount
(Superseded to 35097GS)

$16.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 80943

Cradle support

$

$

Currently unavailable

28

Briggs & Stratton 64768

Left side cradle

$

$

Currently unavailable

31

Briggs & Stratton 80949

Lifting bar

$

$

Currently unavailable

32

Briggs & Stratton 39287

M8-1.25 x 45mm Capscrew
(Superseded to 39287GS)

$3.99

$

In Stock, only 2 left!

0

33

Briggs & Stratton 52858

M8-1.25 Hex lock nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 50190

1" Flat washer
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 85109

15 H.P. V-Twin engine

$

$

Currently unavailable
