3ZC40A (9404-2) - Generac 8,000 Watt Portable Generator Control Generator Parts Diagram

8,000 Watt Portable Generator

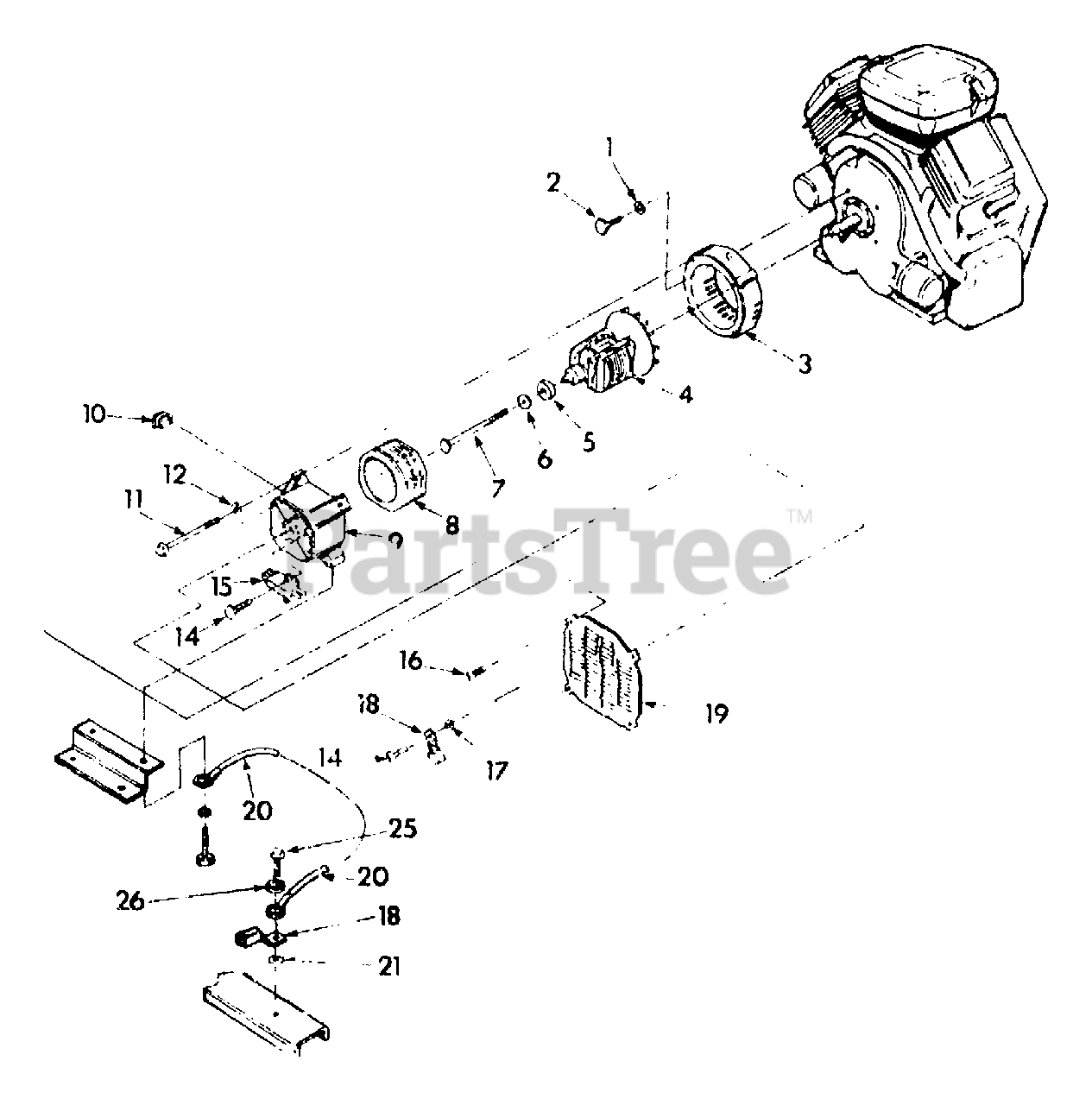

Control Generator Parts Diagram

  • Title

1

Briggs & Stratton 22129

M8 Lock washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton 22336

5/16-24 x 3/4" Capscrew

$

$

Not available

3

Briggs & Stratton 66365G

Engine adaptor housing
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 77308

Rotor assembly

$

$

Currently unavailable

5

Briggs & Stratton 65791

Ball bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 67451

Flat Washer (special)

$

$

Currently unavailable

7

Briggs & Stratton 51810

5/16"-24 x 11" Rotor bolt
(Superseded to 51810GS)

$11.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 77260

Stator Assembly

$

$

Currently unavailable

9

Briggs & Stratton 66825

Rear bearing carrier

$

$

Currently unavailable

10

Briggs & Stratton 67022

Bearing carrier grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 66449K

M6-1.0 x 200mm Stator bolt
(Superseded to 66449LGS)

$30.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22097

M6 Lock washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66849

Taptite screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 80812

Brush holder assembly

$

$

Currently unavailable

16

Briggs & Stratton 74908

M5-0.8 x 10mm Taptite screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

17

UNKNOWN

$

$

Not available

18

Briggs & Stratton 25433

Grounding lug

$

$

Not available

19

Briggs & Stratton 78388

Rear bearing carrier panel
(Superseded to B4871GS)

$

$

Not available

20

Briggs & Stratton 11853621

Grounding wire
(Superseded to 11853621GS)

$13.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 22769

No. 10 Shakeproof washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 81887D

Alternator wrapper

$

$

Not available

23

Briggs & Stratton 52618

M5-0.8 x 12" Hex head screw
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 52856

M5-0.8 Locking Nut
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66849

M5-0.8 x 16mm Taptite screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 23897

M5 Flat washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0
