3ZC40 (9404-1) - Generac 8,000 Watt Portable Generator Idle Control Assembly Parts Diagram

8,000 Watt Portable Generator

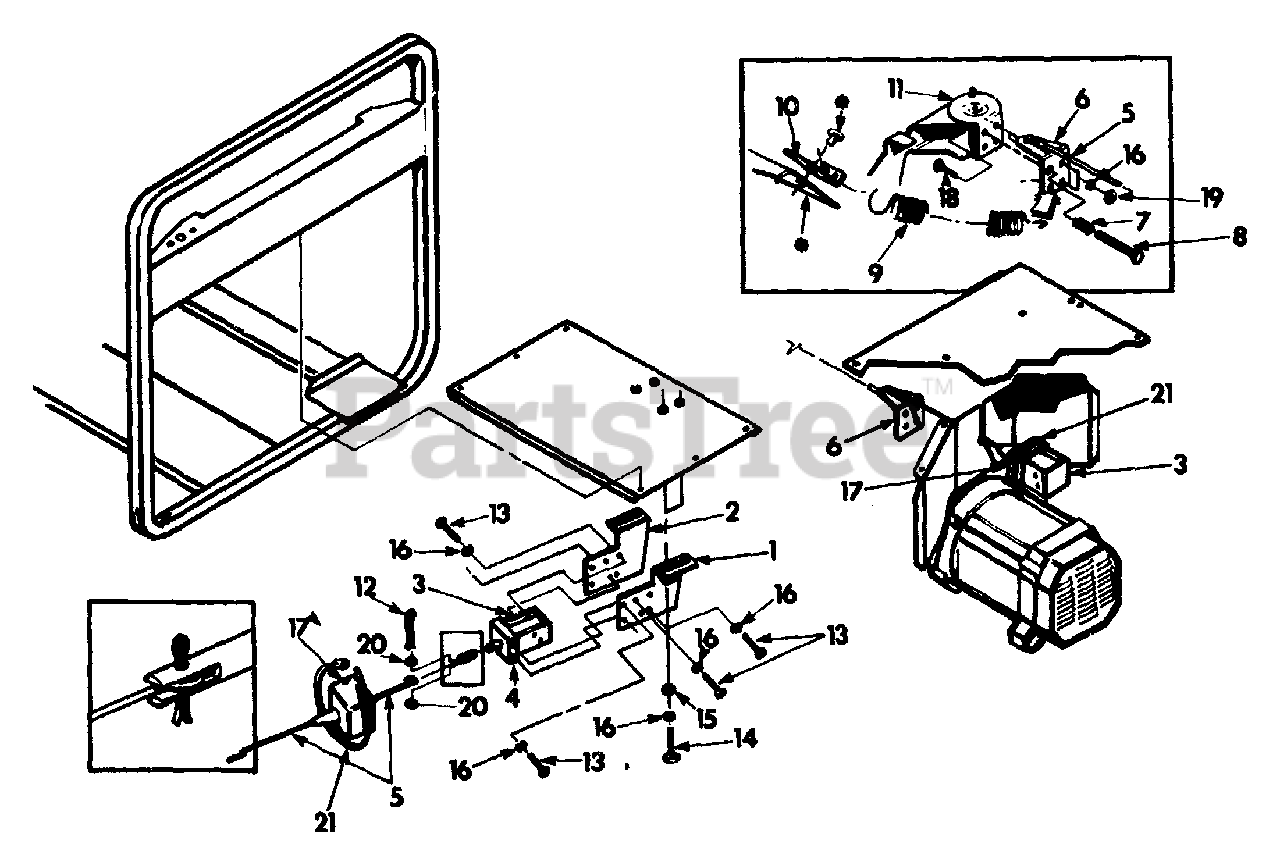

Idle Control Assembly Parts Diagram

  • Title
1

Briggs & Stratton 78504

Solenoid mounting bracket

$

$

Currently unavailable

2

Briggs & Stratton 78504A

Solenoid mounting bracket

$

$

Currently unavailable

3

Briggs & Stratton 78520

D-4HD solenoid

$

$

Not available

4

Briggs & Stratton 78524

Solenoid cover

$

$

Currently unavailable

5

Briggs & Stratton 78507

Solenoid linkage

$

$

Currently unavailable

6

Briggs & Stratton 78516

Linkage mounting bracket

$

$

Currently unavailable

7

Briggs & Stratton 78529

Linkage mtng. bracket spring

$

$

Currently unavailable

8

Briggs & Stratton 78530

M4-0.7 x 50mm Capscrew
(Superseded to 78530GS)

$2.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 78519

Idle control spring

$

$

Currently unavailable

10

Briggs & Stratton 78505

Spring mounting bracket

$

$

Currently unavailable

11

Briggs & Stratton 78527

Gov. control brkt. rework

$

$

Currently unavailable

12

Briggs & Stratton 22268

Cotter pin
(Superseded to 22268GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 36917

No. 8-32 x 3/8" Screw
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 51718

M4-0.7 x 10mm Capscrew

$

$

Not available

15

Briggs & Stratton 38150

No. 8 Flat washer (M4)
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22264

No. 8 Lock washer (M4)

$

$

Not available

17

$

$

Currently unavailable

18

Briggs & Stratton 49819

M4-0.7 x 6mm Capscrew

$

$

Currently unavailable

19

Briggs & Stratton 51715

M4-0.7 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 25909

Nylon washer
(Superseded to 25909GS)

$2.49

$

Usually ships in 2-12 days

0

21

$

$

Currently unavailable
