3ZC12A (9321-1) - Generac 4,000 Watt Portable Generator AC Generator Model 3ZC13 Parts Diagram

4,000 Watt Portable Generator

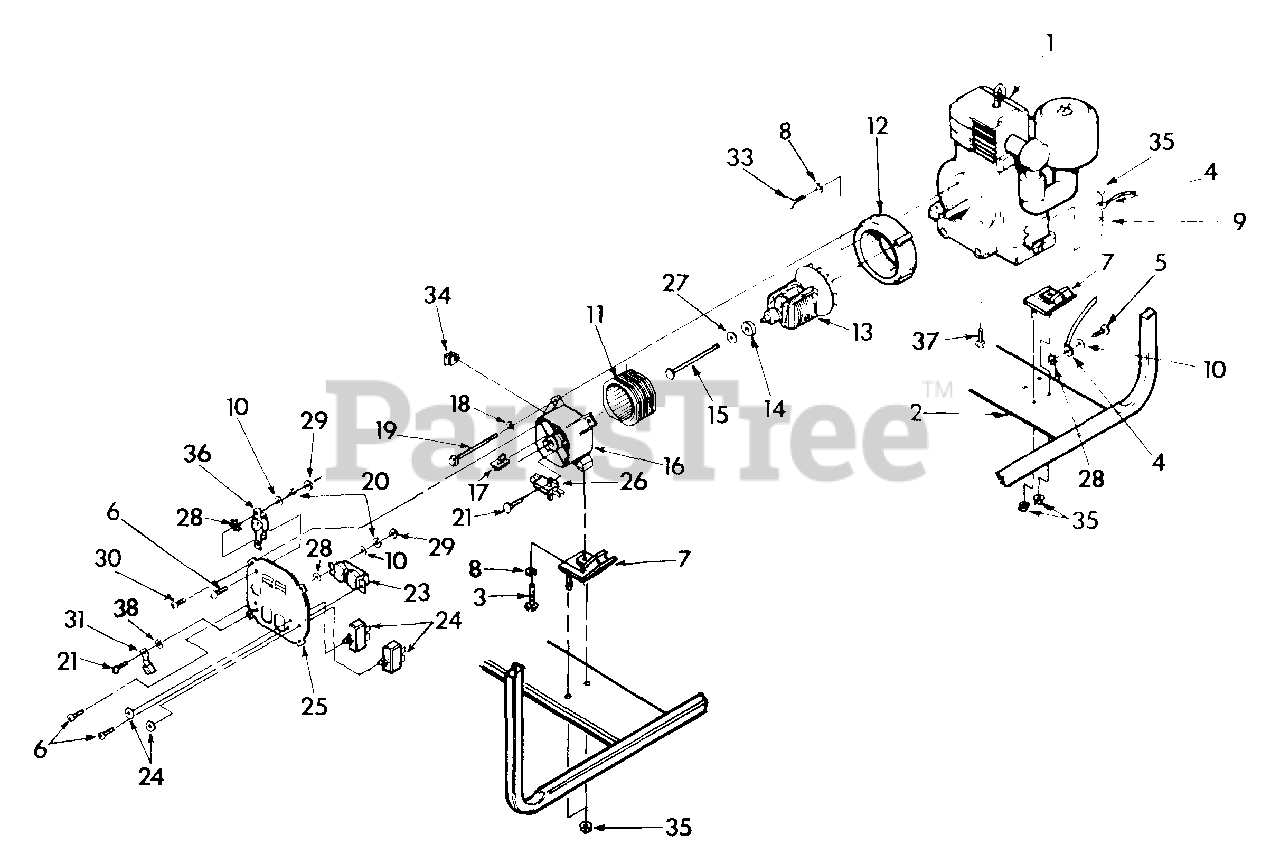

AC Generator Model 3ZC13 Parts Diagram

  • Title

1

Briggs & Stratton 78263

Tecumseh engine - 10 h.p.

$

$

Currently unavailable

2

Briggs & Stratton 75987

Cradle assembly

$

$

Currently unavailable

3

Briggs & Stratton 70644

M8-1.25 x 20mm Screw
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 10953621

Ground wire

$

$

Currently unavailable

5

Briggs & Stratton 24911

No. 8 x 3/8" Taptite screw
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

7

Briggs & Stratton 70642

Vibration mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 22129

M8 Lock washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 27482

5/16" Shake-proof washer
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 38150

No. 8 Flat washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 77257

Stator assembly

$

$

Currently unavailable

12

Briggs & Stratton 66365D

Engine adaptor housing
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 74716

Rotor assembly

$

$

Not available

14

Briggs & Stratton 65791

Ball bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75431

5/16" -24 x 8-1/2" Rotor bolt
(Superseded to 75431GS)

$4.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66825

Rear Bearing Carrier

$

$

Currently unavailable

17

Briggs & Stratton 66850

Bridge rectifier circuit board
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22097

M6 Lock washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 66449D

M6-1.00 x 130mm Stator bolt

$

$

Currently unavailable

20

Briggs & Stratton 22264

No. 8 Lock washer

$

$

Not available

21

Briggs & Stratton 66849

M5-0.8 x 15mm Taptite screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 68759

120 volts, 20 amp Receptacle
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 77247

20 amp Circuit breaker
(Superseded to 77247GS)

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 72098

Control panel

$

$

Not available

26

Briggs & Stratton 66386

Brush holder assembly
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

27

Briggs & Stratton 67451

Flat washer

Note: (special)

$

$

Currently unavailable

28

Briggs & Stratton 23365

No. 8 Lock washer (serrated)
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51715

M4-0.7 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

M5-0.8 x 10mm Taptite screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 25433

Grounding lug

$

$

Not available

33

Briggs & Stratton 22336

5/16"-24 x 3/4" Screw

$

$

Not available

34

Briggs & Stratton 67022

Bearing carrier grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 52858

M8-1.25 Hex nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 68735

240 volts, 20 amp Outlet

$

$

Not available

37

Briggs & Stratton 76222

M8 x 40 Pan head screw
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 22769

No. 10 Shakeproof washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0
