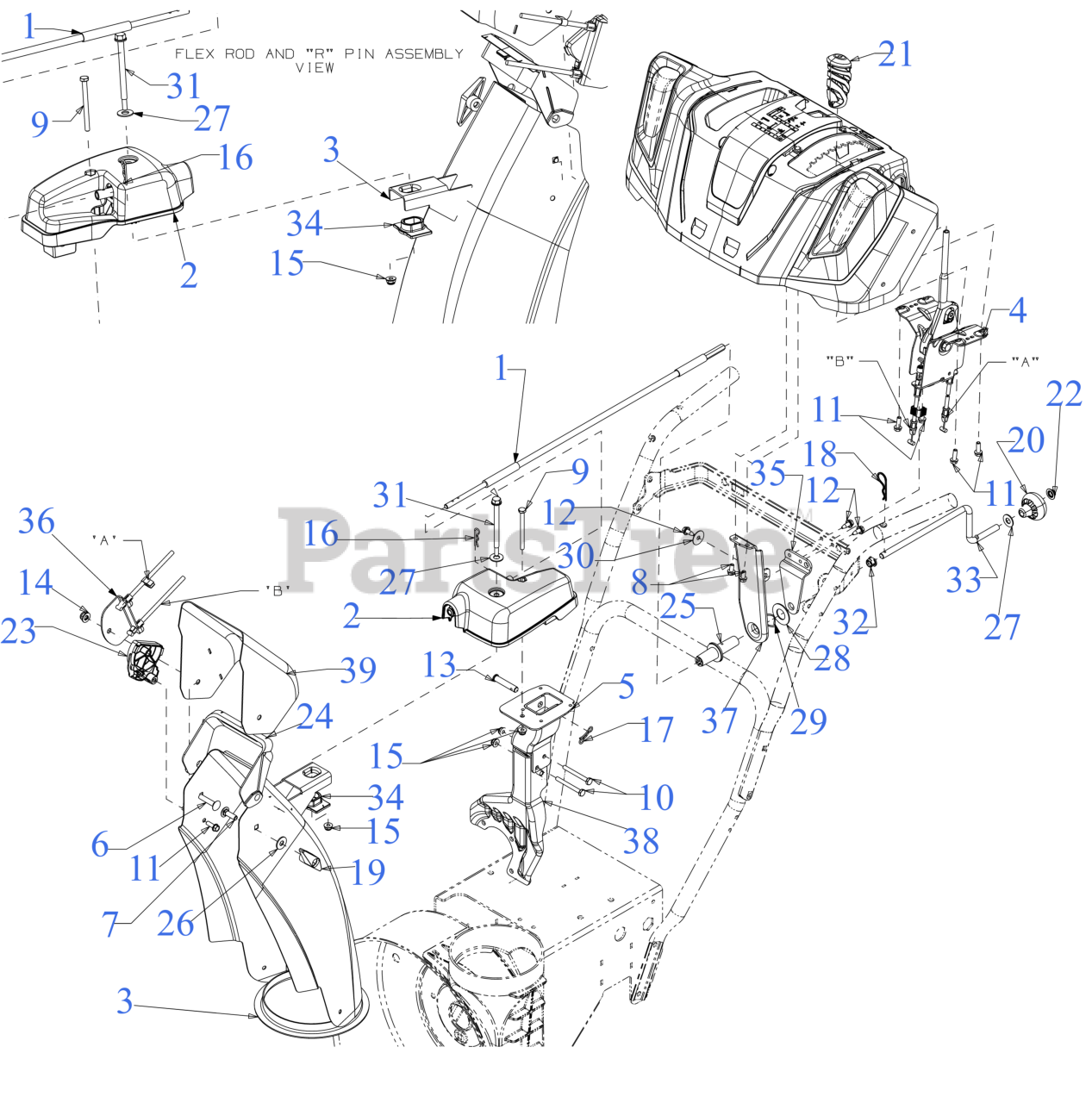

3X 34 MAX H (31AH8M4VB10) - Cub Cadet 3X 34" MAX H Snow Thrower (2023) Chute Controls Parts Diagram

3X 34" MAX H Snow Thrower

Chute Controls Parts Diagram

  • Title
1

Cub Cadet 611-05868

CONTROL ASSEMBLY

$72.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618P09920

2-WAY CHUTE ROTATE GEARBOX

Note: (See Separate Breakdown)

$55.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-05182A

LOWER STEEL CHUTE 6" DIA

Note: *CHOOSE COLOR WHEN ORDERING*

$109.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 984-05241A

2-WAY STEEL CHUTE CONTROL ASSEMBLY

Note: (See Separate Breakdown)

$140.99

$

Usually ships in 0 days

0

5

Cub Cadet 684-06766

EXTENSION CHUTE MAST

Note: *CHOOSE COLOR WHEN ORDERING*

$38.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0262

CARRIAGE BOLT 5/16-18 x 1.50

$3.99

$

In Stock, Qty 11

0

7

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-04187A

HEX SCREW 1/4-15 x .50

$6.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04370

SCREW 1/4-20 x 3.0 GR5

$4.49

$

In Stock, Qty 11

0

10

Cub Cadet 710-0641

SCREW 1/4-20 x 2.25 GR5

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 710-0895

SCREW 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 711-04469A

CLEVIS PIN 3/8 x 1.87

$5.99

$

In Stock, only 3 left!

0

14

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0101

INTERNAL COTTER PIN

$4.99

$

In Stock, only 2 left!

0

17

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

18

Cub Cadet 714-3020

INTERNAL COTTER PIN

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 920-0284

WING KNOB NUT
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 10

0

19

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 720-04102

SHIFT KNOB

$6.99

$

In Stock, Qty 20+

0

21

Cub Cadet 720-05086

PTO HANDLE GRIP .355 ID

$12.99

$

In Stock, only 1 left!

0

22

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 731-09535

CHUTE TILT GUIDE

$8.49

$

In Stock, Qty 16

0

24

Cub Cadet 731-09539A

UPPER CHUTE ADAPTER

$25.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-09643

CHUTE ROD COUPLER

$7.49

$

In Stock, Qty 12

0

26

Cub Cadet 736-0159

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0300

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0445

FLAT WASHER

$4.49

$

In Stock, Qty 13

0

29

Cub Cadet 736-0621

WAVE WASHER .785X1.00X.012

$17.99

$

In Stock, Qty 11

0

30

Cub Cadet 736-3092

FLAT WASHER

$3.99

$

In Stock, Qty 9

0

31

Cub Cadet 738-04367

SHOULDER SCREW

$4.99

$

In Stock, Qty 11

0

32

Cub Cadet 941-0475

BUSHING .380 ID

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 747-06196-0637

CHUTE CRANK (POWDER BLACK)

$21.99

$

In Stock, only 2 left!

0

34

Cub Cadet 748-05057

HELICAL GEAR CHUTE ADAPTER

$11.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 790-00341-0637

ROD SUPPORT BRACKET

$16.99

$

In Stock, only 1 left!

0

36

Cub Cadet 790-00565A

CABLE BRACKET GUIDE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00565A-0637

BLACK CABLE BRACKET G - POWDER BLACK (0637)

$14.99

$

In Stock, only 2 left!

0

$12.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 790-00576

CHUTE CONTROL BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00576-0637

Chute Control Bracket - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 790-00780A

CHUTE SUPPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00780A-0637

BRACKET-CHUTE SUPP - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 790-03893

UPPER STEEL CHUTE (REMOTE TILT)

Note: *CHOOSE COLOR WHEN ORDERING*

$44.99

$

Usually ships in 3-6 days

0
