3X 34 MAX H (31AH8E4V710) - Cub Cadet 3X 34" MAX H Snow Thrower (2020) Panel Parts Diagram

3X 34" MAX H Snow Thrower

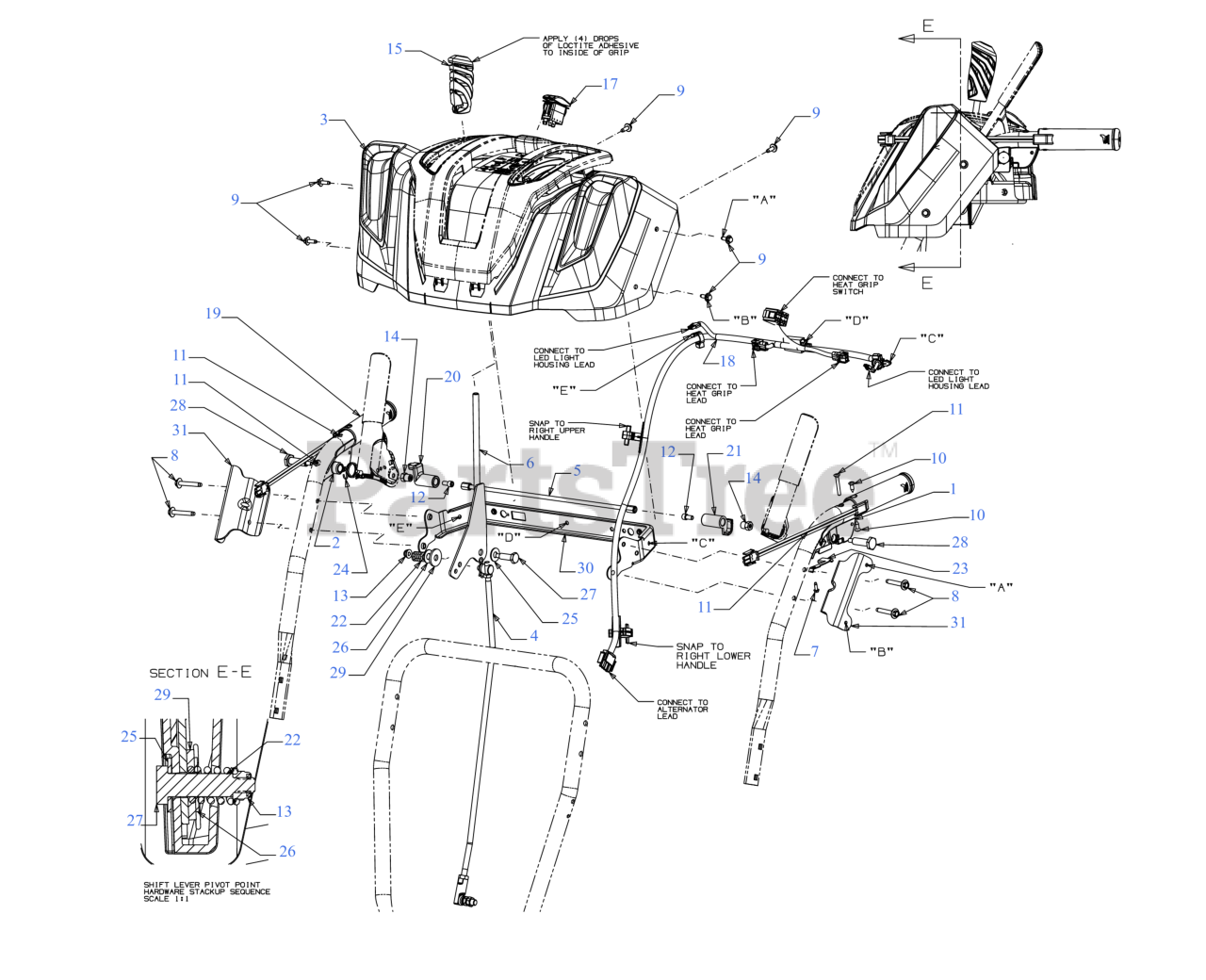

Panel Parts Diagram

  • Title

1

Cub Cadet 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$15.99

$

In Stock, Qty 8

0

2

Cub Cadet 631-04134B

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$15.99

$

In Stock, only 1 left!

0

3

Cub Cadet 731-13053

LENS-LED SNOW

Note: (Not Shown)

$7.99

$

In Stock, only 2 left!

0

3

Cub Cadet 925-05119

LED HEADLIGHT HARNESS ASSEMBLY

Note: (Not Shown)

$60.99

$

In Stock, Qty 5

0

3

Cub Cadet 631-05607A

HANDLE PANEL ASSEMBLY

Note: (Not Shown)

$106.99

$

In Stock, only 4 left!

0

3

Cub Cadet 710-06133

SCREW M6-1 x .625

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 753-06470

SCREW 8/16X.500

Note: (Not Shown)

$2.99

$

In Stock, Qty 12

0

4

SHIFT ROD ASSEMBLY

Note: (See Separate Breakdown)

$

$

Not available

5

Cub Cadet 684-04250

PIVOT ROD

$12.99

$

In Stock, only 4 left!

0

6

Cub Cadet 684-05179-0637

SHIFT LEVER (POWDER BLACK)

$26.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-04586

SCREW 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

9

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-08934

SCREW-AB #12-24 x .625

$2.49

$

In Stock, only 3 left!

0

11

Cub Cadet 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

12

Cub Cadet 710-3069

SCREW 1/4-20 x .50

$4.99

$

In Stock, Qty 10

0

13

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04081A

HEX NUT W/PATCH

$7.49

$

In Stock, Qty 20+

0

15

Cub Cadet 720-05086

PTO HANDLE GRIP .355 ID

$12.99

$

In Stock, only 1 left!

0

17

Cub Cadet 725-07172

HEATED GRIP SWITCH

$45.99

$

In Stock, only 1 left!

0

18

Cub Cadet 925-07176

HARNESS (TWO HEADLIGHT)

$60.99

$

In Stock, only 1 left!

0

19

Cub Cadet 725P12285

HEATED GRIP

$58.99

$

In Stock, only 2 left!

0

20

Cub Cadet 731-04894D

LOCK PLATE

$5.49

$

In Stock, Qty 11

0

21

Cub Cadet 731-04896B

CLUTCH LOCK CAM
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 732-0193

COMPRESSION SPRING

$4.99

$

In Stock, Qty 6

0

23

Cub Cadet 732-04219C

CLUTCH SPRING

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 732-04238B

TORSION SPRING

$5.49

$

In Stock, Qty 11

0

25

Cub Cadet 936-0267

FLAT WASHER .40X.88X.060
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-05080

FLAT WASHER

$3.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 738-04125

SHOULDER SCREW

$4.99

$

In Stock, only 3 left!

0

28

Cub Cadet 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 961-0196

FRICTION WASHER

$9.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 790-00248E-0637

HANDLE SUPPORT BRACKET (POWDER BLACK)

$24.99

$

In Stock, Qty 5

0

31

Cub Cadet 790-00846-0637

HANDLE PANEL BRACKET (POWDER BLACK)

$9.49

$

Usually ships in 3-6 days

0
