3X 30 PRO H (31AH8E2U710) - Cub Cadet 3X 30" PRO H Snow Thrower (2016) Engine Drive Parts Diagram

3X 30" PRO H Snow Thrower

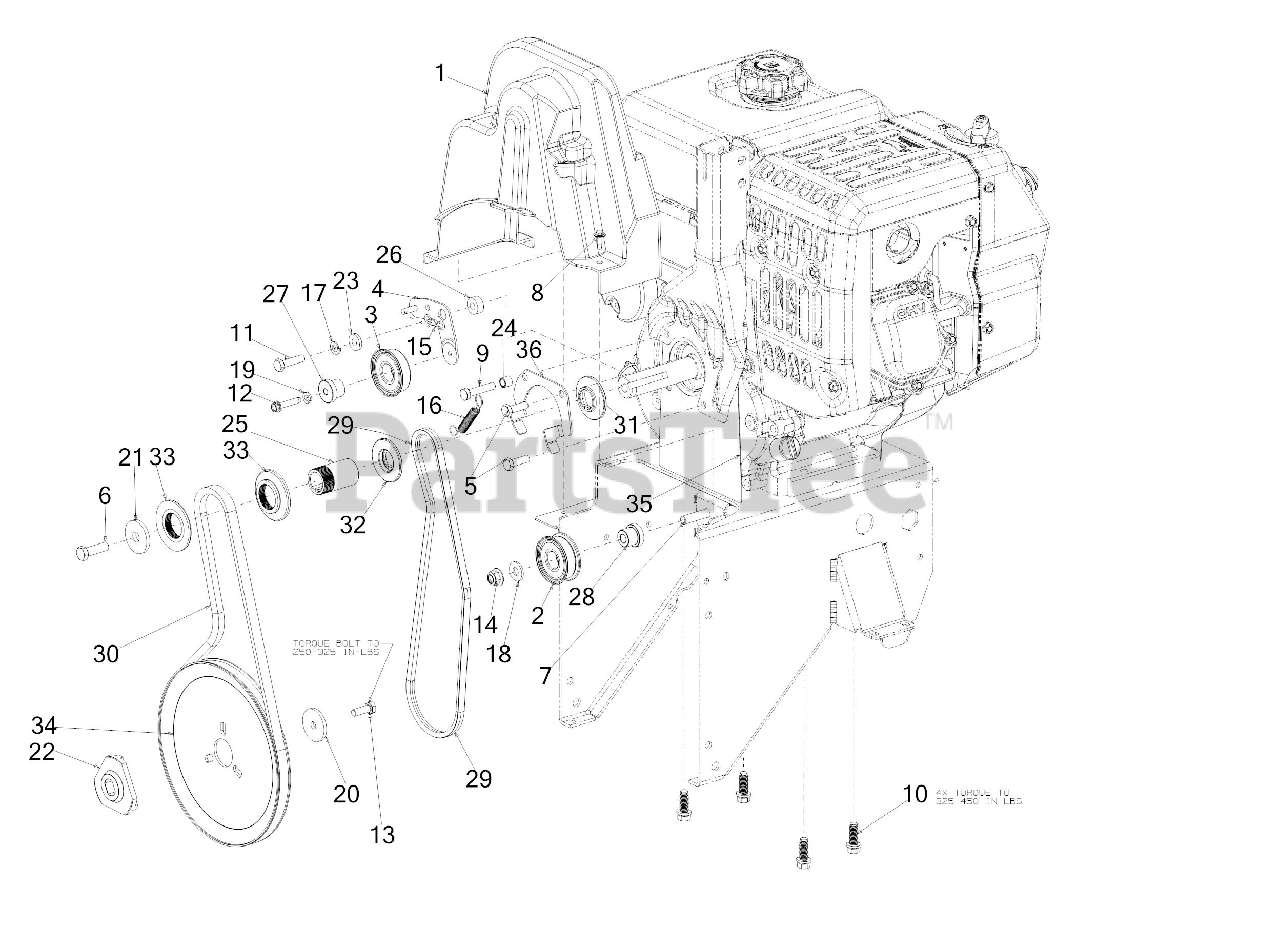

Engine Drive Parts Diagram

  • Title

1

Cub Cadet 631-05401

BELT COVER ASSEMBLY

$51.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-04261

HEX SCREW #12-16 x .50

Note: (Not Shown)

$6.49

$

In Stock, only 3 left!

0

2

Cub Cadet 684-04168

IDLER PULLEY ASSEMBLY

$38.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 941-0919B

BALL BEARING

Note: (Not Shown)

$21.99

$

In Stock, Qty 20+

0

2

Cub Cadet 790-00230

BEARING SLEEVE

Note: (Not Shown)

$7.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-04169

IDLER PULLEY ASSEMBLY

$34.99

$

In Stock, only 2 left!

0

3

Cub Cadet 790-00230

BEARING SLEEVE

Note: (Not Shown)

$7.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 941-0919B

BALL BEARING

Note: (Not Shown)

$21.99

$

In Stock, Qty 20+

0

4

Cub Cadet 684-05185

HYDRO DRIVE IDLER ASSEMBLY

$27.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0117A

HEX HEAD CAP SCREW 5/16-24 x 1.00 GR5

$5.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0191

SCREW 3/8-24X1.25

$4.99

$

In Stock, Qty 8

0

7

Cub Cadet 710-0520

SCREW 3/8-16 x 1.50

$4.49

$

In Stock, Qty 6

0

8

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 11

0

9

Cub Cadet 710-0624

SCREW 5/16-24 x 1.5 GR5

$5.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0654A

SCREW 3/8-16 x 1

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet 710-0672

SCREW 5/16-24 x 1.25 GR5

$4.49

$

In Stock, Qty 18

0

12

Cub Cadet 710-0809

SCREW 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

13

Cub Cadet 710-1245B

SCREW 5/16-24 x .875 GR5

$8.49

$

In Stock, only 2 left!

0

14

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

16

Cub Cadet 732-05521

EXTENSION SPRING 2.675

$5.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 936-0119

LOCK WASHER 5/16

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 936-0329

LOCK WASHER

$4.49

$

In Stock, Qty 11

0

20

Cub Cadet 736-0505

FLAT WASHER

$6.49

$

In Stock, only 2 left!

0

21

Cub Cadet 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$9.99

$

In Stock, Qty 16

0

22

Cub Cadet 748-04053A

ADAPTER PULLEY .75 DIA W/DD

$22.99

$

In Stock, only 1 left!

0

23

Cub Cadet 748-04112B

SHOULDER SPACER

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet GW-55088

BUSHING

$

$

Not available

25

Cub Cadet 750-04303

PULLEY SPACER

$17.99

$

In Stock, only 1 left!

0

26

Cub Cadet 750-04477A

IDLER BRACKET SPACER .340X.750X.330

$5.49

$

In Stock, only 4 left!

0

27

Cub Cadet 750-04571

SHOULDER SPACER

$6.99

$

In Stock, only 3 left!

0

28

Cub Cadet 750-04852

SHOULDER SPACER .385 x .785 x .538

$6.99

$

In Stock, only 1 left!

0

29

Cub Cadet 954-05137

HYDRO DRIVE BELT

$21.99

$

In Stock, only 1 left!

0

30

Cub Cadet 954-05144

AUGER BELT .500 X 41.40

$51.99

$

In Stock, only 2 left!

0

31

Cub Cadet 756-04114

HALF PULLEY 3/8-V x 2.2

$13.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 756-04252

HALF PULLEY-3/8 V x 1.7160

$6.49

$

In Stock, only 1 left!

0

33

Cub Cadet 756-04353

HALF PULLEY 4L-V x 2.40 OD

$7.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 756-05219

AUGER PULLEY 8.5 OD

$55.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 790-00332A

ENGINE PLATE (FRONT COVER)

$6.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 790-00775

BELT KEEPER BRACKET

$21.99

$

Usually ships in 3-6 days

0
