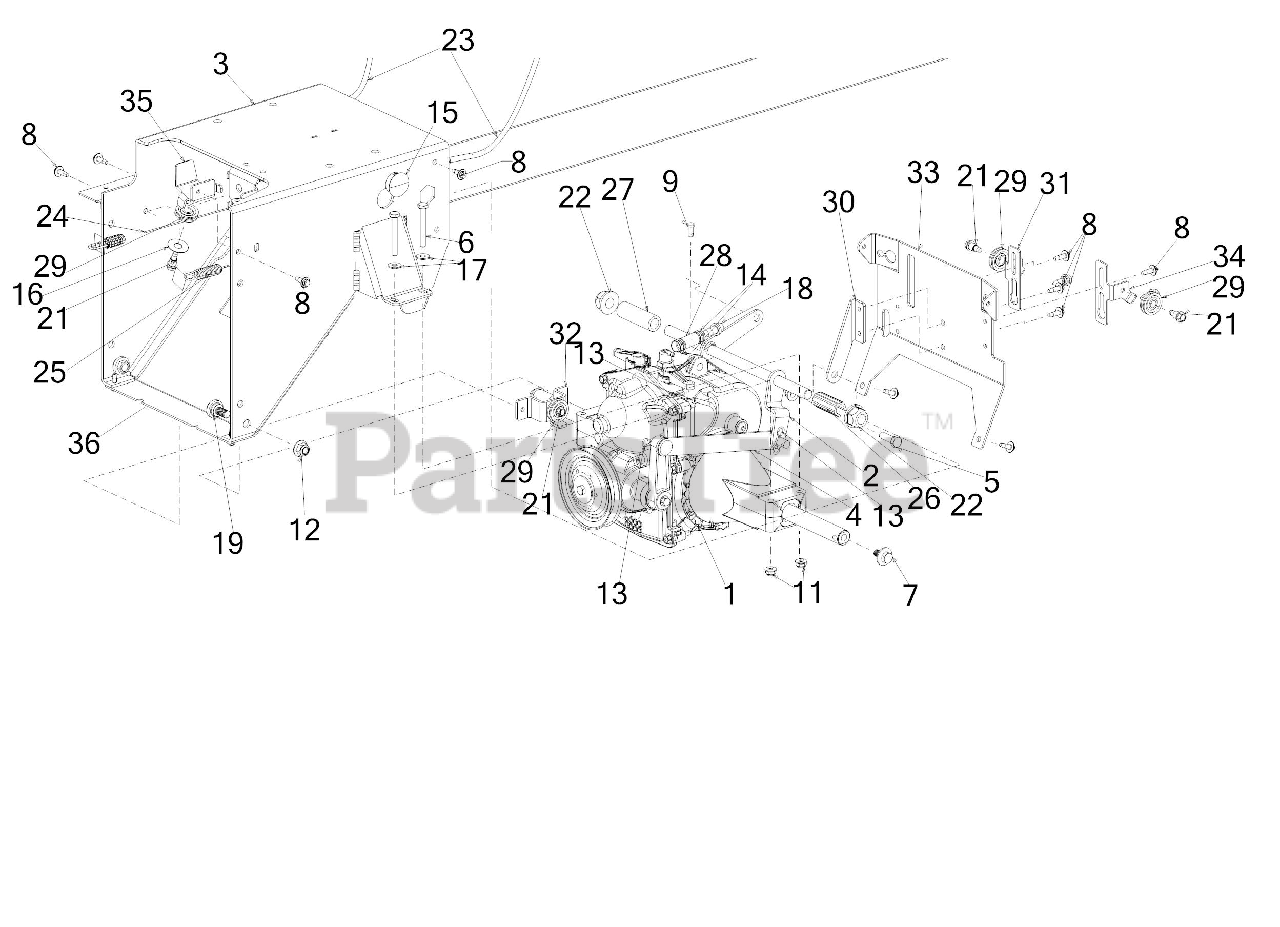

3X 30 PRO H (31AH8E2U710) - Cub Cadet 3X 30" PRO H Snow Thrower (2016) Drive Parts Diagram

3X 30" PRO H Snow Thrower

Drive Parts Diagram

  • Title

1

Cub Cadet 618-07236

HYDRO TRANSMISSION ASSEMBLY
(Superseded to 918-07236A)

$969.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-05150

CONTROL SHAFT ASSEMBLY

$42.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-05151-0637

DRIVE FRAME
(Superseded to 684-05151A-0637)

$301.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-05177

SHIFT LINKAGE

$27.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0501

SCREW 1/4-20 x 2 GR5

$7.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-05339A

SCREW 5/16-24 x .750 GR5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 10

0

9

Cub Cadet 911-0701

CLEVIS PIN .25 x .50

$6.99

$

In Stock, only 1 left!

0

11

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

14

Cub Cadet 726-05003

HOSE CLAMP

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 731-09477

PLASTIC PLUG

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 936-0344

FLAT WASHER
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 936-3020

FLAT WASHER .271:.630:.065
(Superseded to 736-3020)

$

$

Not available

18

Cub Cadet 737-0296

VENT

$12.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 738-04130A

SHOULDER SCREW .625X.165X3/8-16

$9.49

$

In Stock, Qty 10

0

21

Cub Cadet 738-04425

SHOULDER SCREW

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 741-04453A

FLANGE BEARING

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 946-05275

STEERING CABLE

$44.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 946-05294

WHEEL DRIVE CABLE 48.31"

$35.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 946-05352

AUGER DRIVE CABLE 48.23"

$45.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 750-05021

SPACER-.491 ID x 1.67 LG

$3.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 750-06558

SLEEVE SPACER .525 X .78 X 2.36

$8.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 751-10350-2

FUEL HOSE LOW PERMEATION

$2.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 756-0625

CABLE GUIDE ROLLER

$9.49

$

In Stock, Qty 14

0

30

Cub Cadet 790-00739-0637

TRANSMISSION MOUNTING BRACKET

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 790-00749

CABLE IDLER BRACKET (RH)

$15.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 790-00750-0637

DRIVE CABLE GUIDE BRACKET

$24.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 790-00757-0637

FRAME PLATE (REAR)

$41.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 790-00762

CABLE IDLER BRACKET (LH)

$15.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 790-00779-0637

AUGER CABLE GUIDE BRACKET

$39.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 790-00789-0637

LOWER DRIVE FRAME COVER
(Superseded to 790-00789A-0637)

$24.99

$

Usually ships in 3-6 days

0

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 738-04184A

SHOULDER SCREW

Note: (Not Shown)

$6.99

$

In Stock, Qty 5

0
