3X 30 PRO (31AH8ESU710) - Cub Cadet 3X 30" PRO Snow Thrower (2017) Impeller Parts Diagram

3X 30" PRO Snow Thrower

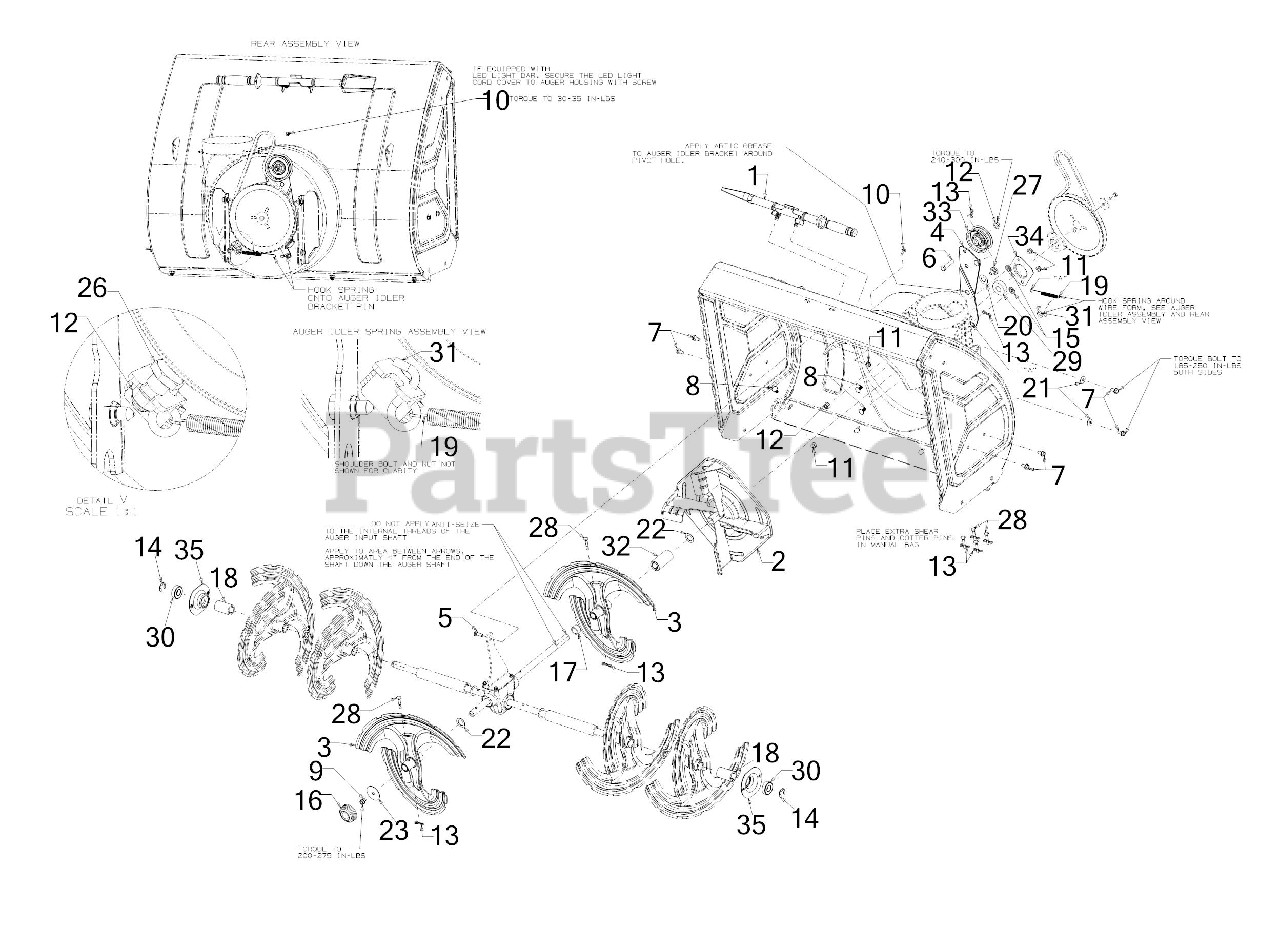

Impeller Parts Diagram

  • Title

1

Cub Cadet 931-2643

CLEANOUT TOOL

$19.99

$

In Stock, Qty 16

0

1

Cub Cadet 731-11421

CLEANOUT TOOL MOUNTING CLIP

$11.99

$

In Stock, Qty 20+

0

2

Cub Cadet 684-05130-0637

4 BLADE IMPELLER 14.5 DIA

$93.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-05147

AUGER ACCELERATOR (LH)

Variations

Cub Cadet 684-05147-4021

AUGER-ACCELERATOR - CUB YELLOW 2 (4021)

$87.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-05186

AUGER IDLER BRACKET

$36.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

10

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

14

Cub Cadet 916-0231

E-RING
(Superseded to 716-0231)

$

$

Not available

15

Cub Cadet 926-04012

PUSH ON NUT
(Superseded to 726-04012)

$

$

Not available

16

Cub Cadet 731-08637A

CASTER AXLE CAP

$5.49

$

In Stock, Qty 18

0

17

Cub Cadet 731-10404

SPACER

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-11747

SPACER 1.25 x .75 x 2.085

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-04460

EXTENSION SPRING .38 OD x 4.59

$5.49

$

In Stock, Qty 20+

0

20

Cub Cadet 936-0167

FLAT WASHER

$6.99

$

In Stock, Qty 6

0

21

Cub Cadet 736-0242

BELL WASHER .337 X.867 x .057

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 936-0287

FLAT WASHER .793ID x 1.24OD x .060
(Superseded to 736-0287)

$

$

Not available

23

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

26

Cub Cadet 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 938-0281

SHOULDER SCREW .625
(Superseded to 738-0281)

$

$

Not available

28

Cub Cadet 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

29

Cub Cadet 941-0309

FLANGE BEARING

$74.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 741-05194

BALL BEARING

$8.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 747-06779

ROD SPRING HOOK

$4.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 750-06274A

SPACER

$18.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 756-04224

FLAT IDLER PULLEY 2.75 OD

$26.99

$

In Stock, Qty 20+

0

34

Cub Cadet 790-00075A

BEARING HOUSING 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, Qty 12

0

35

Cub Cadet 790-00734-4021

BEARING HOUSING 1.59 ID

$8.49

$

Usually ships in 3-6 days

0
