3X 30 MAX (31AH8MVUB10) - Cub Cadet 3X 30" MAX Snow Thrower (2023) Impeller Parts Diagram

3X 30" MAX Snow Thrower

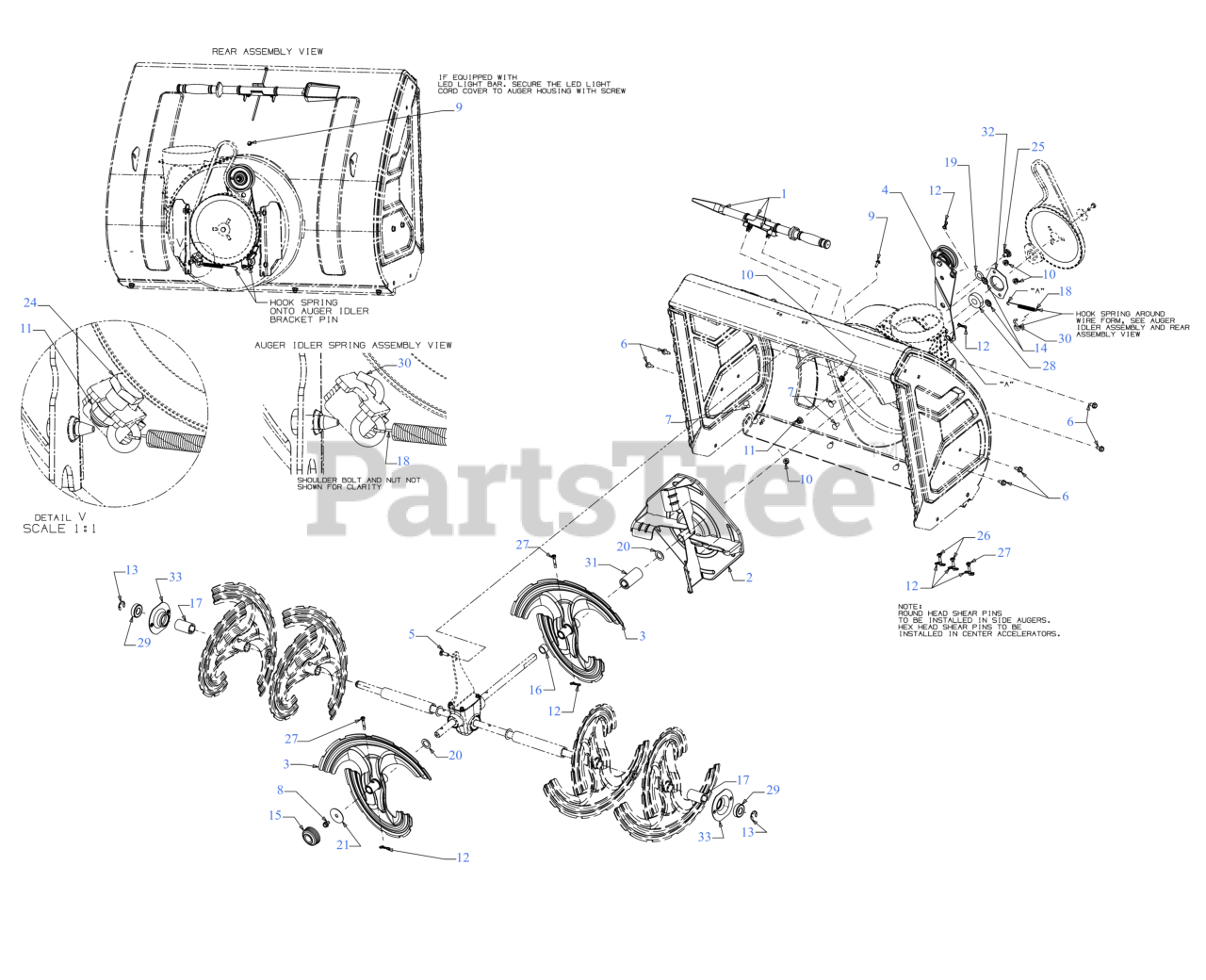

Impeller Parts Diagram

  • Title

1

Cub Cadet 931-2643

CLEANOUT TOOL

$19.99

$

In Stock, only 1 left!

0

1

Cub Cadet 731-11421

CLEANOUT TOOL MOUNTING CLIP

$11.99

$

In Stock, Qty 7

0

2

Cub Cadet 684-05130

4 BLADE IMPELLER 14.5 DIA

Note: (Choose Color When Ordering)

Variations

Cub Cadet 684-05130-0637

IMPLR-4 BLADE 14.5 - POWDER BLACK (0637)

$93.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-05130-0638

IMPLR-4 BLADE 14.5 - MTD/TROY-BILT RED (0638)

$93.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-05130-4028

IMPLR-4 BLADE 14.5 - SEARS YELLOW (4028)

$93.99

$

Usually ships in 3-6 days

0

$75.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-05147

AUGER ACCELERATOR (LH)

Variations

Cub Cadet 684-05147-4021

AUGER-ACCELERATOR - CUB YELLOW 2 (4021)

$87.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

4

IDLER ASSEMBLY

Note: (Components Only)

$

$

Not available

4

Cub Cadet 756-04224

FLAT IDLER PULLEY 2.75 OD

Note: (Not Shown)

$26.99

$

In Stock, Qty 20+

0

4

Cub Cadet 684-05186

AUGER IDLER BRACKET

Note: (Not Shown)

$36.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 790-00795

AUGER IDLER BRACKET (W/BRAKE)

Note: (Not Shown)

$9.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

Note: (Not Shown)

$5.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-04065

NUT

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 14

0

6

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 12

0

9

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 13

0

10

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

13

Cub Cadet 916-0231

E-RING
(Superseded to 716-0231)

$

$

Not available

14

Cub Cadet 926-04012

PUSH NUT
(Superseded to 726-04012)

$

$

Not available

15

Cub Cadet 731-08637A

CAP

$5.49

$

In Stock, Qty 19

0

16

Cub Cadet 731-10404

SPACER

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-11747

SPACER 1.25 x .75 x 2.085

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 732-04460

EXTENSION SPRING .38 OD x 4.59

$5.49

$

In Stock, Qty 20+

0

19

Cub Cadet 936-0167

FLAT WASHER

$6.99

$

In Stock, Qty 7

0

20

Cub Cadet 936-0287

FLAT WASHER .793 ID X1.240X.06
(Superseded to 736-0287)

$

$

Not available

21

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

24

Cub Cadet 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 938-0281

SHOULDER SCREW .625 DIA x .163
(Superseded to 738-0281)

$

$

Not available

26

Cub Cadet 738-05273

SHEAR PIN (.25 x 1.50)

$2.49

$

In Stock, Qty 20+

0

26

Cub Cadet 490-241-C062

Cub Cadet SHEAR PINS (3X SNOW)

Note: Retail Packaged Part

$15.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 738-06654

SHEAR PIN (.25 x 1.5)

$2.49

$

In Stock, Qty 20+

0

27

Cub Cadet 490-241-C062

Cub Cadet SHEAR PINS (3X SNOW)

Note: Retail Packaged Part

$15.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 941-0309

BEARING W/OUT COLLAR

$74.99

$

In Stock, only 2 left!

0

29

Cub Cadet 741-05194

BALL BEARING

$8.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 747-06779

ROD SPRING HOOK

$4.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 750-06274A

SPACER

$18.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 790-00075B

BEARING HOUSING 1.85 ID

$6.49

$

In Stock, only 1 left!

0

33

Cub Cadet 790-00734

BEARING HOUSING 1.59 ID

Note: (Choose Color When Ordering)

Variations

Cub Cadet 790-00734-0606

HSG-BRG 1.59 ID - MAJESTIC ORANGE (0606)

$7.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00734-0691

HSG-BRG 1.59 ID - BLACK JACK (0691)

$8.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00734-4021

HSG-BRG 1.59 ID - CUB YELLOW 2 (4021)

$8.49

$

Usually ships in 3-6 days

0

Cub Cadet 790-00734-4033

HSG-BRG 1.59 ID - FLINT MICA (4033)

$9.49

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0
