3X 30 MAX (31AH8EVU710) - Cub Cadet 3X 30" MAX Snow Thrower (2020) Auger Housing Parts Diagram

3X 30" MAX Snow Thrower

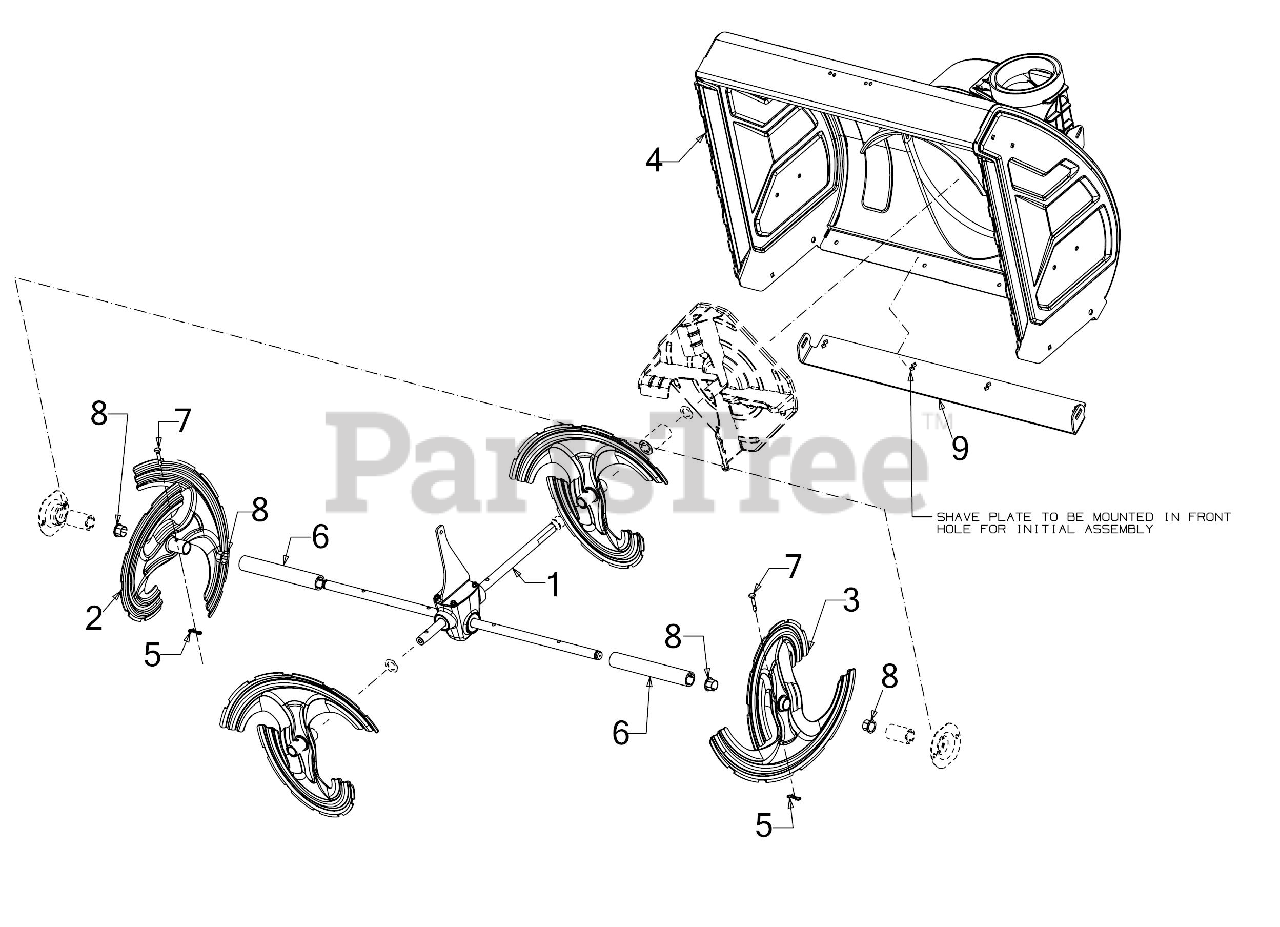

Auger Housing Parts Diagram

  • Title
1

Cub Cadet 918-07221

30" AUGER GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$528.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-05142-0637

14" AUGER SPIRAL ASSEMBLY (RH)

$88.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-05143-0637

14" AUGER SPIRAL ASSEMBLY (LH)

$82.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-05153-4021

30" AUGER HOUSING ASSEMBLY

$759.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

Cub Cadet 731-11753

SPACER 1.25OD X .75ID X 8.15LG

$10.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

8

Cub Cadet 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 790-00550-4021

29.50" SHAVE PLATE
(Superseded to 790-00550-0691)

$66.99

$

In Stock, only 3 left!

0
