3X 28 (31BH55TB710) - Cub Cadet 3X 28" Snow Thrower (2014) 483-SUC Cylinder Head Parts Diagram

3X 28" Snow Thrower

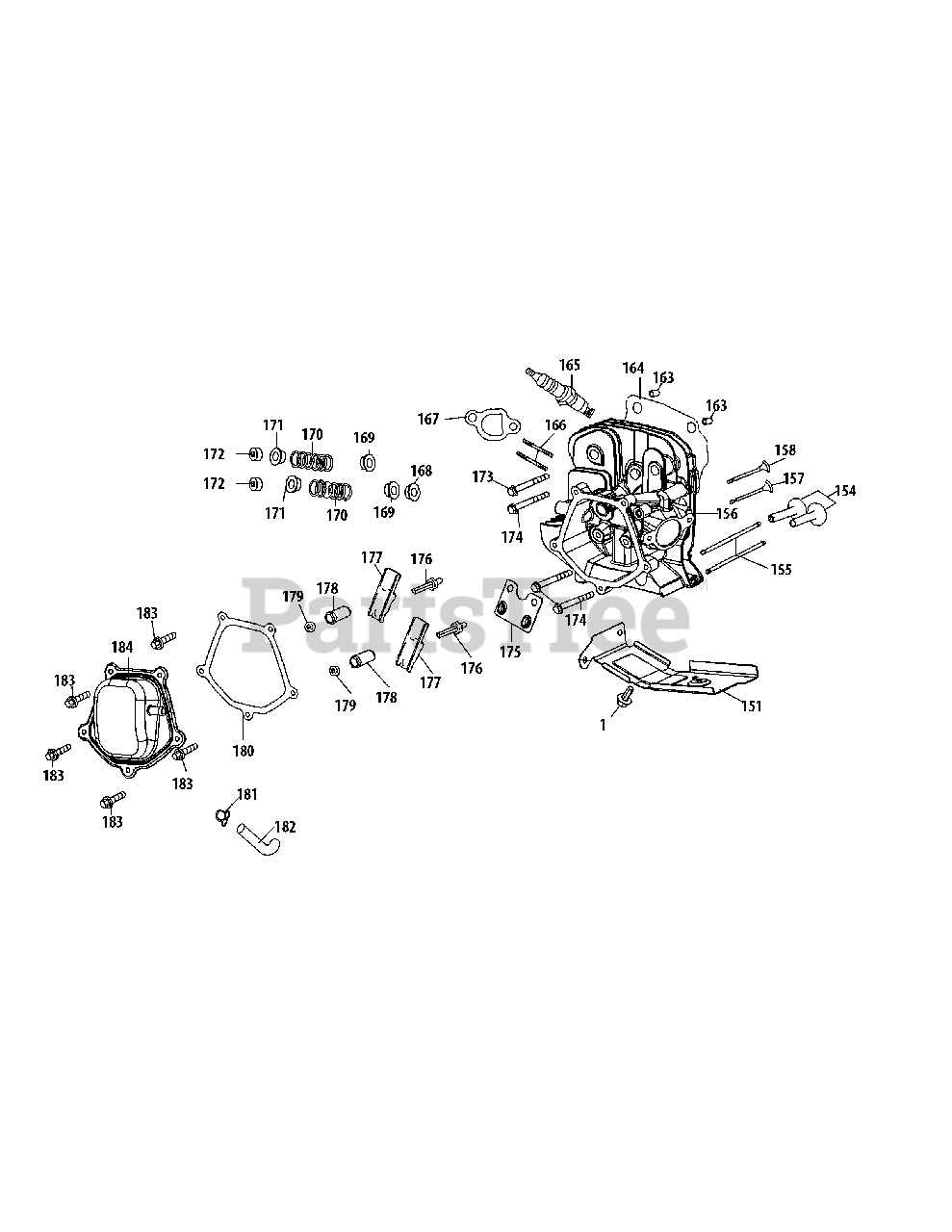

483-SUC Cylinder Head Parts Diagram

  • Title
1

Cub Cadet 710-04915

BOLT M6×12

$4.49

$

In Stock, Qty 19

0

154

Cub Cadet 951-11962

TAPPET
(Superseded to 951-11962A)

$6.99

$

Usually ships in 3-6 days

0

155

Cub Cadet 751-14226

PUSH ROD
(Superseded to 951-14226A)

$11.99

$

Usually ships in 3-6 days

0

156

Cub Cadet 751-14207

CYLINDER HEAD
(Superseded to 951-14207)

$216.99

$

Usually ships in 3-6 days

0

157

Cub Cadet 751-14225

INTAKE VALVE
(Superseded to 951-14225)

$20.99

$

Usually ships in 3-6 days

0

158

Cub Cadet 751-14224

EXHAUST VALVE
(Superseded to 951-14224)

$22.99

$

In Stock, only 1 left!

0

159

Cub Cadet 951-11365

GOVERNOR ARM SHAFT

$5.99

$

Usually ships in 3-6 days

0

160

Cub Cadet 951-11958

GOVERNOR SEAL

$4.49

$

Usually ships in 3-6 days

0

161

Cub Cadet 736-04453

WASHER 8×20×0.8

$6.49

$

Usually ships in 3-6 days

0

162

Cub Cadet 714-04077

COTTER PIN

$6.49

$

In Stock, only 1 left!

0

163

Cub Cadet 715-04097

DOWEL PIN 12×20

$6.49

$

Usually ships in 3-6 days

0

164

Cub Cadet 951-11963

GASKET, CYLINDER HEAD
(Superseded to 951-11963A)

$16.99

$

Usually ships in 3-6 days

0

165

Cub Cadet 951-10292

SPARK PLUG/F6RTC
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

166

Cub Cadet 710-04964

STUD M8×48.5

$6.49

$

In Stock, only 1 left!

0

167

Cub Cadet 951-11212

EXHAUST PIPE GASKET
(Superseded to 951-11212A)

$5.49

$

In Stock, only 2 left!

0

168

Cub Cadet 951-11964

VALVE SEAL (INTAKE)
(Superseded to 951-11964A)

$11.99

$

In Stock, only 1 left!

0

169

Cub Cadet 951-12077

VALVE SPRING RETAINER(INTAKE)
(Superseded to 951-12077A)

$3.99

$

In Stock, only 1 left!

0

170

Cub Cadet 951-12078

VALVE SPRING

$3.99

$

In Stock, only 1 left!

0

171

Cub Cadet 951-12080

VALVE SPRING RETAINER (EXHAUST)

$4.49

$

In Stock, Qty 19

0

172

Cub Cadet 951-12081

EXHAUST LASH CAP
(Superseded to 951-12269)

$6.49

$

In Stock, Qty 6

0

173

Cub Cadet 710-06065

BOLT M10×1.25×65

$6.49

$

Usually ships in 3-6 days

0

174

Cub Cadet 710-06064

BOLT M10×1.25×87

$6.99

$

Usually ships in 3-6 days

0

175

Cub Cadet 951-11965A

PUSH ROD GUIDE
(Superseded to 951-11965B)

$6.99

$

Usually ships in 3-6 days

0

176

Cub Cadet 710-04962

BOLT,PIVOT

$6.49

$

In Stock, only 1 left!

0

177

Cub Cadet 951-11966

ROCKER ARM

$8.49

$

In Stock, only 2 left!

0

178

Cub Cadet 751-11123

ADJUSTING NUT ,VALVE

$10.99

$

In Stock, only 4 left!

0

179

Cub Cadet 751-11124

NUT, PIVOT LOCKING

$9.49

$

In Stock, only 2 left!

0

180

Cub Cadet 951-11967

VALVE COVER GASKET

$16.99

$

Usually ships in 3-6 days

0

181

Cub Cadet 726-04101

BREATHER HOSE CLAMP

$4.49

$

Usually ships in 3-6 days

0

182

Cub Cadet 751-14982

BREATHER HOSE
(Superseded to 951-14982)

$8.49

$

Usually ships in 3-6 days

0

183

Cub Cadet 710-05054

VALVE COVER BOLT

$6.49

$

In Stock, only 2 left!

0

184

Cub Cadet 951-11220

VALVE COVER

$35.99

$

Usually ships in 3-6 days

0
