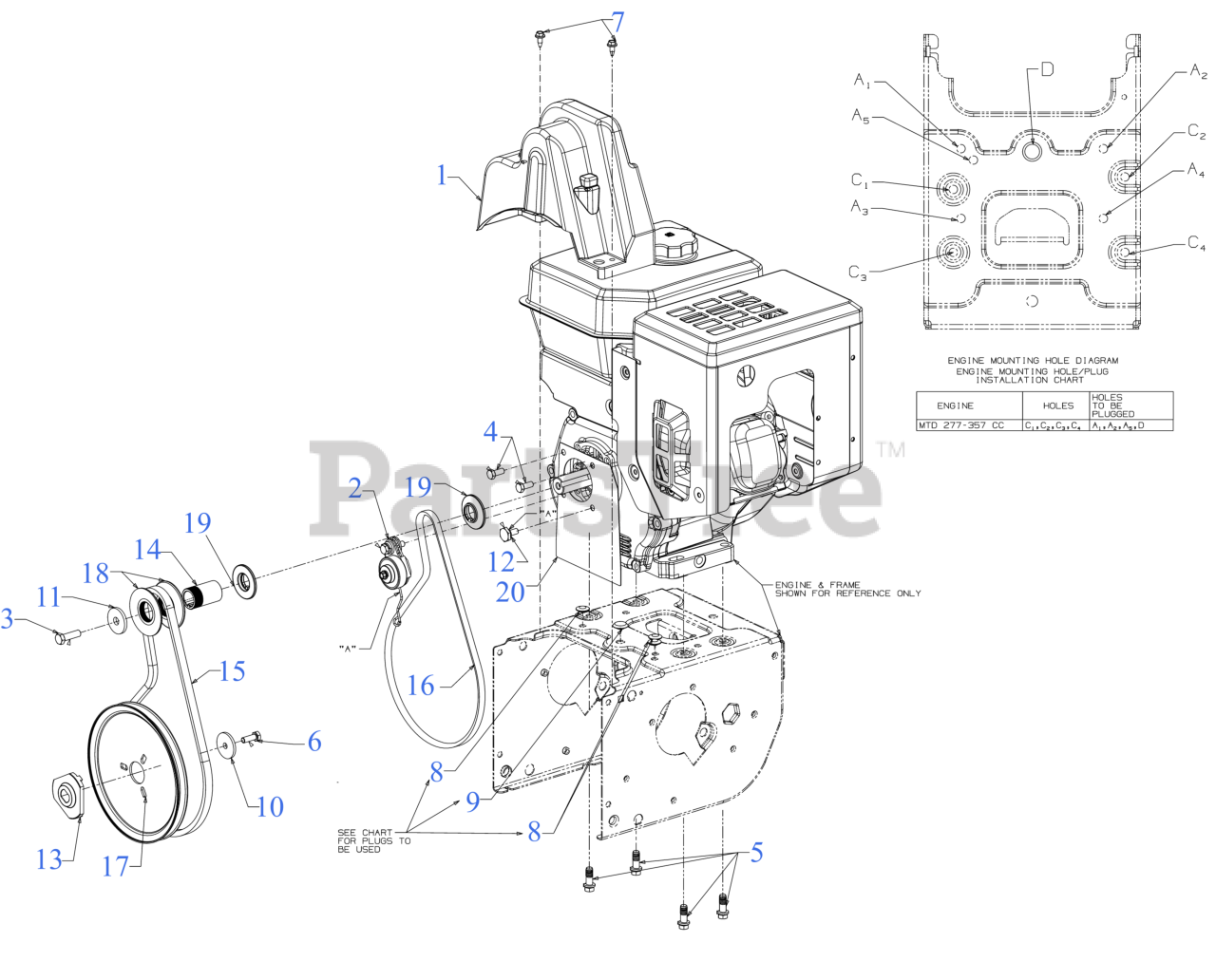

3X 28 (31AH5DVB709) - Cub Cadet 3X 28" Snow Thrower (2021) Engine Drive Parts Diagram

3X 28" Snow Thrower

Engine Drive Parts Diagram

  • Title

1

Cub Cadet 753-09064

BELT COVER SERVICE KIT (631-05322)

$27.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-04261

HEX SCREW #12-16 x .50

Note: (Not Shown)

$6.49

$

In Stock, only 3 left!

0

1

Cub Cadet 790-00689A

BELT KEEPER COVER BRACKET

Note: (Not Shown)

$4.99

$

Usually ships in 3-6 days

0

2

IDLER ASSEMBLY

Note: (See Separate Breakdown)

$

$

Not available

3

Cub Cadet 710-0191

SCREW 3/8-24X1.25

$4.99

$

In Stock, Qty 9

0

4

Cub Cadet 710-0627

SCREW 5/16-24 x .750 GR5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0654A

SCREW 3/8-16 x 1

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1245B

SCREW 5/16-24 x .875 GR5

$8.49

$

In Stock, only 4 left!

0

7

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 735-04099

PLUG-3/8 DIA ID x 3/32

$5.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 735-04100

PLUG-1/2 ID x 3/32

$5.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-0505

FLAT WASHER

$6.49

$

In Stock, Qty 11

0

11

Cub Cadet 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$9.99

$

In Stock, Qty 16

0

12

Cub Cadet 738-04439

SHOULDER SCREW

$3.99

$

In Stock, Qty 5

0

13

Cub Cadet 748-04053A

ADAPTER PULLEY .75 DIA W/DD

$22.99

$

In Stock, only 3 left!

0

14

Cub Cadet 750-04303

PULLEY SPACER

$17.99

$

In Stock, only 4 left!

0

15

Cub Cadet 954-04195A

BELT-.500 x 37.00

$34.99

$

In Stock, Qty 20+

0

16

Cub Cadet 954-04201A

V-BELT 3/8 x 35.68"

$34.99

$

In Stock, Qty 15

0

17

Cub Cadet 756-04109

AUGER PULLEY

$54.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 756-04113

HALF PULLEY 4L V x 2.6 OD
(Superseded to 756-06563)

$3.99

$

In Stock, only 2 left!

0

19

Cub Cadet 756-04252

HALF PULLEY-3/8 V x 1.7160

$6.49

$

In Stock, only 2 left!

0

20

Cub Cadet 790-00332A

ENGINE PLATE (FRONT COVER)

$6.49

$

Usually ships in 3-6 days

0
