3X 26 (31AH5JVAB56) - Cub Cadet 3X 26" Snow Thrower (2023) Impeller Parts Diagram

3X 26" Snow Thrower

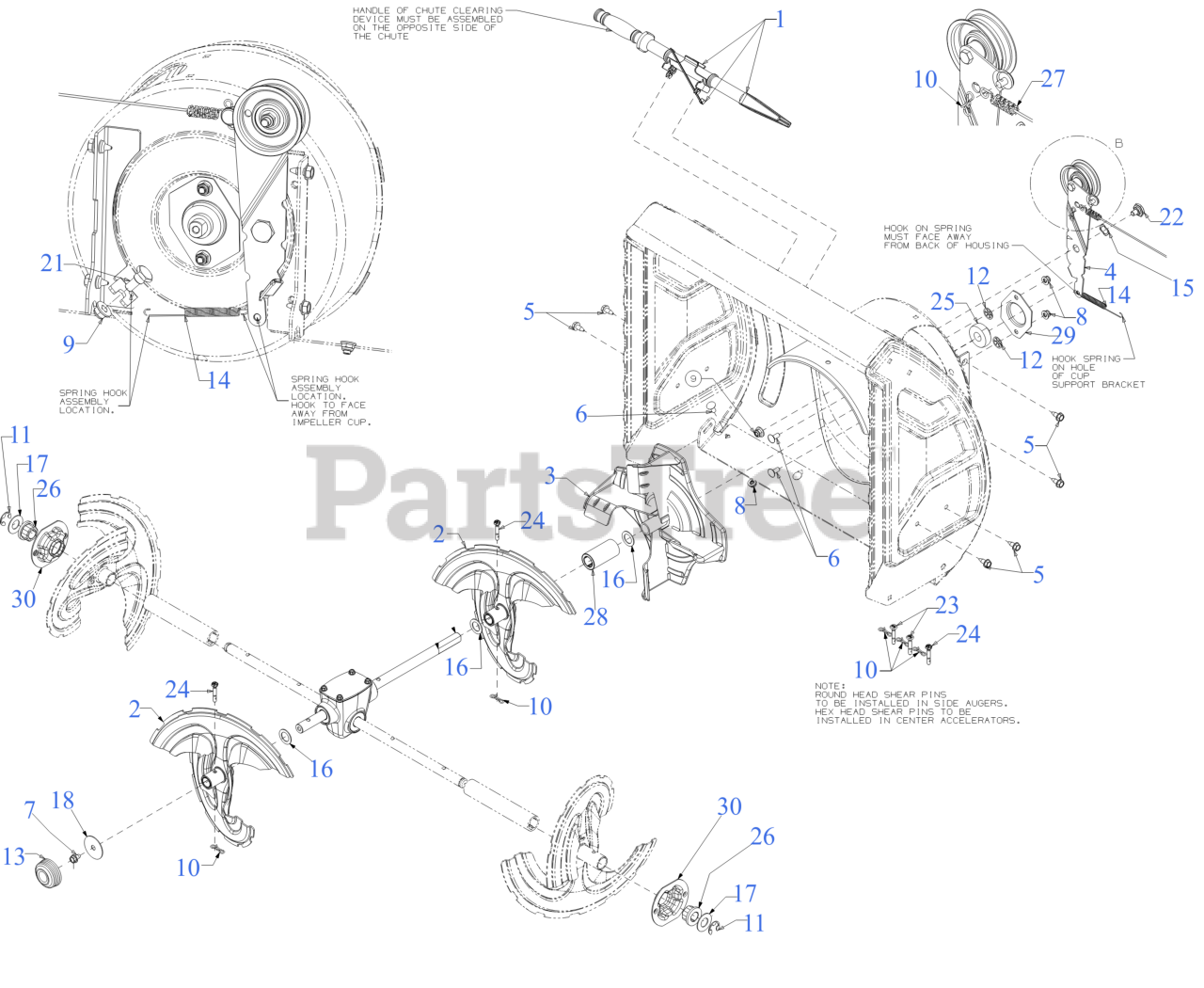

Impeller Parts Diagram

  • Title

1

Cub Cadet 931-2643

CLEANOUT TOOL

$19.99

$

In Stock, Qty 17

0

1

Cub Cadet 731-11421

CLEANOUT TOOL MOUNTING CLIP

$11.99

$

In Stock, Qty 6

0

2

Cub Cadet 684-05015C-0637

ACCELERATOR AUGER W/BUSHNG (POWDER BLACK)

$74.99

$

In Stock, Qty 10

0

3

Cub Cadet 684-05030

IMPELLER ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 684-05030-0637

Impeller Assembly - POWDER BLACK (0637)

$79.99

$

In Stock, Qty 5

0

Cub Cadet 684-05030-0709

IMPLR ASM-12"4BLD - MASTERCRAFT GREEN (0709)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-05030-4033

IMPELLER ASM-12"4BLD - FLINT MICA (4033)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-05030-0638

IMPLR ASM-12"4BLD - MTD/TROY-BILT RED (0638)

$79.99

$

In Stock, Qty 5

0

Cub Cadet 684-05030-0691

IMPLR ASM-12"4BLD - BLACK JACK (0691)

$79.99

$

In Stock, Qty 5

0

Cub Cadet 684-05030-0717

IMPELLER ASM-12"4BLD - SILVER MIST (0717)

$79.99

$

In Stock, Qty 5

0

$64.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-06316

IDLER BRACKET

$

$

Not available

4

Cub Cadet 756-04224

FLAT IDLER PULLEY 2.75 OD

$26.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 18

0

5

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

8

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 18

0

10

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

11

Cub Cadet 716-0231

E-RING

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 726-04012

PUSH ON NUT

$7.49

$

In Stock, Qty 9

0

13

Cub Cadet 731-08637A

CAP

$5.49

$

In Stock, Qty 19

0

14

Cub Cadet 732-04460

EXTENSION SPRING .38 OD x 4.59

$5.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0174

WAVE WASHER .660 ID X.88 OD x .010

$6.99

$

In Stock, Qty 12

0

16

Cub Cadet 736-0287

FLAT WASHER .793ID x 1.24OD x .060

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0445

FLAT WASHER

$4.49

$

In Stock, Qty 13

0

18

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

21

Cub Cadet 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 738-0281

SHOULDER SCREW .625

$10.99

$

In Stock, only 1 left!

0

23

Cub Cadet 738-05273

SHEAR PIN (.25 x 1.50)

$2.49

$

In Stock, Qty 20+

0

24

Cub Cadet 738-06654

SHEAR PIN (.25 x 1.5)

$2.49

$

In Stock, Qty 20+

0

24

Cub Cadet 490-241-C062

Cub Cadet SHEAR PINS (3X SNOW)

$15.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 490-241-Y062

Troy-Bilt SHEAR PINS (3X SNOW)

$16.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 753-10904

KIT-SHEAR PIN 3 STAGE (05273/06654)

$20.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 941-0309

BEARING W/OUT COLLAR

$74.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 741-05041

FLANGE BEARING

$9.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 746P06995

AUGER CABLE 47.48 LG

$13.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 750-06274A

SPACER

$18.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 790-00075B

BEARING HOUSING 1.85 ID

$6.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 790-00534

HEX BREARING HOUSING

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00534-0637

HOUSING-HEX BRG - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

Cub Cadet 790-00534-4021

Hex Bearing Housing - CUB YELLOW 2 (4021)

$13.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0
