3X 26 (31AH55TB710) - Cub Cadet 3X 26" Snow Thrower (2013) Drive System Parts Diagram

3X 26" Snow Thrower

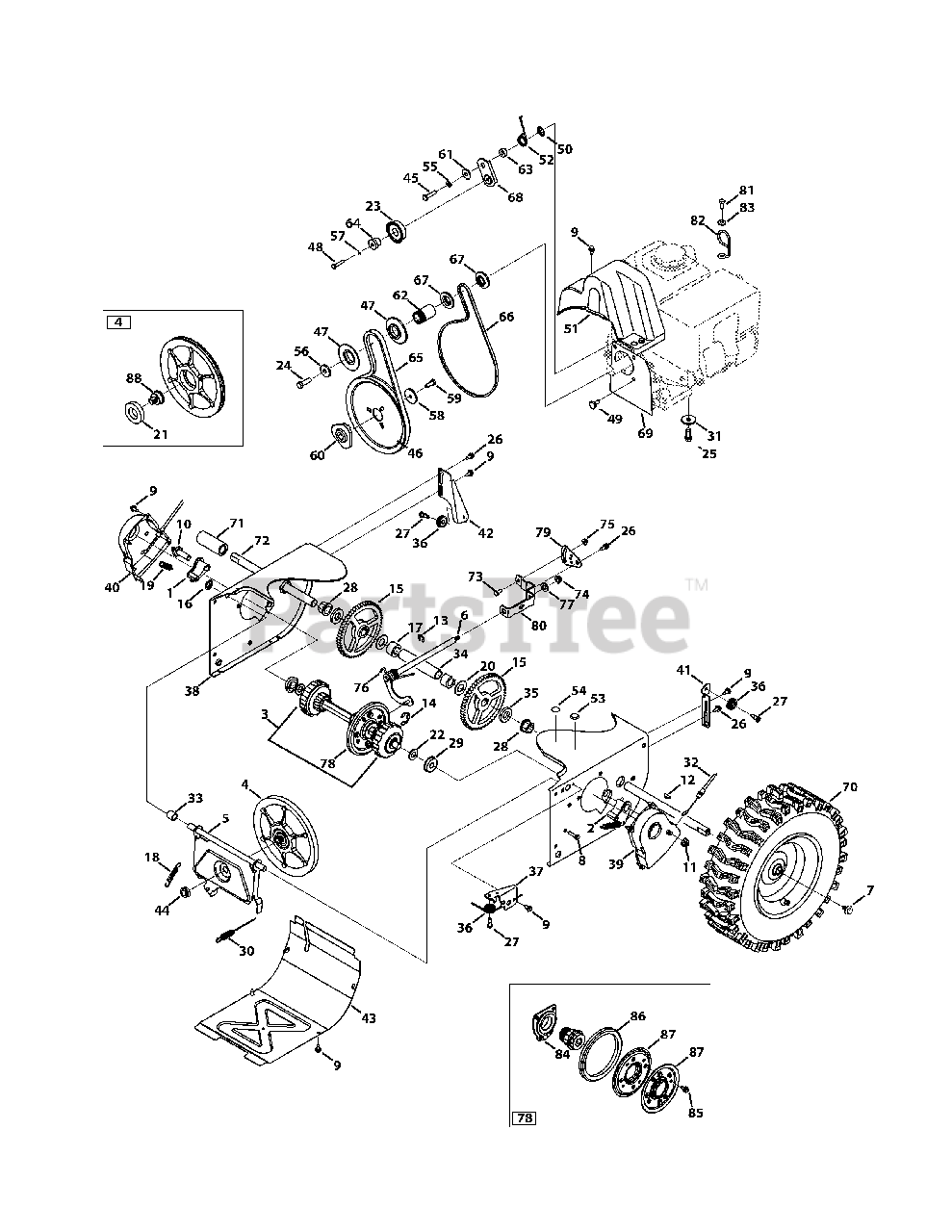

Drive System Parts Diagram

  • Title

1

Cub Cadet 618-06987

Dogg Assembly, RH

$21.99

$

In Stock, only 1 left!

0

2

Cub Cadet 618-06988

Dogg Assembly, LH

$21.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-06072

Drive Shaft Assembly (w/.8125 diam hex shaft)

$444.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-04322A

Drive Shaft Assembly (w/.75 diam hex shaft)

$495.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-06054

Gear, Assembly Plantry Ring:500 w/Brg

Note: (Not Shown)

$57.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-06056

Carrier, Assembly Plantry Ring:500 w/Brg

Note: (Not Shown)

$71.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 711-06117

Shaft, Strbl Drv Hex .812
(Superseded to 711-06117B)

Note: (Not Shown)

$102.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 916-0231

E-Ring
(Superseded to 716-0231)

Note: (Not Shown)

$

$

Not available

3

Cub Cadet 717-05146

Gear, Sun 18T

Note: (Not Shown)

$8.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 717-1209A

Gear,12T

Note: (Not Shown)

$4.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 736-05031

Flat Washer .67 x 1.174 x .02 (4 Used)

Note: (Not Shown)(w/.8125 diam hex shaft)

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 736-0626

Flat Washer .580 x 1.125 x .080 (2 Used)

Note: (Not Shown)(w/.75 diam hex shaft)

$9.49

$

In Stock, only 2 left!

0

3

Cub Cadet 736-04581

Washer, Thrust, .75x 1.25x .031

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 656-04055

Friction Wheel Disc Assembly
(Superseded to 656-04055A)

$59.99

$

In Stock, Qty 20+

0

5

Cub Cadet 684-04154B-0637

Friction Wheel Support Bracket

$41.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 684-04156A

Rod Shift Assembly

$61.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-05339

Screw, 5/16-24 x .750
(Superseded to 710-05339A)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0788

Screw, 1/4-20 x 1.000

$7.49

$

In Stock, only 2 left!

0

9

Cub Cadet 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 711-1268B

Actuator Shaft

$10.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-04065

Nut, Flangelock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 914-0126

Hi-Pro Key, 3/16 x 3/4 DIA
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 12

0

13

Cub Cadet 916-0104

E-Ring

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 716-0136

Retainer Ring

$8.99

$

In Stock, Qty 20+

0

15

Cub Cadet 917-04210

Gear, 56T

$79.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 726-0221

Nut, Speed, .500

$6.49

$

In Stock, only 2 left!

0

17

Cub Cadet 731-05297

Spacer, .76 x .75

$9.99

$

In Stock, only 1 left!

0

18

Cub Cadet 932-0264

Extension Spring, .380 x 2.500

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 732-04345

Extension Spring, .500 x 1.71

$10.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0188

Washer, Flat, .76 x 1.49

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 741-04098

Ball Bearing, 30 x 55 x 13

$21.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 750-06087

Spacer .68 ID x 1.25 OD x .20

Note: (w/.8125 diam hex shaft Only)

$4.49

$

In Stock, only 2 left!

0

23

Cub Cadet 684-04169

Idler Pulley Assembly

$34.99

$

In Stock, Qty 12

0

24

Cub Cadet 710-0191

Hex Head Screw, 3/8-24 x 1.25

$4.99

$

In Stock, Qty 9

0

25

Cub Cadet 710-0654A

Taptite Sems Screw, 3/8-16 x 1.000

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 738-04184A

Screw, Shoulder, .368 x .113 x 1/4-20

$6.99

$

In Stock, Qty 8

0

27

Cub Cadet 738-0924A

Screw, Shoulder, .340 x .335 x 1/4-28

$6.99

$

In Stock, Qty 5

0

28

Cub Cadet 941-0245

Hex Flange Bearing, .75 ID

$9.99

$

In Stock, Qty 20+

0

29

Cub Cadet 941-0563

Ball Bearing 17 x 40 x 12

Note: (w/.8125 diam hex shaft)

$36.99

$

In Stock, Qty 11

0

29

Cub Cadet 741-04076

Ball Bearing .5625 x 1.375 x .4375

Note: (w/.75 diam hex shaft)

$14.99

$

In Stock, Qty 16

0

30

Cub Cadet 946-05067

Drive Clutch Cable

$25.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0320

Washer, Flat, .38 x 1.38

$6.99

$

In Stock, Qty 7

0

32

Cub Cadet 946-0956C

Steering Cable

$23.99

$

In Stock, Qty 20+

0

33

Cub Cadet 748-0190

Spacer, .508 x .75

$6.49

$

In Stock, Qty 11

0

34

Cub Cadet 750-04474

Axle Support Tube

$42.99

$

In Stock, only 1 left!

0

35

Cub Cadet 750-0767

Spacer, Axle

$5.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

37

Cub Cadet 790-00096A-0637

Auger Cable Guide Bracket
(Superseded to 790-00096B-0637)

$9.49

$

In Stock, only 2 left!

0

38

Cub Cadet 790-00183C-4021

Wheel Drive Frame (26" & 28")
(Superseded to 790-00183E-4021)

$106.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 790-00527-4021

Shaft Retainer, LH (w/.8125 diam hex shaft)

$28.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 790-00185-4021

Shaft Retainer, LH( w/.75 diam hex shaft)

$30.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 790-00528-4021

Shaft Retainer, RH (w/.8125 diam hex shaft)

$28.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 790-00186-4021

Shaft Retainer, RH( w/.75 diam hex shaft)

$25.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 790-00206A-0637

Auger Clutch Cable Guide Bracket
(Superseded to 790-00206B)

$8.49

$

In Stock, only 1 left!

0

42

Cub Cadet 790-00207C

Drive Clutch Cable Guide Bracket
(Superseded to 790-03997)

$5.49

$

In Stock, Qty 6

0

43

Cub Cadet 790-00316-4021

Frame Cover

$47.99

$

In Stock, only 4 left!

0

44

Cub Cadet 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

45

Cub Cadet 710-0672

Hex Head Screw, 5/16-24 x 1.25

$4.49

$

In Stock, Qty 18

0

46

Cub Cadet 756-04109

Auger Pulley, 8.1 x .5

$54.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 756-04113

Pulley, Half, 2.600
(Superseded to 756-06563)

$3.99

$

In Stock, only 4 left!

0

48

Cub Cadet 710-0809

Taptite Screw, 1/4-20 x 1.250

$6.99

$

In Stock, Qty 19

0

49

Cub Cadet 738-04439

Shoulder Screw, .500 x .145

$3.99

$

In Stock, Qty 6

0

50

Cub Cadet 926-04012

Nut, Push-On, .25 Dia.
(Superseded to 726-04012)

$

$

Not available

51

Cub Cadet 731-06401

Belt Cover
(Superseded to 753-09065)

$27.99

$

In Stock, Qty 10

0

51

Cub Cadet 747-06336

Belt Guide
(Superseded to 747-06336A)

Note: (not shown)

$

$

Not available

51

Cub Cadet 710-0117A

Hex Head Cap Screw 5/16-24 x 1.00 GR5

Note: (not shown)

$5.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 936-0159

Flat Washer .349 ID x .879 OD x .063
(Superseded to 736-0159)

Note: (not shown)

$

$

Not available

52

Cub Cadet 732-04308A

Spring, Torsion, .850 x .333
(Superseded to 732-04308C)

$5.49

$

In Stock, Qty 20+

0

53

Cub Cadet 735-04099

Plug, 3/8 ID

$5.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 735-04100

Plug, 1/2 ID

$5.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 936-0119

Washer, Lock, 5/16

$4.99

$

In Stock, Qty 20+

0

56

Cub Cadet 736-3082A

Washer, Flat, .45 x 1.5

$9.99

$

In Stock, Qty 16

0

57

Cub Cadet 936-0329

Washer, Lock, 1/4

$4.49

$

In Stock, Qty 11

0

58

Cub Cadet 736-0505

Washer, Flat, .34 x 1.50

$6.49

$

In Stock, Qty 11

0

59

Cub Cadet 710-1245B

Hex Head Screw, 5/16-24 x .875

$8.49

$

In Stock, only 1 left!

0

60

Cub Cadet 748-04053A

Pulley Adapter, .75 DIA

$22.99

$

In Stock, only 3 left!

0

61

Cub Cadet 748-04112B

Spacer, Shoulder, .3175 x .500

$4.49

$

In Stock, Qty 11

0

62

Cub Cadet 750-04303

Spacer, .875 x 1.185

$17.99

$

In Stock, Qty 5

0

63

Cub Cadet 750-04477A

Spacer, .340 x .750

$5.49

$

In Stock, only 4 left!

0

64

Cub Cadet 750-04571

Spacer, Shoulder, .260 x .785

$6.99

$

In Stock, only 3 left!

0

65

Cub Cadet 954-04195A

Belt, .500 x 37

$34.99

$

In Stock, Qty 20+

0

66

Cub Cadet 954-04201A

Belt, 3/8 x 35.68

$34.99

$

In Stock, Qty 20+

0

67

Cub Cadet 756-04252

Pulley, Half, 3/8 x 1.7160

$6.49

$

In Stock, only 3 left!

0

68

Cub Cadet 790-00208D

Drive Idler Bracket

$8.99

$

In Stock, Qty 12

0

69

Cub Cadet 790-00332-0637

Cover Plate
(Superseded to 790-00332A)

$6.49

$

Usually ships in 3-6 days

0

70

Cub Cadet 634-04136-0931

Wheel, LH (28" & 30")

$283.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 634-04137-0931

Wheel, RH (28" & 30")

$268.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 731-04873

Spacer, 1.25 x .75 x 3.00

$10.99

$

In Stock, Qty 13

0

72

Cub Cadet 938-04180

Axle, .75 x 11.12

$70.99

$

In Stock, only 2 left!

0

73

Cub Cadet 710-0751

Hex Head Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

74

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

75

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

76

Cub Cadet 732-04311A

Spring, Torsion, .750 x .968

$10.99

$

In Stock, only 3 left!

0

77

Cub Cadet 936-3015

Washer, Flat, .469 x .875 x .105

$4.49

$

In Stock, Qty 20+

0

78

Cub Cadet 684-04153C

Friction Wheel Assembly

$101.99

$

In Stock, Qty 20+

0

79

Cub Cadet 790-00217A-0637

Speed Selector Pivot Bracket
(Superseded to 790P01117)

Note: (If Equipped)

$53.99

$

In Stock, only 1 left!

0

80

Cub Cadet 790-00218A-0637

Speed Selector Shift Bracket (STD)
(Superseded to 790-00218A)

$47.99

$

In Stock, only 4 left!

0

81

Cub Cadet 710-04022

Hex Head Screw, 1.25 x 20
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 732-04677

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 936-0264

Washer, Flat, .330 x .630

$6.99

$

In Stock, only 3 left!

0

84

Cub Cadet 618-0063A

Bearing Assembly, Friction Wheel

$92.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 710-04484

Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

86

Cub Cadet 935-04054

Friction Wheel, 5.5 OD
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

87

Cub Cadet 790-00174C

Friction Wheel Plate

$14.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 738-04164A

Friction Pin, Disc Bearing

$24.99

$

Usually ships in 3-6 days

0
