3X 24 HD (31BH54SK710) - Cub Cadet 3X 24" HD Snow Thrower (2016) Auger Housing Parts Diagram

3X 24" HD Snow Thrower

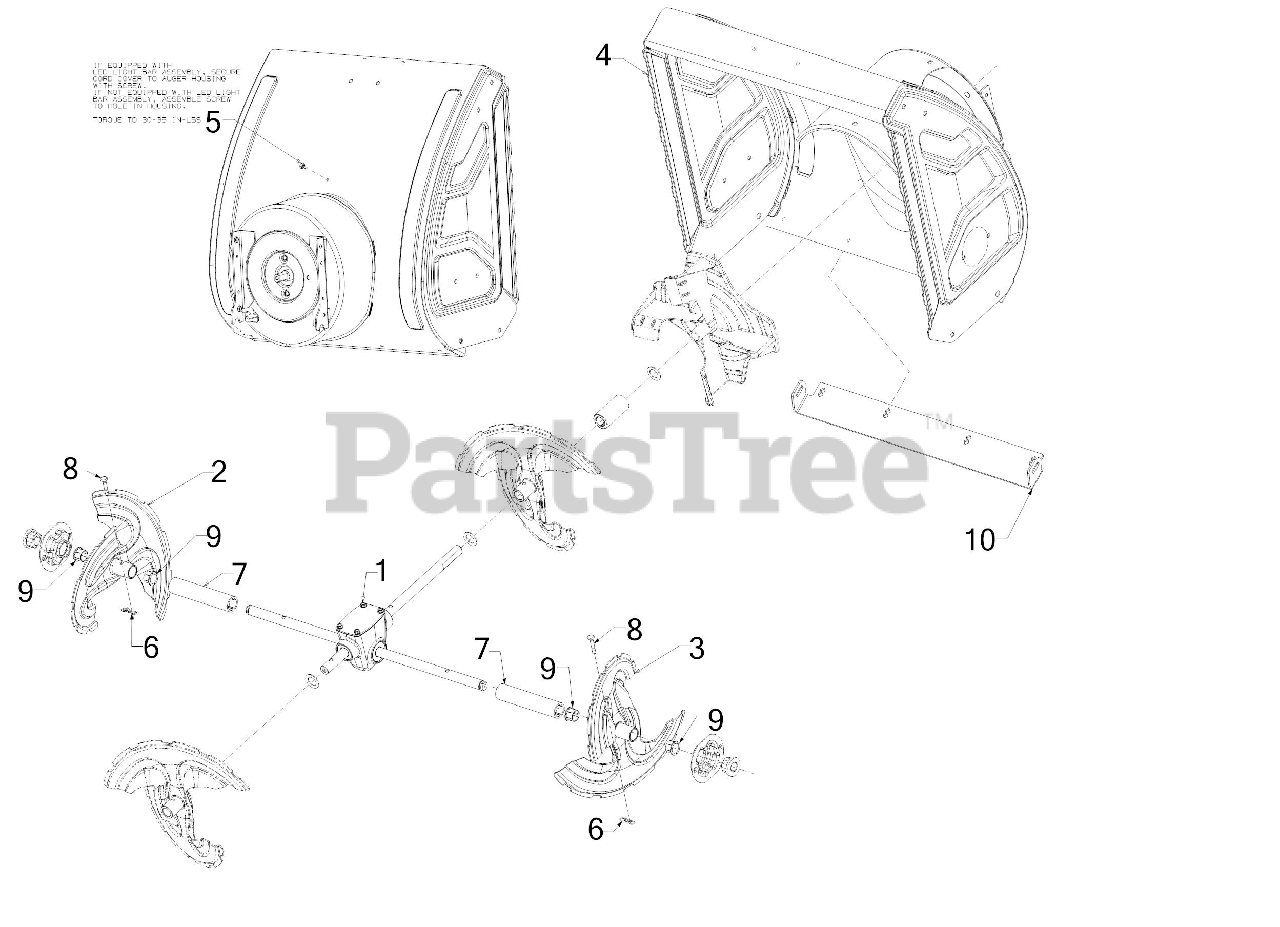

Auger Housing Parts Diagram

  • Title
1

Cub Cadet 918-07027

24" AUGER GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$358.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-05064-0637

SPIRAL ASSEMBLY (RH)

$77.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-05065-0637

SPIRAL ASSEMBLY (LH)

$84.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-05191-4021

24" HD LED AUGER HOUSING ASSEMBLY
(Superseded to 684-05191A-4021)

$322.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 10

0

6

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

$8.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

9

Cub Cadet 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 790-00652-4021

SHAVE PLATE 23.50

$62.99

$

Usually ships in 3-6 days

0
