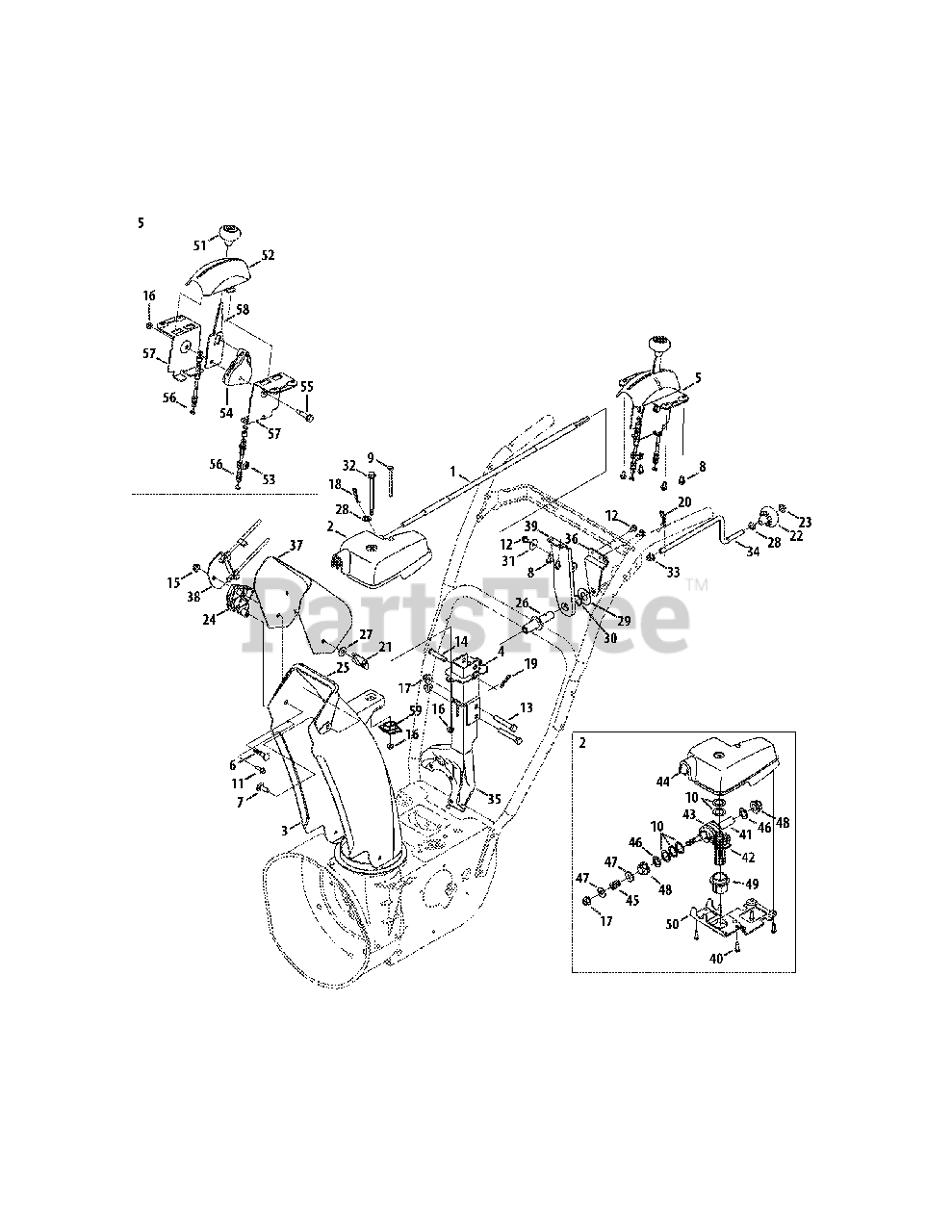

Chute Control (Steel) Parts Diagram

  • Title
1

Cub Cadet 911-05044

Control Assembly
(Superseded to 911-05044B)

$148.99

$

In Stock, only 2 left!

0

2

Cub Cadet 918-04933B

Chute Rotation Gearbox

$93.99

$

In Stock, only 1 left!

0

3

Cub Cadet 684-05062-4021

Chute, Lower
(Superseded to 684-05062A-4021)

$107.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-05035-4021

Support Bracket Extension
(Superseded to 684-05035-0637)

$32.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 984-05044

Chute Control, 2-Way

$103.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0262

Bolt, Carriage, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 13

0

7

Cub Cadet 710-0276

Bolt, Carriage, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 14

0

8

Cub Cadet 710-04187A

Screw, HL, 1/4-15 x 0.50

$6.99

$

In Stock, Qty 7

0

9

Cub Cadet 710-04370

Hex Head Screw, 1/4-20 x 3.00

$4.49

$

In Stock, only 1 left!

0

10

Cub Cadet 736-04337

Shim Washer, .632 x 1.00 x .010

$3.99

$

In Stock, Qty 15

0

11

Cub Cadet 710-0895

Screw, HL, 1/4-15 x 0.750

$6.49

$

In Stock, Qty 5

0

12

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3011

Hex Cap Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

14

Cub Cadet 711-04469A

Clevis Pin, 3/8 x 1.87

$5.99

$

In Stock, only 4 left!

0

15

Cub Cadet 712-04063

Nut, Flangelock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04064

Nut, Flangelock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

19

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

20

Cub Cadet 714-3020

Internal Cotter Pin

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 920-0284

Wing Knob, 5/16-18
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

$6.99

$

In Stock, only 2 left!

0

23

Cub Cadet 926-0100

Push Cap, 3/8
(Superseded to 726-0100)

$

$

Not available

24

Cub Cadet 731-09535

Chute Cable Guide

$8.49

$

In Stock, Qty 7

0

25

Cub Cadet 731-09539A

Chute Adapter

$25.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 731-09643

Chute Control Rod Coupling

$7.49

$

In Stock, only 2 left!

0

27

Cub Cadet 936-0159

Washer, Flat, .349 x .879
(Superseded to 736-0159)

$

$

Not available

28

Cub Cadet 936-0185

Flat Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, only 3 left!

0

29

Cub Cadet 936-0316

Flat Washer, .78 x 1.59 x .06
(Superseded to 736-0316)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0621

Washer, Wave, .785 x 1.0 x .012

$17.99

$

In Stock, only 1 left!

0

31

Cub Cadet 736-3092

Flat Washer, .265 x 1.00 x .030

$3.99

$

In Stock, Qty 9

0

32

Cub Cadet 738-04367

Screw, Shoulder, .312 x 3.5 x 1/4-20

$4.99

$

In Stock, only 1 left!

0

33

Cub Cadet 941-0475

Plastic Bushing, .38

$4.49

$

In Stock, Qty 20+

0

34

$21.99

$

In Stock, only 2 left!

0

35

Cub Cadet 790-00330A-4021

Chute Support Bracket
(Superseded to 790-00330C-4021)

$32.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 790-00341-0637

Support Rod Bracket

$16.99

$

In Stock, only 1 left!

0

37

$39.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 790-00565-0637

Cable bracket
(Superseded to 790-00565A-0637)

$14.99

$

In Stock, only 2 left!

0

39

Cub Cadet 790-00576-0637

Chute Control Support Bracket

$40.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 710-04373A

Screw, 12-16 x .75

$4.49

$

In Stock, Qty 15

0

41

$22.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 717-04667B

Gear Assembly

$10.99

$

In Stock, Qty 5

0

43

Cub Cadet 717-04672

Worm
(Superseded to 717-04672A)

$9.49

$

In Stock, only 4 left!

0

44

$18.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 732-04756

Compression Spring, .39 x .60 x .88

$3.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 736-0290

Flat Washer, .625 x 1.0 x .067

$6.99

$

In Stock, only 3 left!

0

47

Cub Cadet 736-3072

Flat Washer, .380 x .93 x .110

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 941-0225

Hex Bearing

$7.49

$

In Stock, Qty 20+

0

49

Cub Cadet 741-04388A

Flange Bearing

$7.49

$

Usually ships in 3-6 days

0

50

$28.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 720-04039

Shift Knob

$10.99

$

In Stock, only 2 left!

0

52

Cub Cadet 731-05307

Cover, Tilt Cover

$11.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 731-07868

Cable Clip

$3.49

$

In Stock, only 2 left!

0

54

Cub Cadet 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

55

Cub Cadet 738-04185

Screw, Shoulder, .31 x .995:1/4-20

$8.49

$

Usually ships in 3-6 days

0

56

Cub Cadet 946-05091

Cable, Chute Tilt

$53.99

$

In Stock, only 3 left!

0

57

Cub Cadet 790-00200A-0637

Bracket, Mounting

$18.99

$

Usually ships in 3-6 days

0

58

$14.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 748-05057

Chute Gear Adapter

$11.99

$

In Stock, only 1 left!

0
