3X 24 (31AH54TC713) - Cub Cadet 3X 24" Snow Thrower (2014) 478-SUC Cylinder Head Parts Diagram

3X 24" Snow Thrower

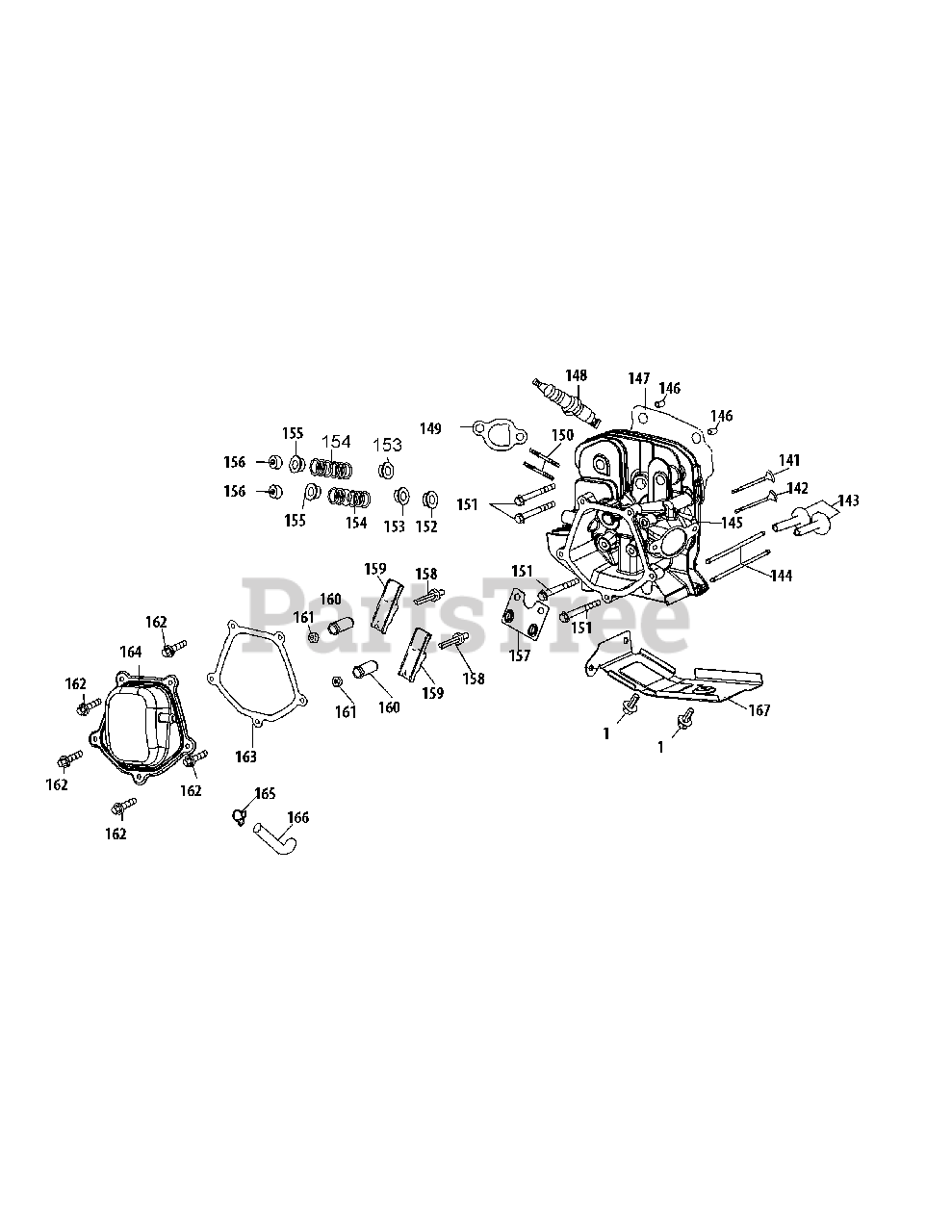

478-SUC Cylinder Head Parts Diagram

  • Title
1

Cub Cadet 710-04915

BOLT M6×12

$4.49

$

In Stock, Qty 20+

0

141

Cub Cadet 751-14204

EXHAUST VALVE
(Superseded to 951-14204)

$21.99

$

Usually ships in 3-6 days

0

142

Cub Cadet 751-14203

INTAKE VALVE
(Superseded to 951-14203)

$20.99

$

Usually ships in 3-6 days

0

143

Cub Cadet 951-11962

TAPPET
(Superseded to 951-11962A)

$6.99

$

Usually ships in 3-6 days

0

144

Cub Cadet 751-14205

PUSH ROD
(Superseded to 951-14205)

$11.99

$

Usually ships in 3-6 days

0

145

Cub Cadet 751-14206

CYLINDER HEAD
(Superseded to 951-14206)

$216.99

$

Usually ships in 3-6 days

0

146

Cub Cadet 715-04097

DOWEL PIN 12×20

$6.49

$

Usually ships in 3-6 days

0

147

Cub Cadet 951-12076

GASKET, CYLINDER HEAD

$12.99

$

Usually ships in 3-6 days

0

148

Cub Cadet 951-10292

SPARK PLUG/F6RTC
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

149

Cub Cadet 951-11212

EXHAUST PIPE GASKET
(Superseded to 951-11212A)

$5.49

$

In Stock, only 2 left!

0

150

Cub Cadet 710-04964

STUD M8×48.5

$6.49

$

In Stock, only 1 left!

0

151

Cub Cadet 710-04965

BOLT M10×1.25×80

$6.99

$

In Stock, only 1 left!

0

152

Cub Cadet 951-11964

VALVE SEAL (INTAKE)
(Superseded to 951-11964A)

$11.99

$

In Stock, only 2 left!

0

153

Cub Cadet 951-12077

VALVE SPRING RETAINER(INTAKE)
(Superseded to 951-12077A)

$3.99

$

In Stock, only 2 left!

0

154

Cub Cadet 951-12078

VALVE SPRING

$3.99

$

In Stock, only 1 left!

0

155

Cub Cadet 951-12080

VALVE SPRING RETAINER

$4.49

$

In Stock, Qty 20+

0

156

Cub Cadet 951-12081

EXHAUST LASH CAP
(Superseded to 951-12269)

$6.49

$

In Stock, Qty 6

0

157

Cub Cadet 951-11965A

PUSH ROD GUIDE
(Superseded to 951-11965B)

$6.99

$

Usually ships in 3-6 days

0

158

Cub Cadet 710-04962

BOLT, PIVOT

$6.49

$

In Stock, only 1 left!

0

159

Cub Cadet 951-11966

ROCKER ARM

$8.49

$

In Stock, only 2 left!

0

160

Cub Cadet 751-11123

ADJUSTING NUT ,VALVE

$10.99

$

In Stock, only 4 left!

0

161

Cub Cadet 751-11124

NUT, PIVOT LOCKING

$9.49

$

In Stock, only 2 left!

0

162

Cub Cadet 710-05054

VALVE COVER BOLT

$6.49

$

In Stock, only 2 left!

0

163

Cub Cadet 951-11967

VALVE COVER GASKET

$16.99

$

Usually ships in 3-6 days

0

164

Cub Cadet 951-11220

VALVE COVER

$35.99

$

Usually ships in 3-6 days

0

165

Cub Cadet 726-04101

BREATHER HOSE CLAMP

$4.49

$

Usually ships in 3-6 days

0

166

Cub Cadet 751-14982

BREATHER HOSE
(Superseded to 951-14982)

$8.49

$

Usually ships in 3-6 days

0

167

Cub Cadet 951-11180

AIR SHIELD

$24.99

$

Usually ships in 3-6 days

0
