3W953A (9540-2) - Generac 3,500 Watt Portable Generator Portable Generator Cradle Parts Diagram

3,500 Watt Portable Generator

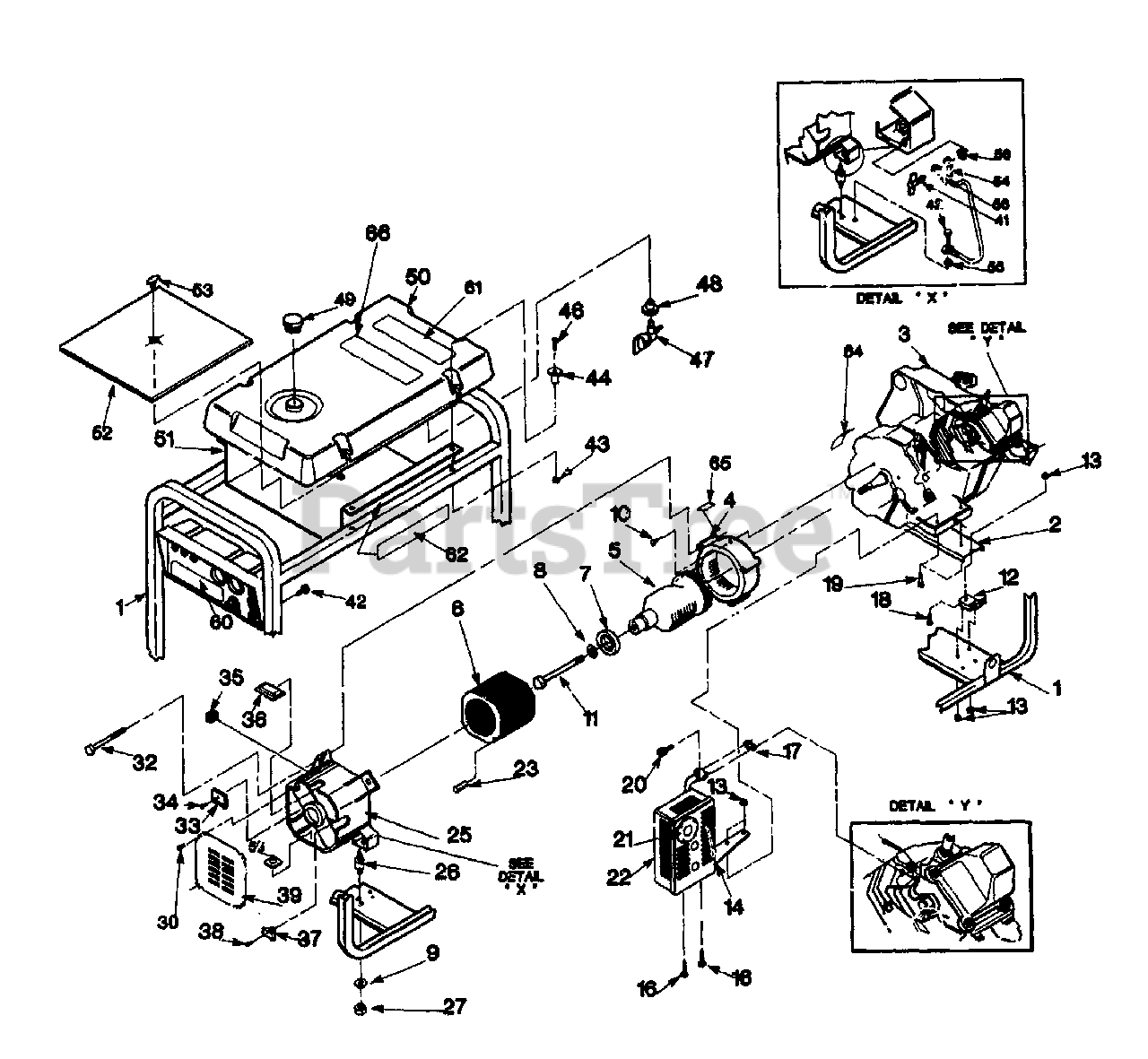

Portable Generator Cradle Parts Diagram

  • Title

1

Briggs & Stratton 93199

Portable generator cradle
(Superseded to M197027GS)

$362.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 84021

Engine support
(Superseded to B84021GS)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 94274

6.5 HP engine

$

$

Currently unavailable

4

Briggs & Stratton 66365

Engine adaptor housing
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84141

Rotor assembly

$

$

Currently unavailable

6

Briggs & Stratton 83540

Stator assembly

$

$

Currently unavailable

7

Briggs & Stratton 65791

Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67451

M8 Flatwasher

$

$

Currently unavailable

9

Briggs & Stratton 22129

M8 Lockwasher
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307

5/16"-24 x 3/4" Capscrew
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 47480

5/16"-24 x 7" Capscrew
(Superseded to 5047480B)

$205.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84508

45ø Vibration mount
(Superseded to 84508GS)

$22.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 52858

M8 Locking nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 83208

Bracket muffler
(Superseded to 83208GS)

$21.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 86309

M6-1.0 12mm Capscrew

$

$

Currently unavailable

17

Briggs & Stratton 80314

Exhaust gasket
(Superseded to 80314GS)

$9.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 70644

M8-1.25 x 20mm Screw
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 84346

M8 x 35mm Screw
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 40976

M8-1.25 x 20 Capscrew

$

$

Not available

21

Briggs & Stratton 83083

Spark arrestor screen
(Superseded to 83083GS)

$9.49

$

In Stock, only 2 left!

0

22

Briggs & Stratton 83071

Muffler
(Superseded to 83071GS)

$

$

Not available

23

Briggs & Stratton 81917

M4 x 10mm Roll pin
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66825B

Rear bearing carrier

$

$

Currently unavailable

26

Briggs & Stratton 85652

Vibration mount
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

27

Briggs & Stratton 45771

M8 Hex nut

$

$

Not available

30

Briggs & Stratton 74908

M5-0.8 x 10 Capscrew
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 86308

M6-1.0 x 115 Capscrew
(Superseded to 86308GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 65795

Battery charge rectifier
(Superseded to 65795GS)

$

$

Not available

34

Briggs & Stratton 66849A

M5-0.7 x 20 Capscrew
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 67022

Rubber grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84132

Drive module
(Superseded to 84132GS)

$126.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 66386

Brush holder assembly
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

38

Briggs & Stratton 66849

M5-0.7 x 16mm Screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 67025

Bearing carrier cover

$

$

Currently unavailable

40

Briggs & Stratton 22769

#10 Internal SP washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 86494

M6-1.0 x 16 Wing Screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 86292

Self-drill Capscrew #10-16
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

43

Briggs & Stratton 77395

M6 Flange lock nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 83465

Tank grommet
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

46

Briggs & Stratton 78831A

M6-1.0 x 60 Capscrew

$

$

Currently unavailable

47

Briggs & Stratton 80270

Tank valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 78299

Plastic tank bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

49

Briggs & Stratton 85134

Fuel cap
(Superseded to B4363GS)

$41.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 83311

Fuel Tank

$

$

Currently unavailable

51

Briggs & Stratton 84042

Heat shield

$

$

Currently unavailable

52

Briggs & Stratton 84687

#2 1/4" thick Insulation
(Superseded to 84687GS)

$22.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 85000

Insulation clip
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

54

14353621

Ground wire

$

$

Not available

55

Briggs & Stratton 23762

#10 Shakeproof washer
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 26850

M6 Shakeproof washer

$

$

Not available

58

Briggs & Stratton 57593

Cable tie mount
(Superseded to 57593GS)

$5.49

$

Usually ships in 2-12 days

0

60

UNKNOWN

$

$

Not available

61

Briggs & Stratton 92892

Decal-danger

$

$

Currently unavailable

62

Briggs & Stratton 94211

Decal-heat shield

$

$

Currently unavailable

64

Briggs & Stratton 88252

Decal-alternator data

$

$

Not available

65

Briggs & Stratton 81886

Decal-STA-BIL
(Superseded to 81886GS)

$12.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 93826

Decal-Start Instruction
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0
