3W953A (9540-2) - Generac 3,500 Watt Portable Generator Control Panel Parts Diagram

3,500 Watt Portable Generator

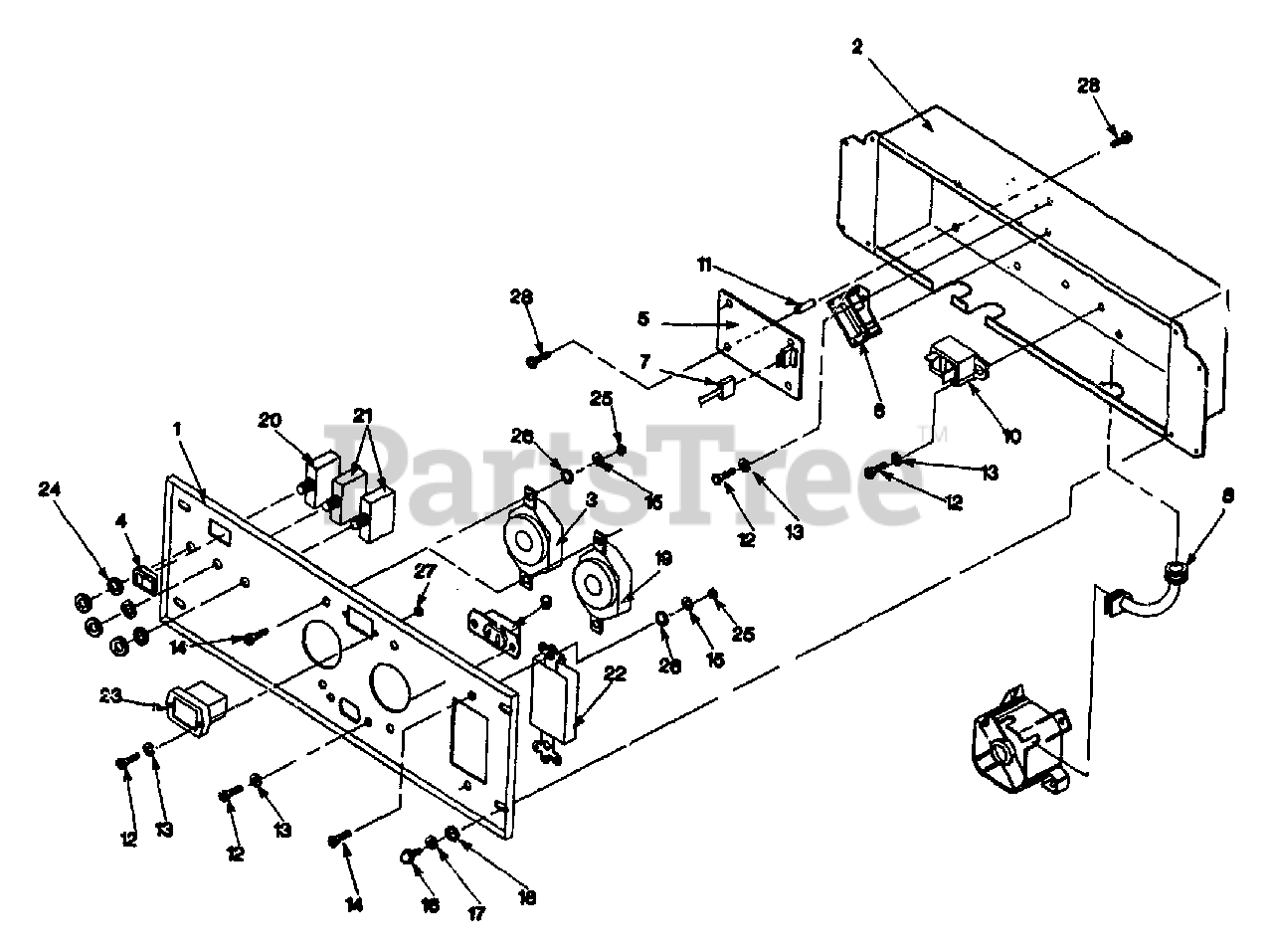

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 88243

Control panel

$

$

Not available

2

Briggs & Stratton 87782

Control box

$

$

Currently unavailable

3

Briggs & Stratton 68867

120 volts, 20 amp AC outlet
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 87968

Idle control switch
(Superseded to 87968GS)

$7.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 83970

System control board
(Superseded to 83970GS)

$

$

Not available

6

Briggs & Stratton 84028

Idle control transformer
(Superseded to 84028GS)

$47.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 84335

Wire harness
(Superseded to 84335GS)

$39.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 84134

Rubber grommet connector
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 68822

12 volts DC outlet

$

$

Currently unavailable

10

Briggs & Stratton 87962

12 volts, 10 amp Auto reset breaker
(Superseded to 87962GS)

$29.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 64525

3/4" Hex standoff

$

$

Currently unavailable

12

Briggs & Stratton 43181

M3-0.5 x 10mm Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 43182

M3 Lockwasher
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

15

Briggs & Stratton 22264

M4 Lockwasher

$

$

Not available

16

Briggs & Stratton 52749

M5-0.8 12mm Screw

$

$

Currently unavailable

17

Briggs & Stratton 49226

M5 Lockwasher
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 23897

M5 Flatwasher
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 68868

120 volts, 30 amp Receptacle
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

20

75207A

30 amp Circuit breaker

$

$

Not available

21

Briggs & Stratton 75027

20 amp Circuit breaker
(Superseded to 7075027YP)

$16.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 80409

120 volts, 20 amp GFCI outlet
(Superseded to 80409GS)

$102.99

$

In Stock, Qty 5

0

23

Briggs & Stratton 77604

Hourmeter
(Superseded to 77604GS)

$112.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 82881

Internal lockwasher
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 51715

M4-0.7 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 43180

M4 Flatwasher
(Superseded to 5043180B)

$54.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 51714

M3-0.5 Hex nut
(Superseded to 51714GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 64526

#6-32 x 3/8" Screw

$

$

Not available
