3W795B (9578-1) - Generac 4,000 Watt Portable Generator Generator Replacement Parts (10/95) Parts Diagram

4,000 Watt Portable Generator

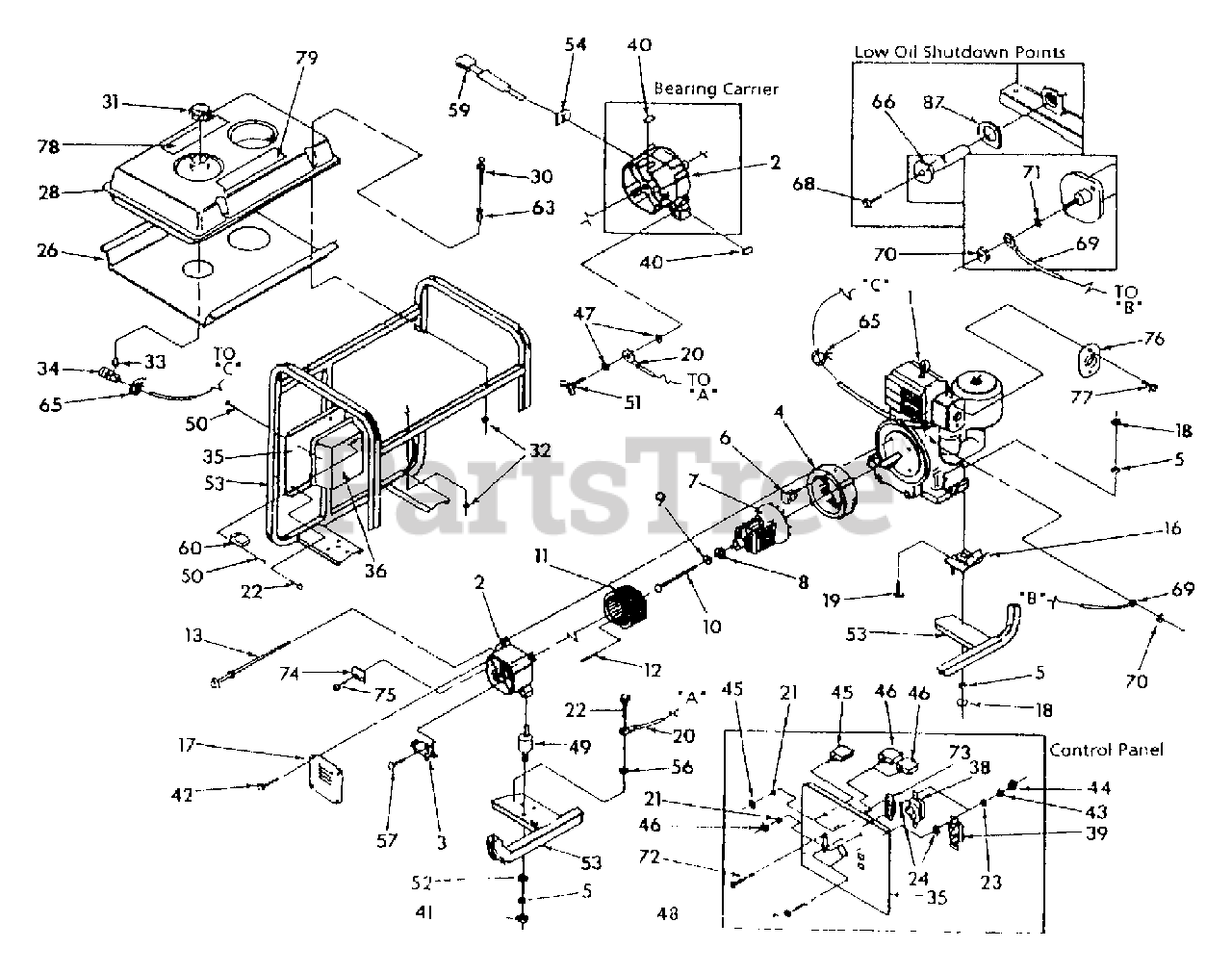

Generator Replacement Parts (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 94102

Briggs & Stratton engine
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 66825C

Rear bearing carrier
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 91825

Brush/bridge rectifier assembly

$

$

Not available

4

Briggs & Stratton 66365G

Adaptor housing
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22129

M8 Lockwasher
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 86307

5/16"-24 x 3/4" Hex screw
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 91836G

Rotor assembly

$

$

Currently unavailable

8

Briggs & Stratton 65791

Ball bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 67451

Washer, special

$

$

Currently unavailable

10

Briggs & Stratton 36180

Rotor bolt
(Superseded to 36180GS)

$11.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 95343G

Stator assembly
(Superseded to 95343GGS)

$933.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 81917

M4 x 10mm Roll pin
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 86308

Stator bolt
(Superseded to 86308GS)

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 70642

450 Vibration mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 67025

Bearing carrier cover

$

$

Currently unavailable

18

Briggs & Stratton 52858

M8-1.25 Flange lock nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 76222

MB-1.25 Flange lock nut
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

20

14353621

Ground wire

$

$

Not available

21

Briggs & Stratton 82881

Internal lock washer
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 86292

#10 Self-drilling screw
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 38150

#8 Flatwasher
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 23365

#8 Lockwasher (serrated)
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 84324

Heat shield
(Superseded to 84324GS)

$108.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 77374

5 gallon Plastic fuel tank

$

$

Currently unavailable

30

Briggs & Stratton 78831B

M6 x 60mm Capscrew (black)
(Superseded to 78831BGS)

$

$

Not available

31

Briggs & Stratton 84582

Fuel tank cap

$

$

Currently unavailable

32

Briggs & Stratton 77395

M6 Hex lock nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 78299

Plastic tank bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

34

Briggs & Stratton 78298

Plastic tank valve
(Superseded to 7078298YP)

$192.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 83988

Control panel
(Superseded to 83988GS)

$

$

Not available

36

Briggs & Stratton 81919

Control panel back (plastic)
(Superseded to 81919GS)

$136.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 68867

120/240 volts Locking type outlet
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 68759

120 volts, 20 amp Duplex outlet
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 84242

RBC Grommet
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 25244

5/16"-18 Hex nut
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 74908

M5 08 x 10mm Hex screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 22264

#8 Lockwasher

$

$

Not available

44

Briggs & Stratton 51715

M4-0.7 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 75207B

10 amp Circuit breaker
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 75207

20 amp Circuit breaker
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 6

0

47

Briggs & Stratton 26850

1/4" Shakeproof washer

$

$

Not available

48

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

49

Briggs & Stratton 82857

Rubber mount
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 82308

Self-tapping screw
(Superseded to 82308GS)

$2.99

$

In Stock, only 2 left!

0

51

Briggs & Stratton 86494

M6 x 16mm Wing screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 22145

M8 Flatwasher

$

$

Not available

53

Briggs & Stratton 94385

Cradle
(Superseded to 690335)

$4.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 67022

Rubber grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 22769

#10 Shakeproof washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 66849

M5-0.8 x 15mm Screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 22695

6-pin Connector (male)
(Superseded to 22695GS)

$6.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 22694

6-pin Connector
(Superseded to 22694GS)

$5.99

$

In Stock, only 1 left!

0

63

Briggs & Stratton 83465

Tank mounting grommet
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

65

Briggs & Stratton 48031C

1/4" Hose clamp

$

$

Not available

66

Briggs & Stratton 88977

Low oil shutdown Switch

$

$

Currently unavailable

67

Briggs & Stratton 91841

Low oil shutdown gasket

$

$

Not available

68

Briggs & Stratton 32713

#10-32 x 5/8" Screw
(Superseded to 32713GS)

$3.49

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 91842A

Low oil shutdown wire
(Superseded to 91842AGS)

$6.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 22471

#8-32 Nut
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 23365

#8 Shakeproof washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 43181

M3-0.5 x 10mm Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 66822

12 VDC Outlet assembly
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418

$11.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 65795

Battery charge rectifier
(Superseded to 65795GS)

$

$

Not available

75

Briggs & Stratton 66849A

M5 Taptite screw
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 77601

Screen, spark arrester
(Superseded to 77601GS)

$32.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 77836A

Deflector mounting screw
(Superseded to 77836AGS)

$1.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 92982

Danger decal
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

79

Briggs & Stratton 93826

Starting instructions decal
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

87

UNKNOWN

$

$

Not available
